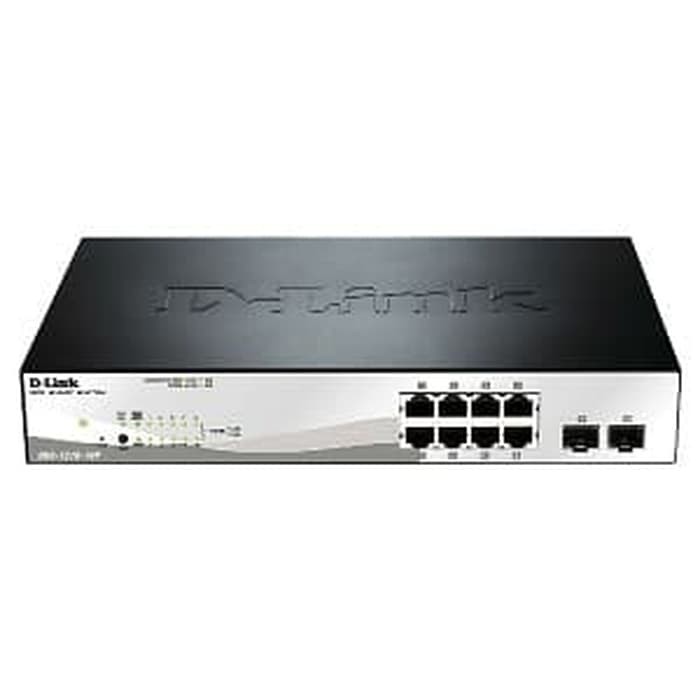

Dlink DGS-1210-10 Switch 8 Port Gigabit + 2 SFP WebSmart

Detail Dlink DGS-1210-10 Switch 8 Port Gigabit + 2 SFP WebSmart

DGS-1210-10 8 10/100/1000BASE-T PORTS + 2 SFP PORTS WEB SMART SWITCH

Port Standards & Functions IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
Auto-negotiation
IEEE 802.3x Flow Control
Number of Ports DGS-1210-10P: 8 PoE 10/100/1000 Mbps, 2 combo 10/100/1000BASE-T/SFP
DGS-1210-16: 12 10/100/1000 Mbps, 4 combo 10/100/1000BASE-T/SFP
DGS-1210-24: 20 10/100/1000 Mbps, 4 combo 10/100/1000BASE-T/SFP
DGS-1210-48: 44 10/100/1000 Mbps, 4 combo 10/100/1000BASE-T/SFP
Network Cables UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex Full/half duplex for 10/100 Mbps speeds
Full duplex for Gigabit speed
Media Interface Exchange Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity DGS-1210-10P: 20 Gbps
DGS-1210-16: 32 Gbps
DGS-1210-24: 48 Gbps
DGS-1210-48: 96 Gbps
Transmission Method Store-and-forward
MAC Address Table 8 K entries per device
MAC Address Update Up to 256 static MAC entries
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate DGS-1210-10P: 14.88 Mpps
DGS-1210-16: 23.8 Mpps
DGS-1210-24: 35.7 Mpps
DGS-1210-48: 71.4 Mpps
RAM Buffer DGS-1210-10P: 512 KB per device
DGS-1210-16: 512 KB per device
DGS-1210-24: 512 KB per device
DGS-1210-48: 1 MB per device
PoE Standard 802.3af & Pre-standard 802.3at
PoE Capable Ports Ports 1 to 8 : 15.4 W or 30 W
Max. 30 W on 2 10/100/1000 Mbps ports
Max. 15.4 W on 4 10/100/1000 Mbps ports
Max. 7.5 W on 8 10/100/1000 Mbps ports
PoE Power Budget Max. 78 W
