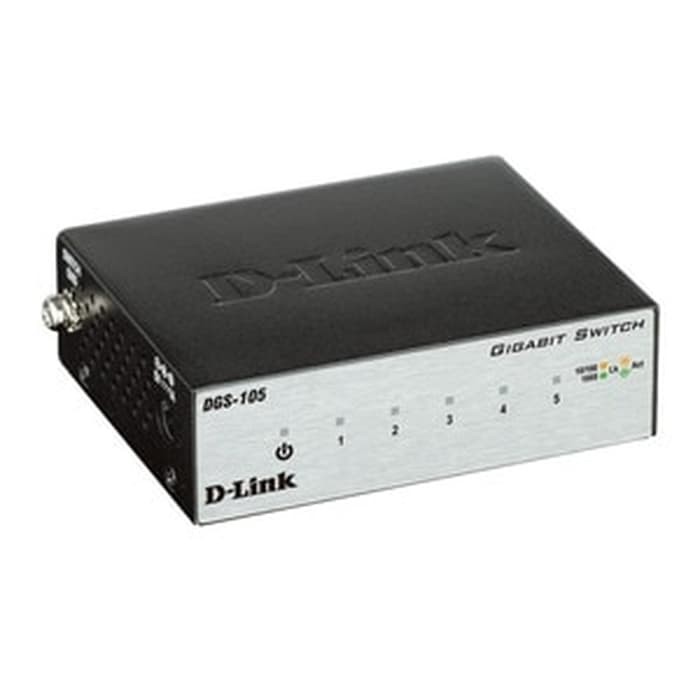

DLink DGS-105GL Switch 5-Port Gigabit Metal DGS-105 N

Detail DLink DGS-105GL Switch 5-Port Gigabit Metal DGS-105 N

Key Features
Built-in D-Link Green Technology
Inexpensive Gigabit solution for Home/SOHO
Five 10/100/1000 Mbps Gigabit ports
10 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Supports 9,000 Byte Jumbo Frames
Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Supports Cable Diagnostics Function
RoHS compliant
Plug-and-play installation

Standards
IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol
CSMA/CD

Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)

Topology
Star

Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange
Auto MDI/MDIX adjustment for all ports

LED Indicators
Per port: Link/Activity/Speed
Per device: Power

Transmission Method
Store-and-forward

MAC Address Table
2K

MAC Address Learning
Automatic update

Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
