DIY Papan Modul Pcb Bms Pelindung Charger Baterai Li-ion Lithium 3s 20a 12V 18650

Detail DIY Papan Modul Pcb Bms Pelindung Charger Baterai Li-ion Lithium 3s 20a 12V 18650

3S 20A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board 12.6V Cell 64x20x3.4mm Module


Features:
Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

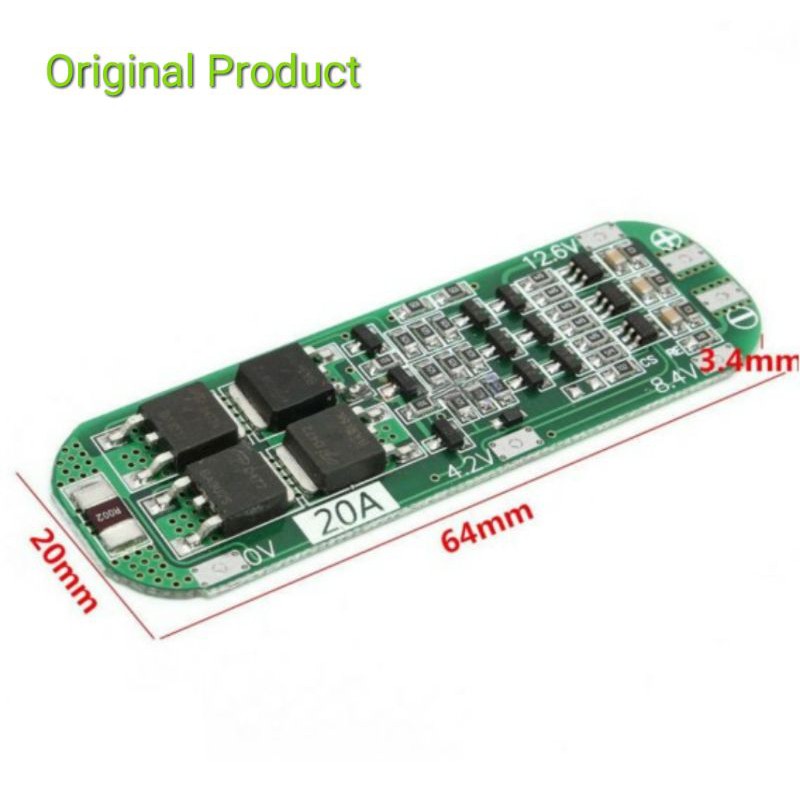

Product Size: 64mmx20mmx3.4mm
Material:Metal
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power / charging power: 252W



Precautions:

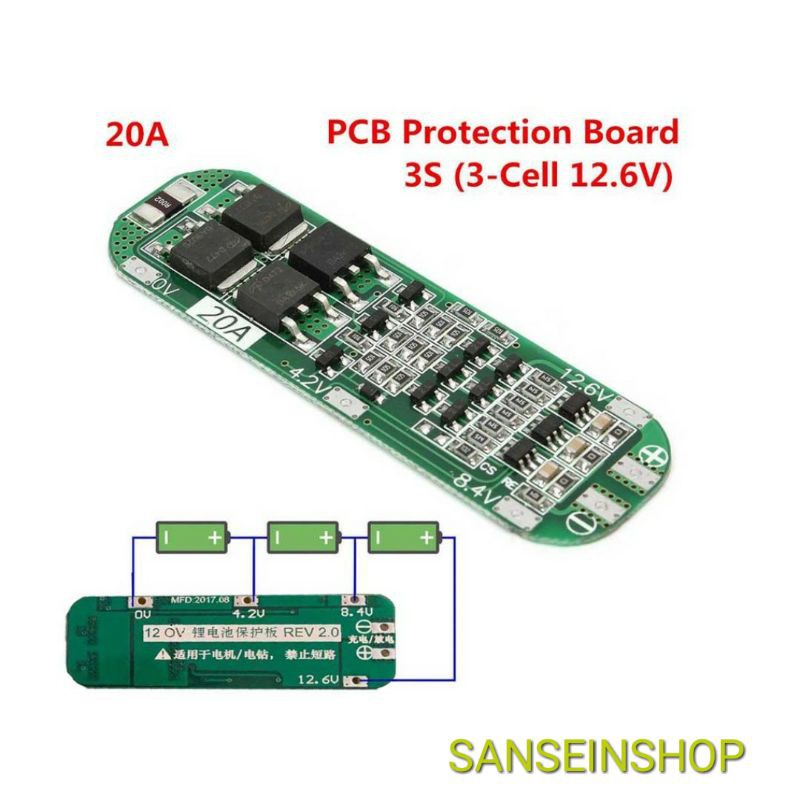

-Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
-After connection,it need to first charge activation, then will have the output.

Attention:
Do not mix the good battery and poor battery to use.
The internal resistance of 3 battery capacity are closer will be better.
Please buyers know the professional knowledge of this module before buying



Package Included:
1 x PCB Protection Board



Note:
-Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
-Please allow 1-3CM differs due to manual measurement.
-Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
