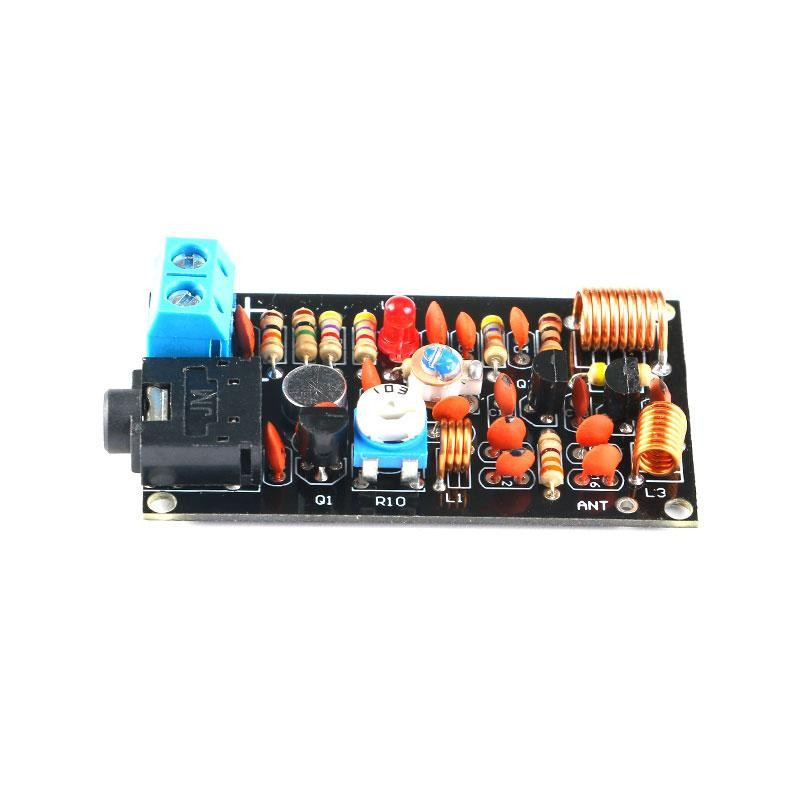

DIY KIT Pemancar Radio FM Wireless Mic 85-115Mhz Transmitter

Detail DIY KIT Pemancar Radio FM Wireless Mic 85-115Mhz Transmitter

Module DIY KIT Pemancar Radio FM 100-1000M
Module belum dirakit (masih pretelan)
Cocok untuk praktek belajar elektronika/menyolder
Semua komponen sudah disertakan (hanya perlu menambah battery)

Kit Model: FM Transmitter
Operating voltage :3-9V DC
-Bisa menggunakan 2~6x battery AA
-Bisa menggunakan 1~2x battery lithium/18650 3.7-4.2V
-Bisa menggunakan Adaptor Hp 5V/Adaptor 9V

Jarak pancar 100M-1000M tergantung power supply, Antena, Area/Lokasi dan kelembapan udara.

Product parameters:

Working voltage: 3V-9V, current: 33MA-29MA
Working frequency: FM band 85-115MHZ
Receiving equipment: FM radio / mobile phone with FM radio, etc.
Audio response: 20HZ-15KHZ
RF power: -2dbm-15dbm
RF output impedance: 50 ohms Second harmonic: >-40db
Transmission distance: 100 meters - 1000 meters

Installation Notes
R 330 ohm R7 1Pc
R 1M R3 1Pc
R 100 ohm R8 1Pc
R 10K R4, R5 2Pcs
R 4.7K R1R2 2Pcs
R 47K R6, R9 2Pcs
C 102 C3, C4 2Pcs
C 15P C10, C14 2Pcs
C 47P C15, C16 2Pcs
C 30P C11, C12 2Pcs
C 104 C1, C2, C5, C6, C7 5Pcs
C 201P C13 1Pc
C 24P C9 1Pc
Microphone MIC 1Pc
Led 1Pc
4T hollow coil L1 1Pc
9T hollow coil L2 1Pc
8T hollow coil L3 1Pc
5-pin audio jack J1 1Pc
Ceramic adjustable capacitor C8 1Pc
Adjustable resistance R10 1Pc
Power socket J2 1Pc
TR 9014 Q1 1Pc
TR 9018 Q2, Q3 2Pcs
