Detail DISPLAY COMBO VOLT AMPER METER AMMETER DC 0-100V/10A RED AND BLUE LED DISPLAY DC 4.5 - 30V POWER
Info sebelum membeli, mohon d perhatikan 🙏🏻 Minimal Pembelian Rp 40.000,- dalam 1 transaksi di luar ongkos kirim (boleh di gabung dengan pembelian produk lainnya) jika pemesanan di bawah Rp 40.000,- mohon maaf transaksi tidak akan kami proses 🙏🏻Operating voltage:DC 4.5 ~ 30V

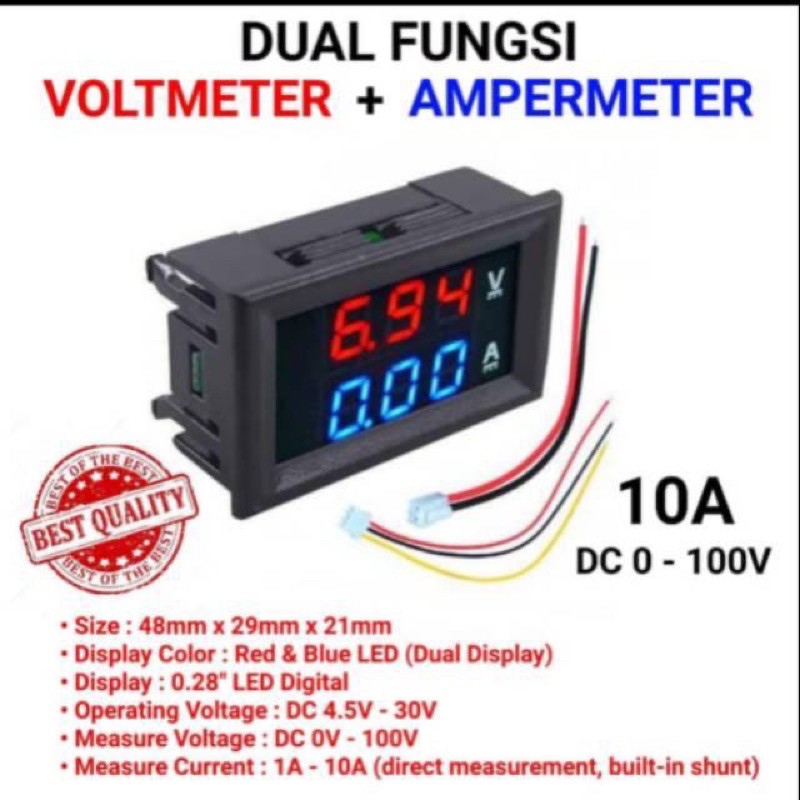

Measure voltage: DC 0 ~ 100V
Minimum resolution(V): 0.1V
Measure current :10A (no need external shunt)
Minimum resolution(A): 0.01A
Operating current: <20mA
Display: three 0.28" LED digital tube
Display color: Red and Blue (two-color display)

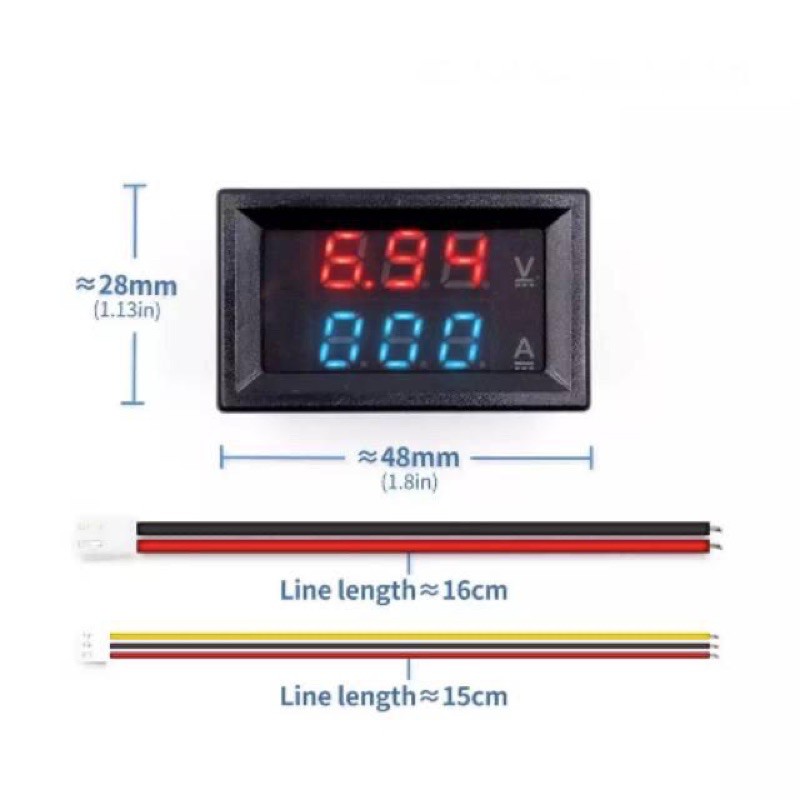

Dimensions: 48 x 29 x 21mm
Mounting cutout: 45.5 x 26.1mm
Refresh rate: about 500mS / times
Measure accuracy: 1% (± 1 digit)
Operating temperature: -10 to 65° c
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 to 106 kPa
Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement
