Detail Disc Ceramic Capacitor 82pF 1KV J ±5% NP0 Pitch=5mm RoHS Taiwan NPO

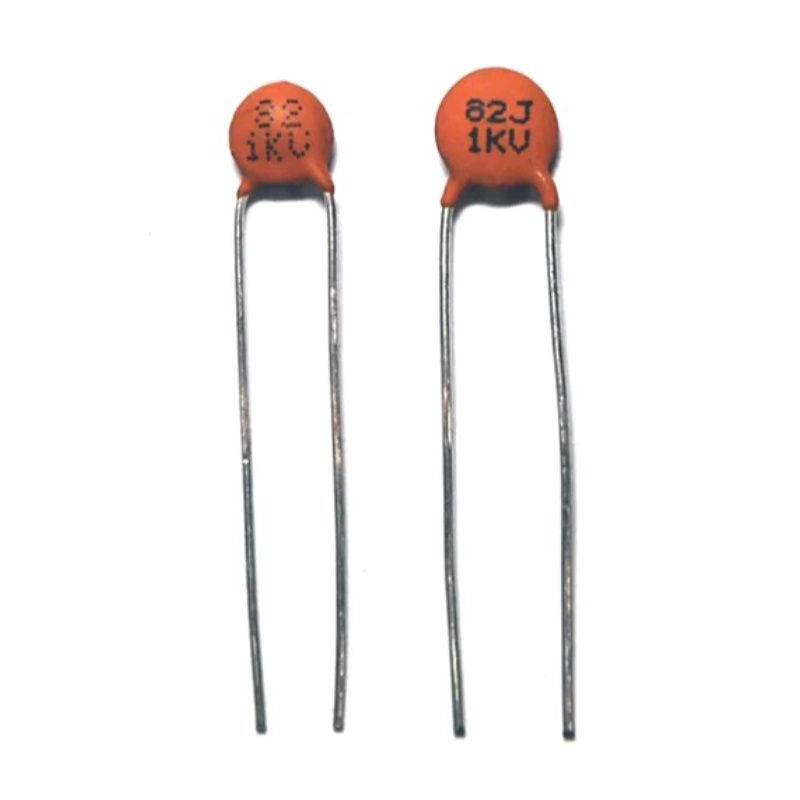

Disc Ceramic Capacitor



 82pF 1KV J ±5% NP0

For high frequency

High Quality and Reliability

Capacitance tolerance : ±5%, J

Operating temperature : -55~+125℃

Insulation resistance >= 10,000MΩ

Temperature Characteristic(TC) : NP0(-25°C~-85°C Within 0±60ppm/°C)

Lead length >= 25mm

Lead pitch = 5mm, ±0.5mm

Lead size = φ0.5mm, Dia
