Detail Disc Ceramic Capacitor 5.6pF 1KV +-0.25pF NP0 Pitch=5mm RoHS Taiwan NPO Matching imp Diamond F23H

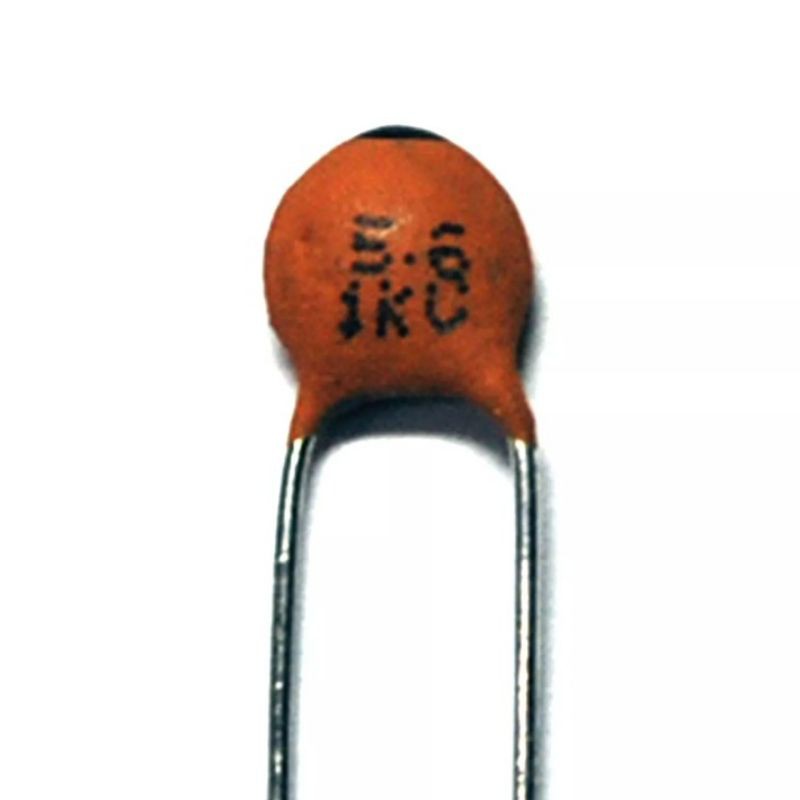

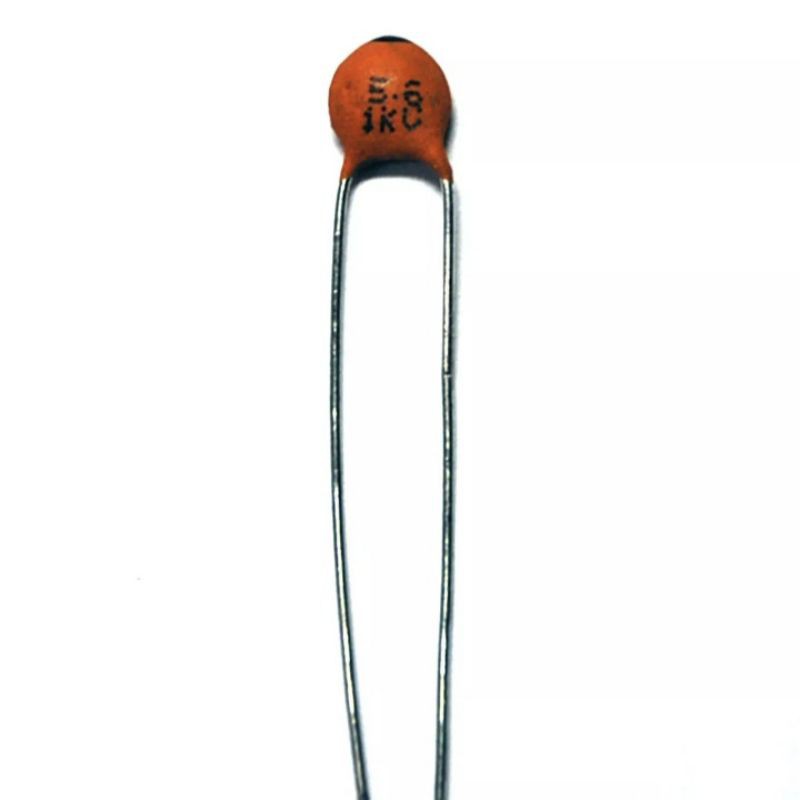

Disc Ceramic Capacitor



 5.6pF 1KV +/-0.25pF, NP0

For high frequency

High Quality and Reliability

Capacitance tolerance : +/-0.25pF

Operating temperature : -55~+125℃

Insulation resistance >= 10,000MΩ

Temperature Characteristic(TC): NP0(-25°C~-85°C Within 0±60ppm/°C)

Quality Factor (Q):400+20*Cr Min.(Cr≦30pF) at 25°C with 1±0.1MHz and 3Vrms max

Lead length = 7.5mm or 25mm (shipping depends on stock, no special notice to you)

Lead pitch = 4.5~5.5mm

Lead size = φ0.5mm, Dia

Outside dimension : φ5x2.4mm, Dia xT

RoHS

LT made in Taiwan
