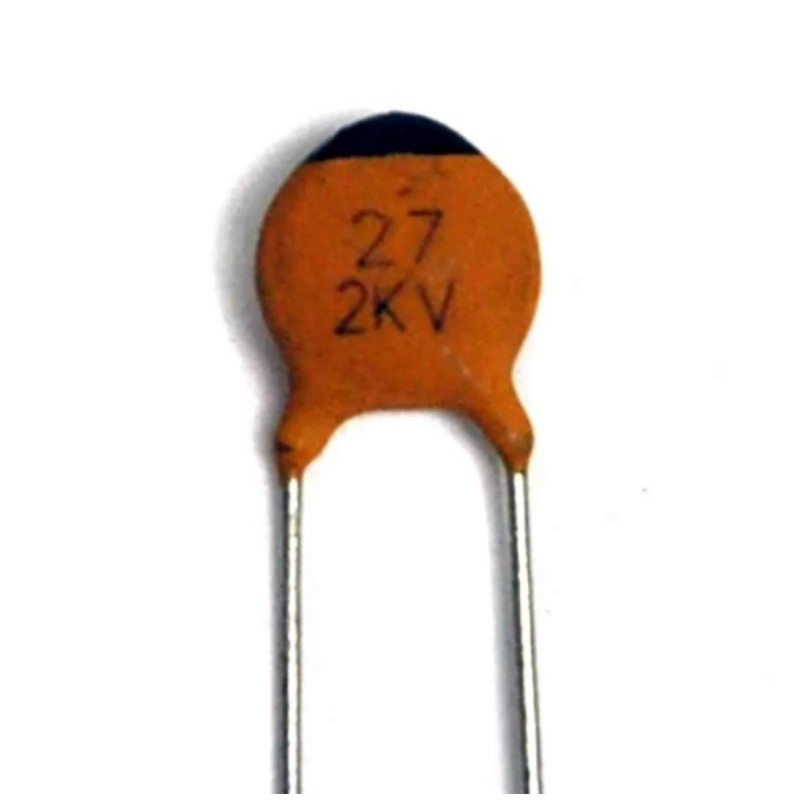

Detail Disc Ceramic Capacitor 27pF 2KV K ±10% NPO NP0 pitch=5mm RoHS Taiwan

Disc Ceramic Capacitor



 27pF 2KV K ±10% NP0

For high frequency

Capacitance tolerance : +/-10%, K

Operating temperature : -55~+125℃

Insulation resistance >= 10,000MΩ

Temperature Characteristic(TC) : NP0 (-25°C~-85°C Within 0±60ppm/°C)

Quality Factor (Q):400+20*Cr Min.(Cr≦30pF) at 25°C with 1±0.1MHz and 3Vrms max

Lead length >= 25mm

Lead pitch = 5mm, +/-0.5mm

Lead size = φ0.6mm, Dia
