Detail Disc Ceramic Capacitor 27pF 1KV J ±5% NP0 Pitch= 5mm RoHS Taiwan NPO

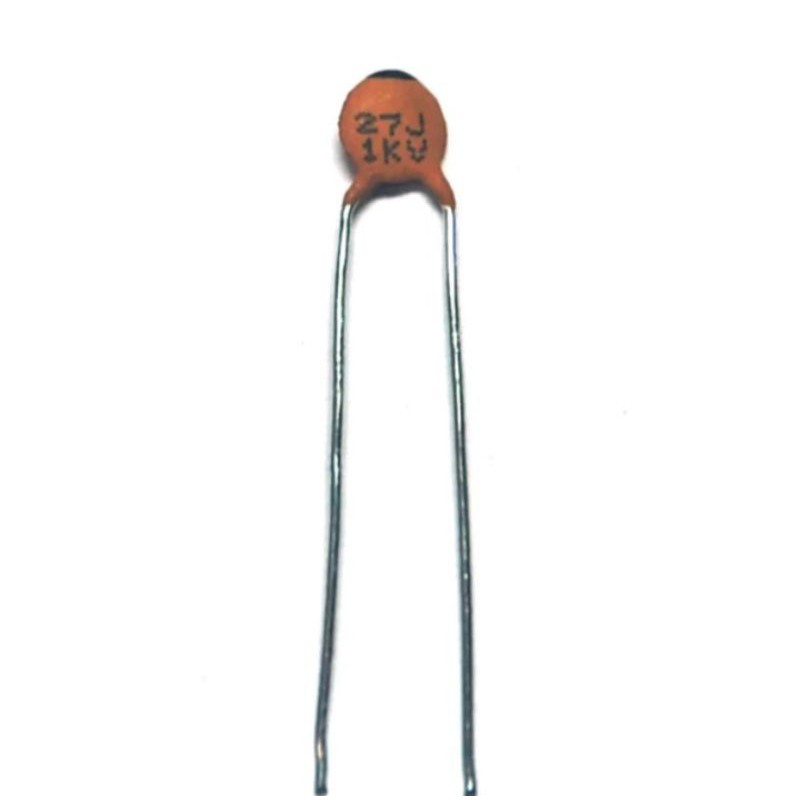

Disc Ceramic Capacitor



 27pF 1KV J ±5% NP0

For high frequency

High Quality and Reliability

Capacitance tolerance : ±5%, J

Operating temperature : -55~+125℃

Insulation resistance >= 10,000MΩ

Temperature Characteristic(TC) : NP0(-25°C~-85°C Within 0±60ppm/°C)

Quality Factor (Q) : 400+20*Cr Min.(Cr≦30pF) at 25°C with 1±0.1MHz and 3Vrms max

Lead length >= 25mm

Lead pitch = 4.5mm, ±0.5mm

Lead size = φ0.5mm, Dia
