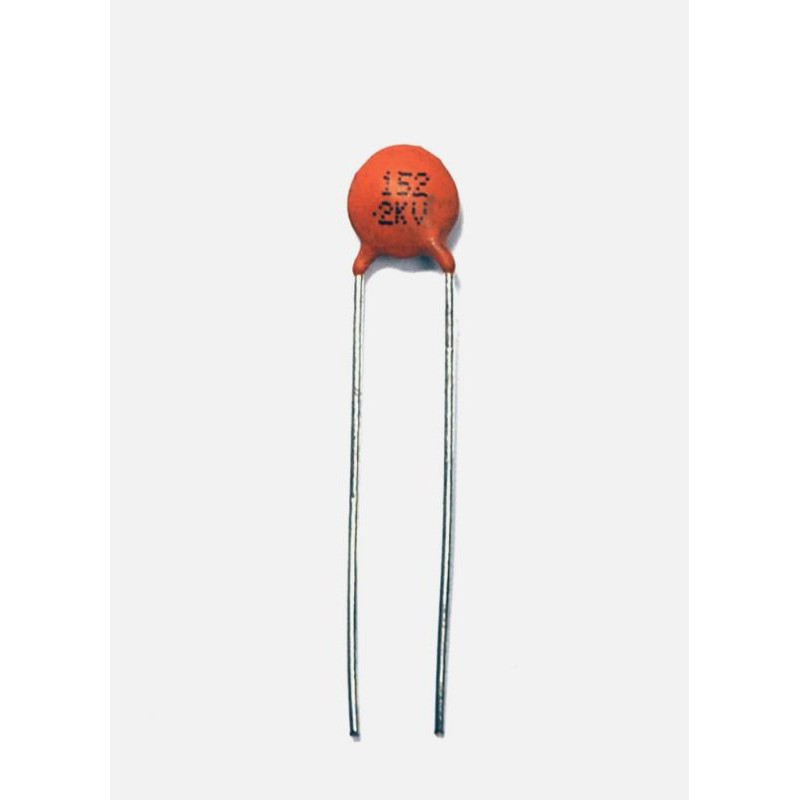

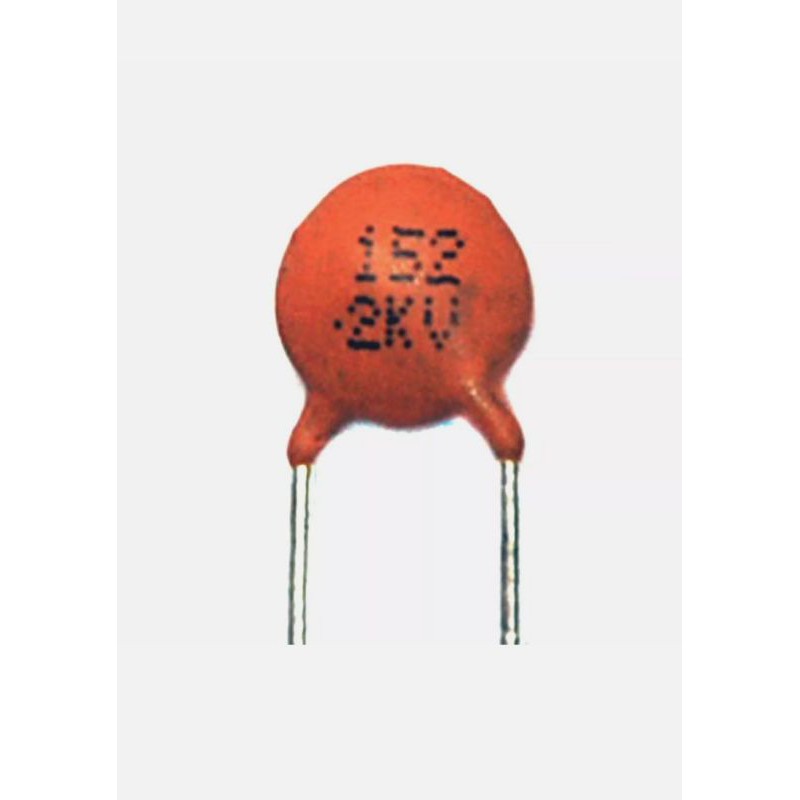

Disc Ceramic Capacitor 152M 152 1500pF 2KV ±20% Z5U pitch=5mm RoHS Taiwan

Elektronik > Elektronik Lainnya > Disc Ceramic Capacitor 152M 152 1500pF 2KV ±20% Z5U pitch=5mm RoHS Taiwan
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:RadioshopLihat semua produk Elektronik oleh Radioshop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Disc Ceramic Capacitor 152M 152 1500pF 2KV ±20% Z5U pitch=5mm RoHS Taiwan

Disc Ceramic Capacitor



 1500pF 2KV M ±20% Z5U

Capacitance tolerance : +/-20%, M

Operating temperature : -10~+85℃

Insulation resistance >= 10000MΩ

Dissipation Factor <= 5%

Lead length >= 25mm

Lead pitch = 5mm,+/-0.5mm

Lead size = φ0.6mm,Dia

Outside dimension : φ6.3x3.0mm, Dia xT

RoHS

made in Taiwan

Gambar produk

Disc Ceramic Capacitor 152M 152 1500pF 2KV ±20% Z5U pitch=5mm RoHS Taiwan
Disc Ceramic Capacitor 152M 152 1500pF 2KV ±20% Z5U pitch=5mm RoHS Taiwan
Disc Ceramic Capacitor 152M 152 1500pF 2KV ±20% Z5U pitch=5mm RoHS Taiwan
Disc Ceramic Capacitor 152M 152 1500pF 2KV ±20% Z5U pitch=5mm RoHS Taiwan
