dioda in5408 3a mic original 1000volt minimal order 10pcs

Elektronik > Kelistrikan > Kelistrikan Lainnya > dioda in5408 3a mic original 1000volt minimal order 10pcs
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:ZhoyacctvLihat semua produk Elektronik oleh Zhoyacctv
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail dioda in5408 3a mic original 1000volt minimal order 10pcs

1N5408 IN5408 1N 5408 IN 5408 3A 1000V MIC Dioda Diode Rectifier DO-27

FEATURES :
- Low cost construction.
- Fast switching for high efficiency.
- Low reverse leakage
- High forward surge current capability.
-High temperature soldering guaranteed: 260/10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension.

MECHANICAL DATA :
- Case: transfer molded plastic
- Epoxy: UL94V - 0 rate flame retardant.
- Polarity: Color band denotes cathode end.
- Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
- Mounting position: Any
- Weight: 0.042 ounce, 1.19grams

SPECIFICATION :
Maximum Repetitive Peak Reverse Voltage: 1000v
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:3.0Amps
Peak Forward Surge current: 125A
Maximum Instantaneous Forward Voltage at 3.0A :1.0v
Maximum Full Load Reverse Current :500uA
Typical Junction Capacitance :40pF
Typical Thermal Resistance : 30
Package: DO-27

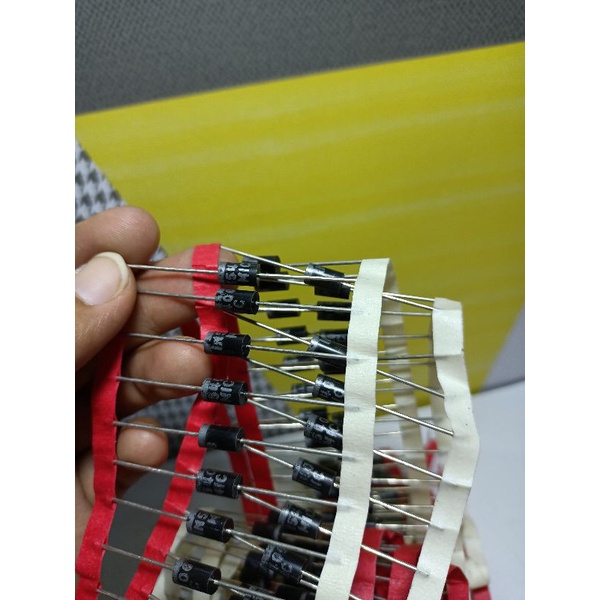

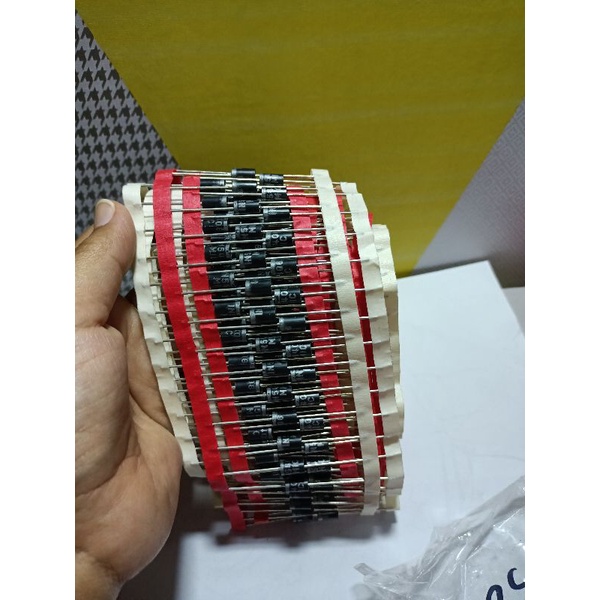

Gambar produk

dioda in5408 3a mic original 1000volt minimal order 10pcs
dioda in5408 3a mic original 1000volt minimal order 10pcs
dioda in5408 3a mic original 1000volt minimal order 10pcs
dioda in5408 3a mic original 1000volt minimal order 10pcs
Lihat lebih banyak informasi produk
