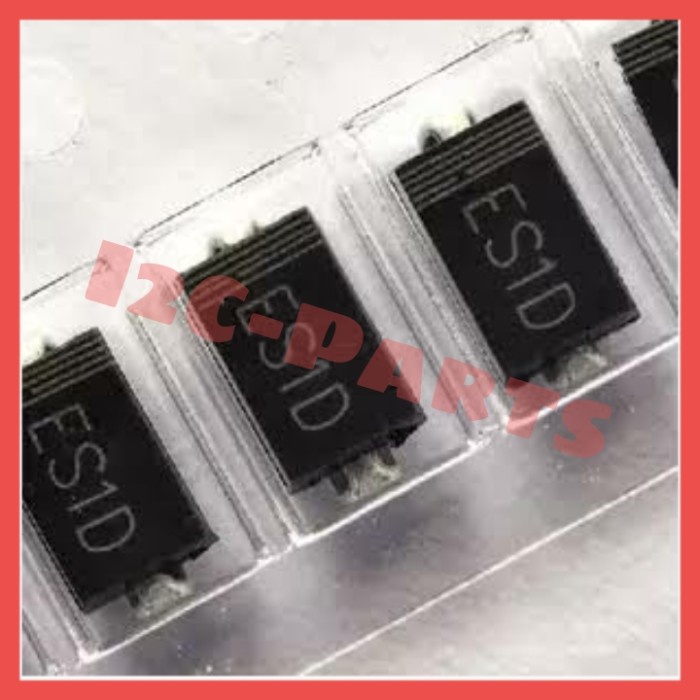

Detail Dioda ES1D SF14 1A 200V SMD SMA Ultra Fast Recovery Diode High Quality

Glass passivated junction. Low profile package. Easy pick and place. Built-in strain relief. Superfast recovery times for high efficiency.
SMA/DO-214AC

Specifications:

Current Ifsm: 30 A
Diode Type: Fast Recovery
Forward Current If(AV): 1 A
Forward Surge Current Ifsm Max: 30 A
Forward Voltage VF Max: 920 mV
Forward Voltage: 920 mV
Junction Temperature Tj Max: 150°C
Mounting Type: SMD
Number of Pins: 2
Package / Case: DO-214
Repetitive Reverse Voltage Vrrm Max: 200 V
Reverse Recovery Time trr Max: 15 ns
Reverse Recovery Time trr Typ: 15 ns
