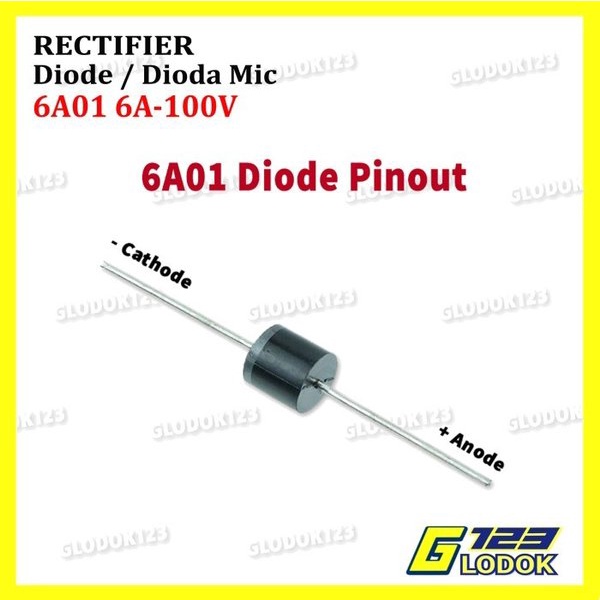

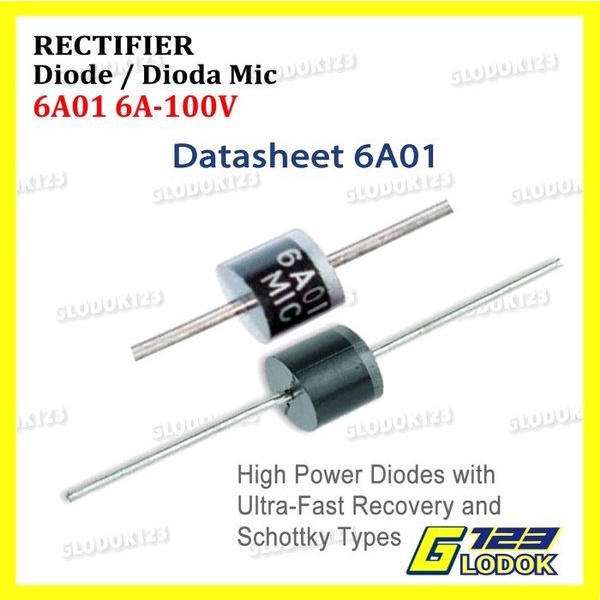

Dioda Diode Rectrifier MIC IN6A01 6A10 6 Ampere 6A 10 01 6A 100V
Deskripsi singkat
Elektronik > Elektronik Lainnya > Dioda Diode Rectrifier MIC IN6A01 6A10 6 Ampere 6A 10 01 6A 100V
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Dioda Diode Rectrifier MIC IN6A01 6A10 6 Ampere 6A 10 01 6A 100V
* Spesifikasi :- Diode Type : Rectifier Diode
- Application : General Purpose
- Diode Element Material : Silicon
- Forward Voltage-Max (VF) : 1.0 V
- Non-rep Pk Forward Current-Max - 400.0 A
- Operating Temperature-Max : 150.0 Cel
- Output Current-Max : 6.0A
- Rep Pk Reverse Voltage-Max : 100V
* Feature :
- Diffused Junction
- Low Forward Voltage Drop
- High Current Capability
- High Reliability
- High Surge Current Capabilty
