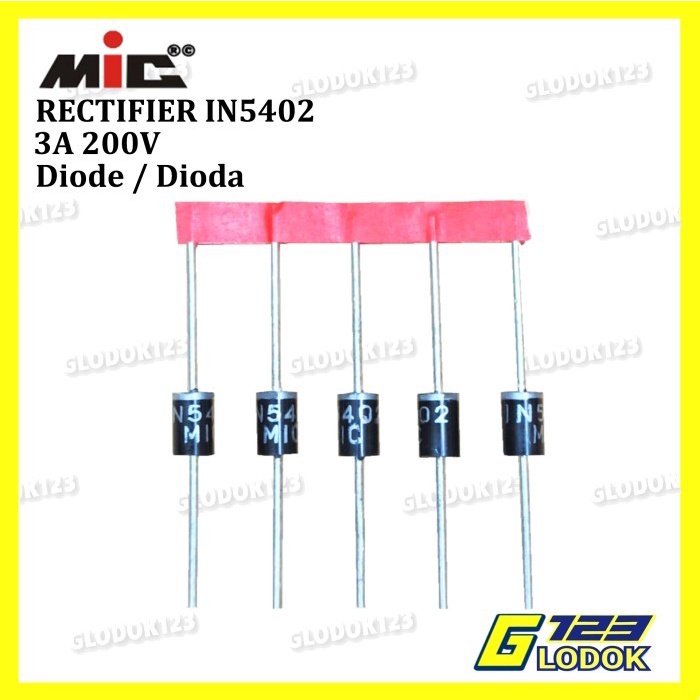

Detail Dioda Diode Rectifier DIP MIC IN5402 1N5402 1N IN 5402 3A 200V

* Features :
- Average forward current is 3A
- Forward Voltage drop is 1.2V
- Non-repetitive Peak current is 200A
- Peak Reverse current is 10uA.
- Repetitive reverse voltage is 200V
- Maximum RMS Voltage is 140V
- Operating and Storage Temperature Range: -65...+175 °C

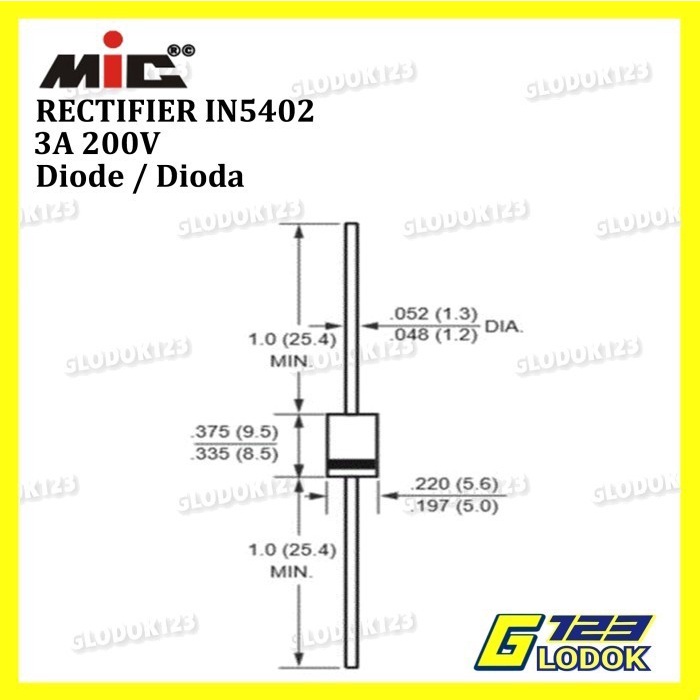

** MECHANICAL DATA :
- Case: DO-201AD, molded epoxy body
- Molding compound meets UL 94 V-0 flammability rating
- Base P/N-E3 - RoHS-compliant, commercial grade

Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test

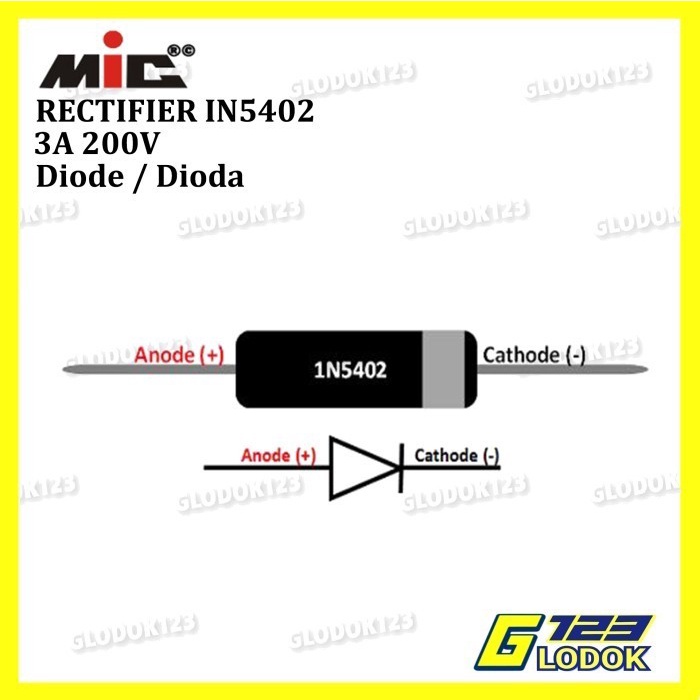

Polarity: Color band denotes cathode end
