DIODA 3A 5408 MIC ORIGINAL (HARGA PER 10PCS)

Elektronik > Perangkat Audio & Speaker > Mikrofon & Aksesoris > DIODA 3A 5408 MIC ORIGINAL (HARGA PER 10PCS)
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:KENCCTVLihat semua produk Audio oleh KENCCTV
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail DIODA 3A 5408 MIC ORIGINAL (HARGA PER 10PCS)

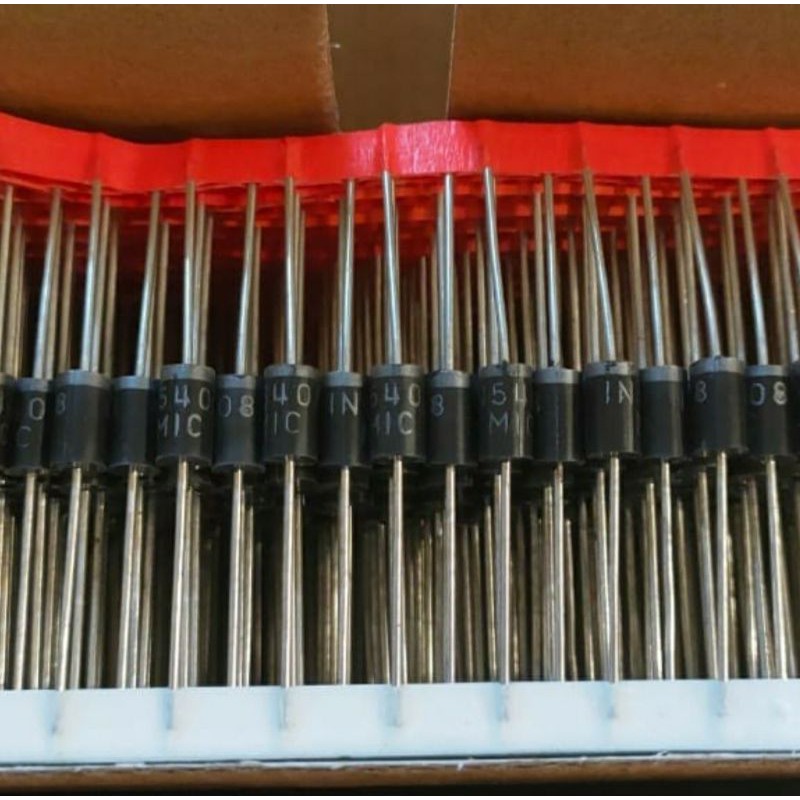

1N5408 IN5408 1N 5408 IN 5408 3A 1000V MIC Dioda Diode Rectifier DO-27

FEATURES :
- Low cost construction.
- Fast switching for high efficiency.
- Low reverse leakage
- High forward surge current capability.
-High temperature soldering guaranteed: 260/10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension.

starvis selalu terdepan

MECHANICAL DATA :
- Case: transfer molded plastic
- Epoxy: UL94V - 0 rate flame retardant.
- Polarity: Color band denotes cathode end.
- Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
- Mounting position: Any
- Weight: 0.042 ounce, 1.19grams

SPECIFICATION :
Maximum Repetitive Peak Reverse Voltage: 1000v
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:3.0Amps
Peak Forward Surge current: 125A
Maximum Instantaneous Forward Voltage at 3.0A :1.0v
Maximum Full Load Reverse Current :500uA
Typical Junction Capacitance :40pF
Typical Thermal Resistance : 30
Package: DO-27

Gambar produk

DIODA 3A 5408 MIC ORIGINAL (HARGA PER 10PCS)
DIODA 3A 5408 MIC ORIGINAL (HARGA PER 10PCS)
DIODA 3A 5408 MIC ORIGINAL (HARGA PER 10PCS)
DIODA 3A 5408 MIC ORIGINAL (HARGA PER 10PCS)
Lihat lebih banyak informasi produk
