Detail Per 10pcs Dioda 3A 5408 MIC 1000V

Harga satuan

1N5408 IN5408 1N 5408 IN 5408 3A 1000V MIC Dioda Diode Rectifier DO-27

FEATURES :
- Low cost construction.
- Fast switching for high efficiency.
- Low reverse leakage
- High forward surge current capability.
-High temperature soldering guaranteed: 260/10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension.


MECHANICAL DATA :
- Case: transfer molded plastic
- Epoxy: UL94V - 0 rate flame retardant.
- Polarity: Color band denotes cathode end.
- Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
- Mounting position: Any
- Weight: 0.042 ounce, 1.19grams

SPECIFICATION :
Maximum Repetitive Peak Reverse Voltage: 1000v
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:3.0Amps
Peak Forward Surge current: 125A
Maximum Instantaneous Forward Voltage at 3.0A :1.0v
Maximum Full Load Reverse Current :500uA
Typical Junction Capacitance :40pF
Typical Thermal Resistance : 30
Package: DO-27

Gambar produk

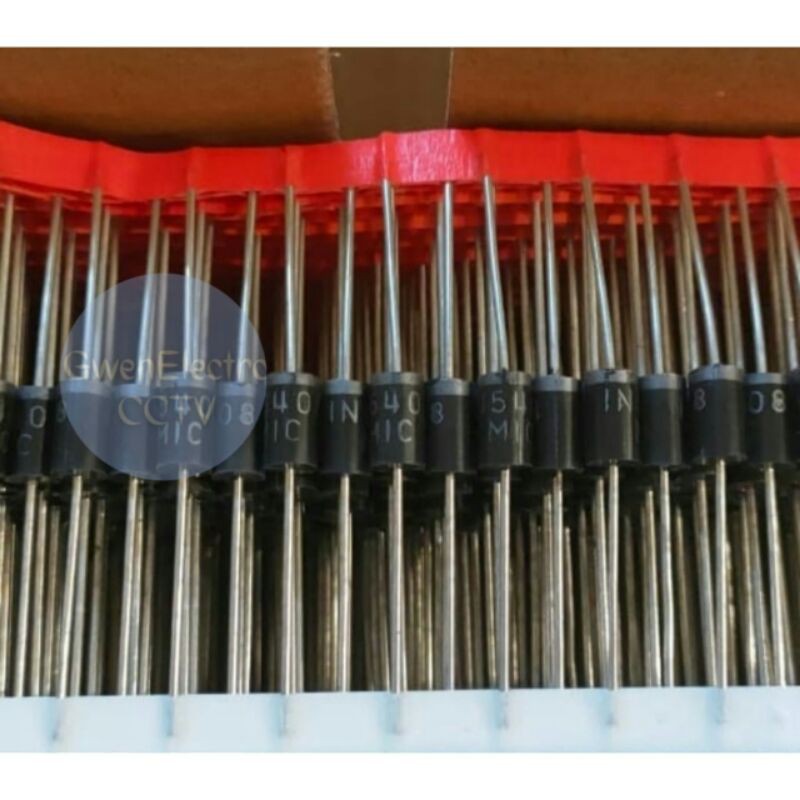

Per 10pcs Dioda 3A 5408 MIC 1000V
