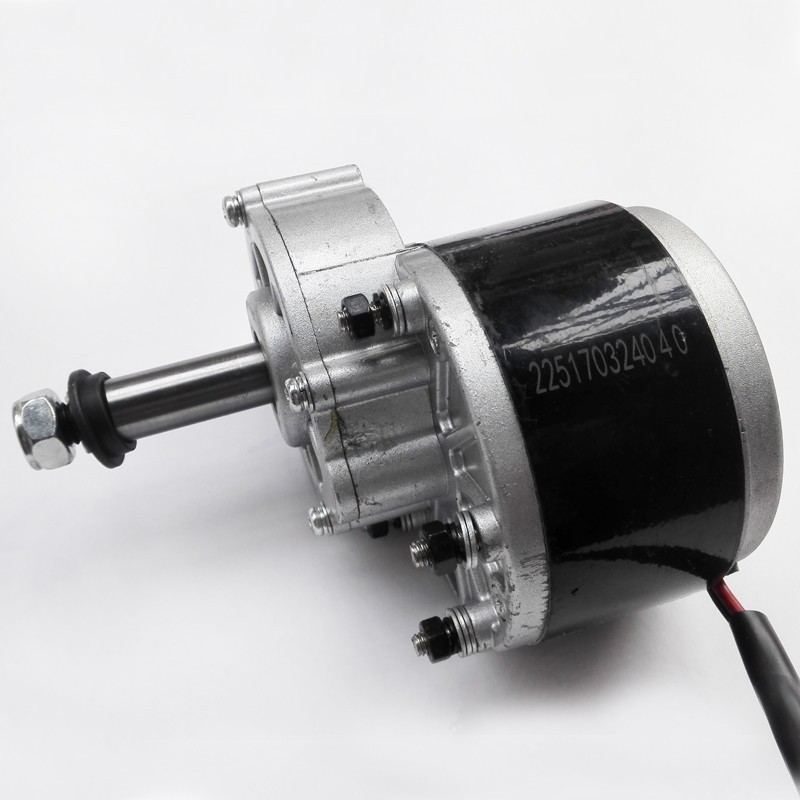

Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)

Olahraga & Outdoor > Boardsport > Segway & Hoverboard > Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:BOOM ElectronicLihat semua produk Olahraga & Outdoor oleh BOOM Electronic
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)

No-load current: 2.2A

Working voltage; 24V

Rated power: 250W

No-load speed: 3850rpm

Rated speed: 3000rpm

Rated torque: 0.80N.m

Rated current: 13.4A

Efficiency: 78%

Reduction ratio: 9.78:1

Actual speed: about 310 revolutions

Weight: 2.33KG

Motor diameter: 101mm

Motor shaft length: 55mm (visible length outside)

Motor shaft diameter: 17mm

Gambar produk

Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
Dinamo MY1016Z2 extended shaft 24V250W two-wheeled balance (7065)
