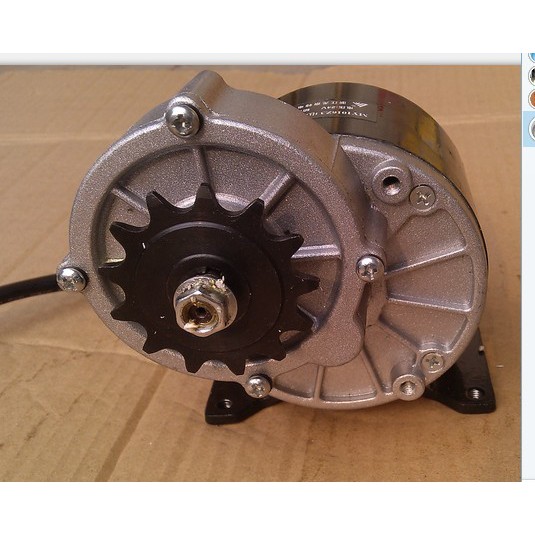

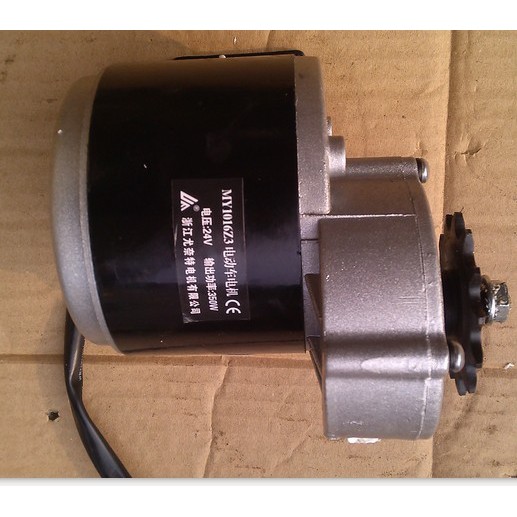

Detail Dinamo Motor Shipping electric bicycle 350 watt 36V-24V (7047)

The main technical parameters of the 24V350W modified electric tricycle motor:

No-load current: 2.5A

Working voltage; 24V

Rated power: 350W

Rated speed: 3000rpm

Rated torque: 1.11N.m

Rated current: 18.7A

Efficiency: 78%

Reduction ratio: 9.78:1

Actual speed: 310rpm

Driving speed: about 20-25km/h

Motor model: 1016Z3

Motor weight: 3.01KG

Fixed aperture: 42-95MM (four holes)

Load capacity: about 140KG

Motor gear: 13-tooth pinion

Applicable chain: bicycle chain (1/2*1/8)

Applicable models: Light household small two-wheeled tricycle
