Dinamo Motor MY6812 for Electric Scooter 120W 24V (7012)
Deskripsi singkat
Olahraga & Outdoor > Bersepeda > Bersepeda Lainnya > Dinamo Motor MY6812 for Electric Scooter 120W 24V (7012)
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Dinamo Motor MY6812 for Electric Scooter 120W 24V (7012)

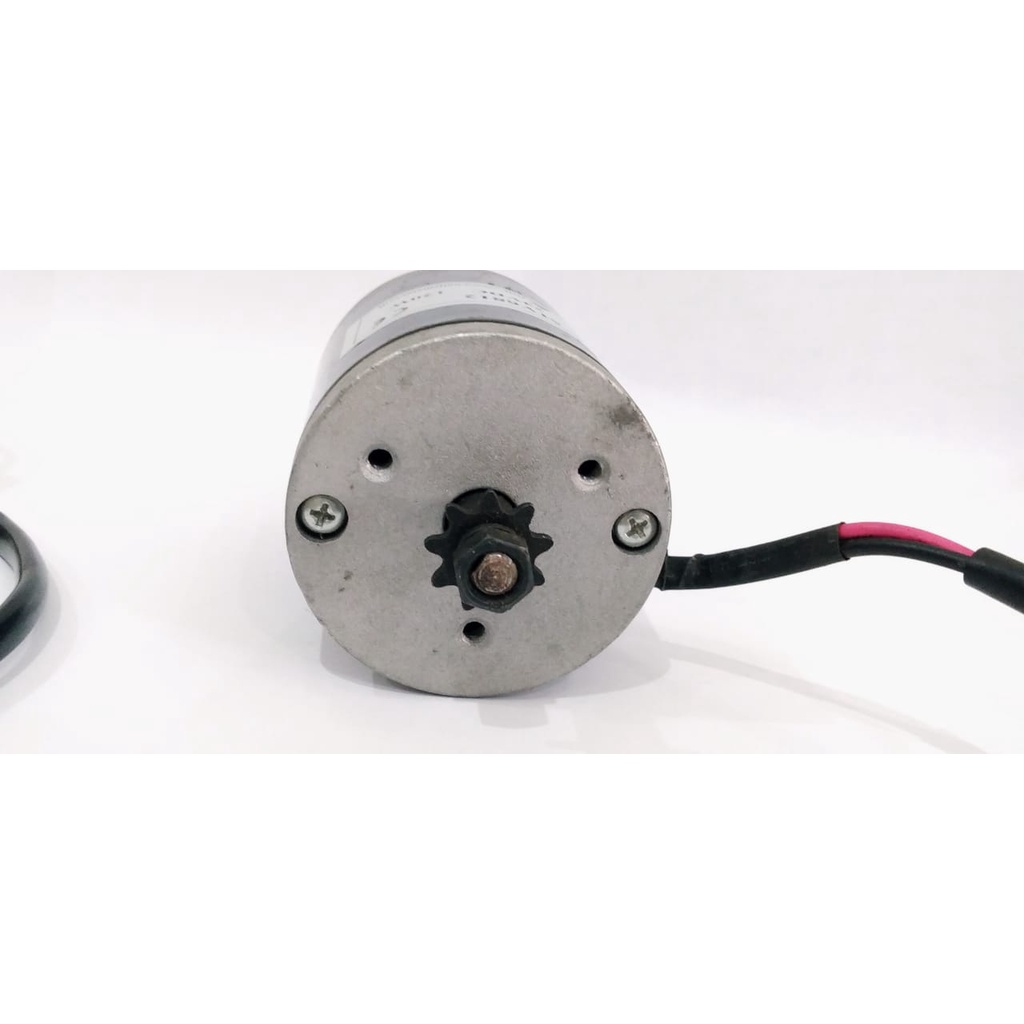

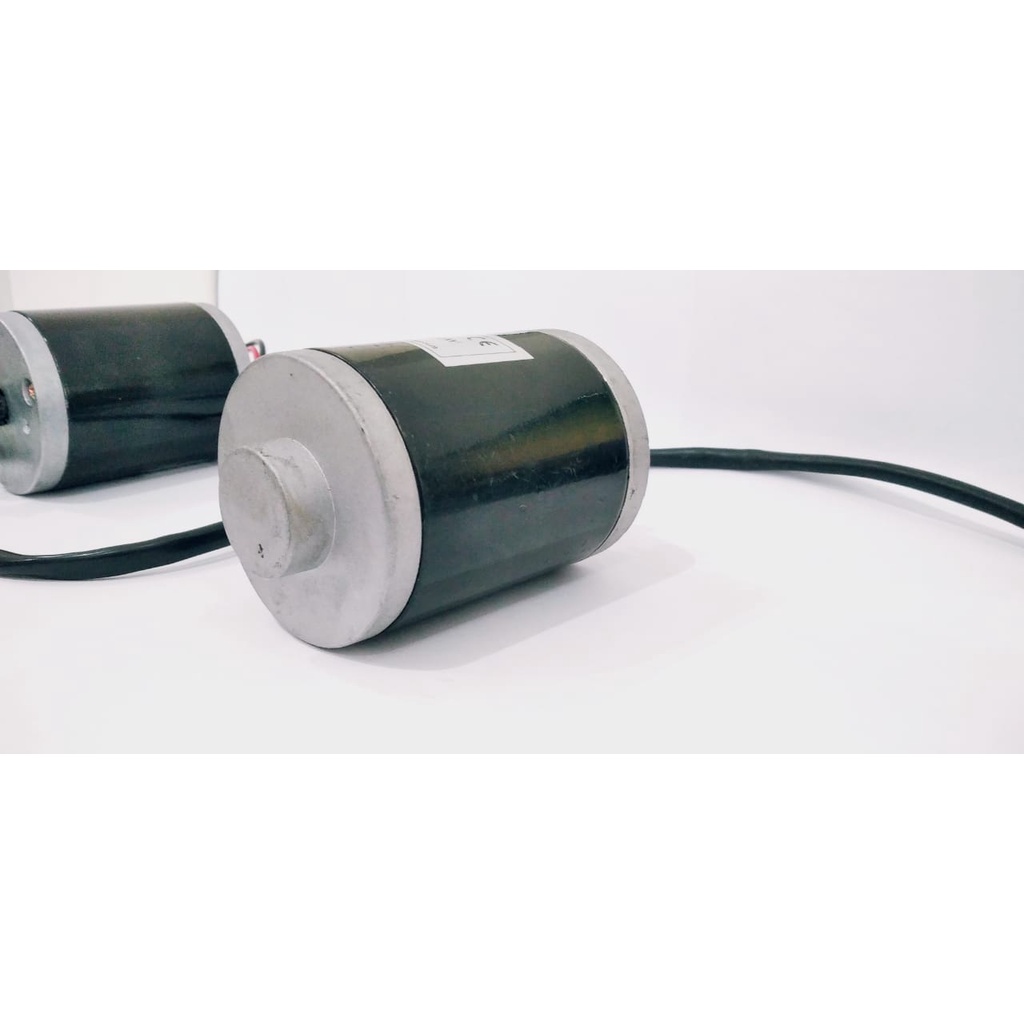

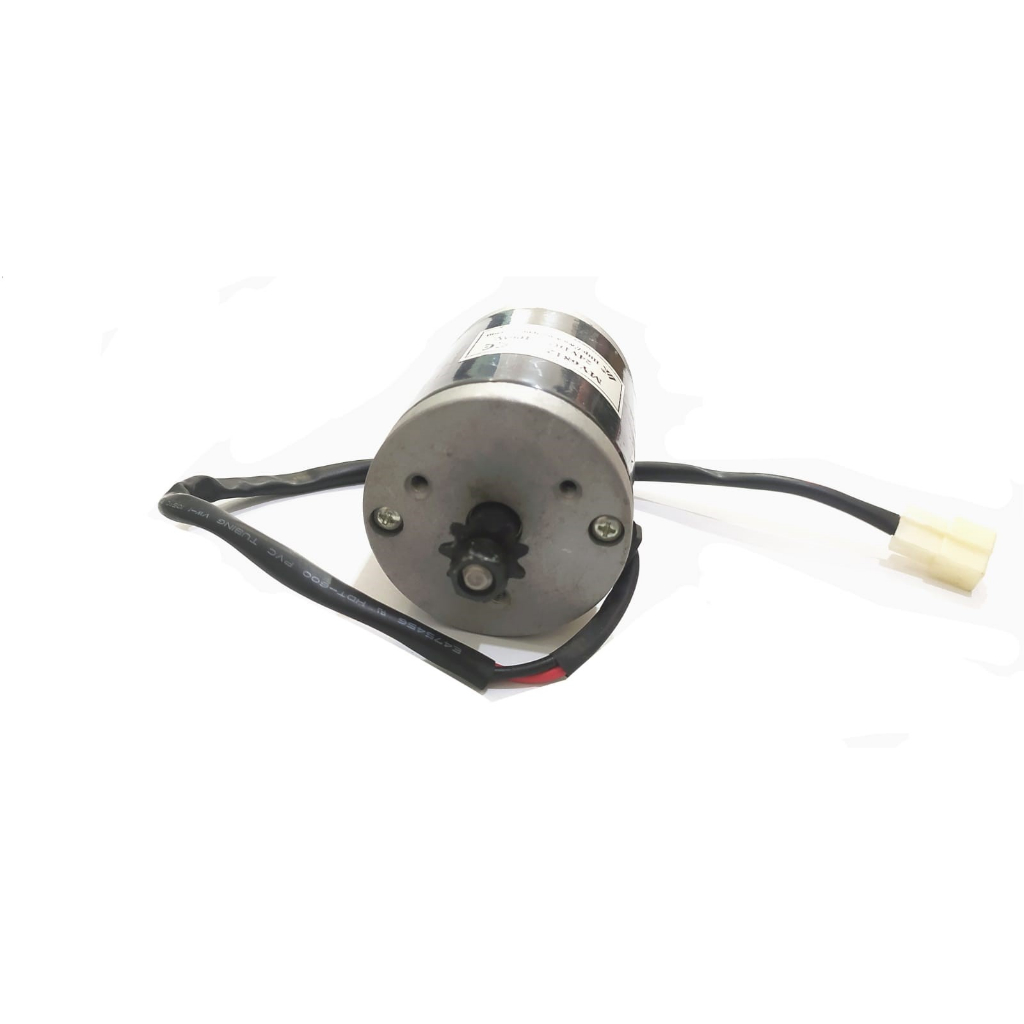

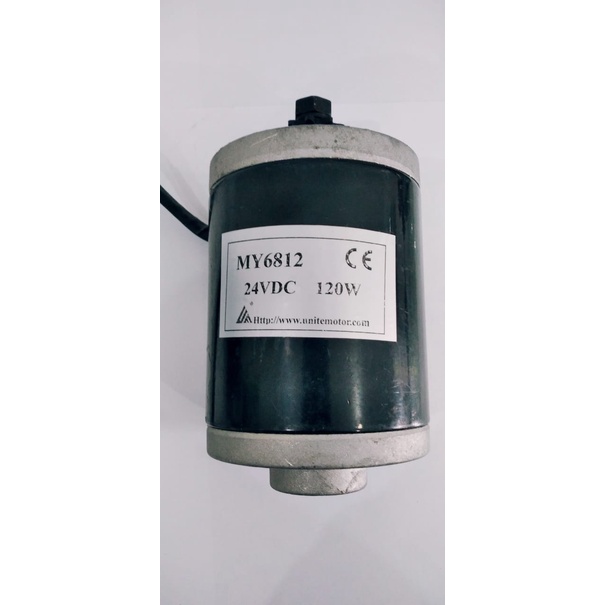

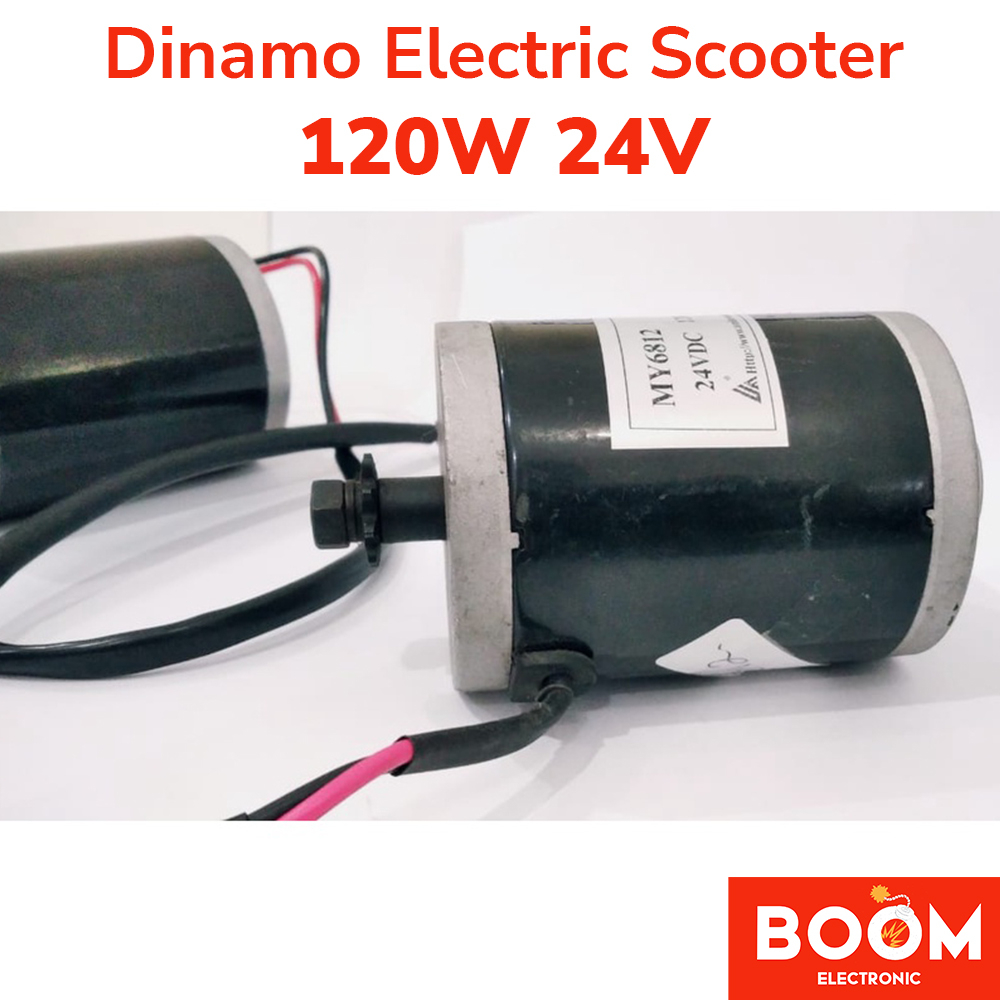

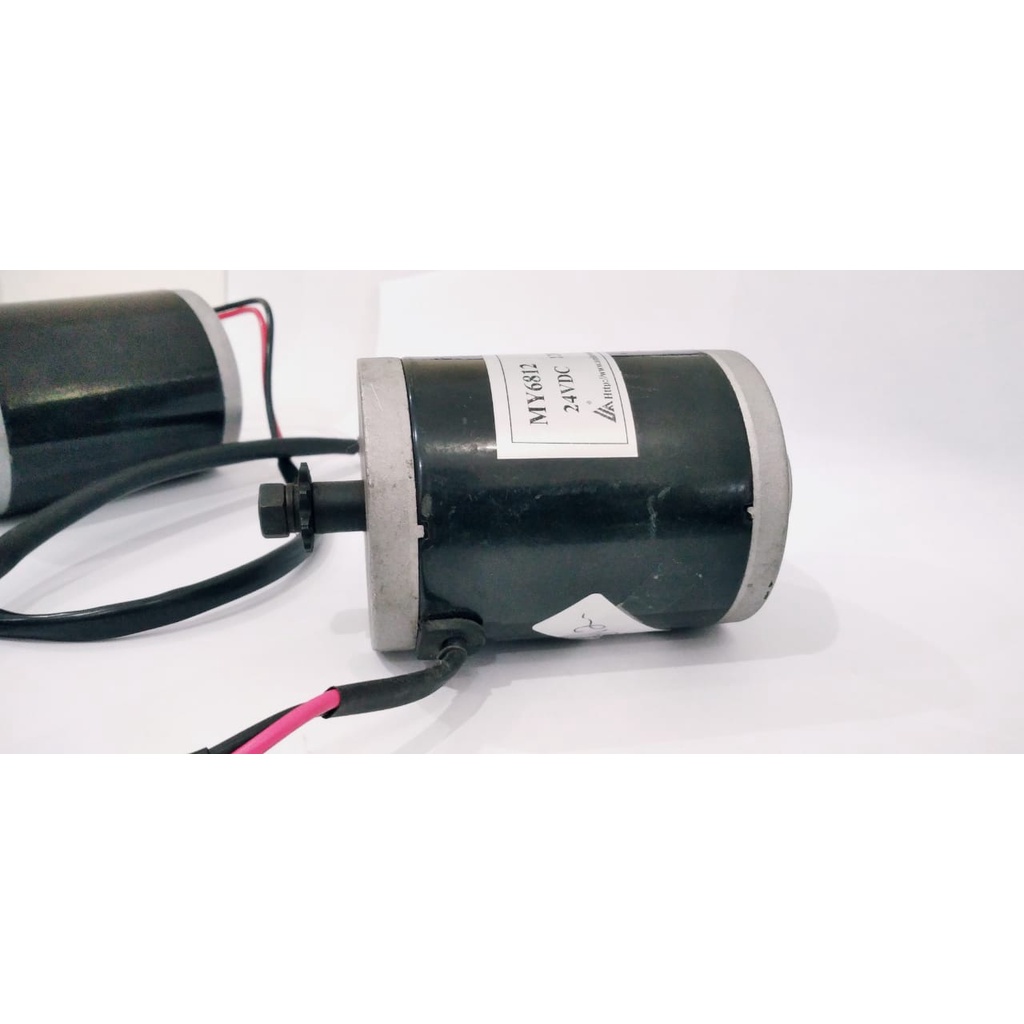

MY6812-120W24V permanent magnet DC unite brush motor electric scooter suitable for 25H chainOther parameters of the motor:
the length of the motor is 100mm,
the diameter is 68mm,
the length of the shaft is 28mm,
the diameter of the shaft is 8mm,
the distance between the two holes of the motor fixing hole is 36mm,
and the sprocket is a 25H type 9-tooth sprocket.
Voltage : 24V
Watt : 100W/ 120 watt
No load Cuurent Ampere : <0.6
No load Speed / RPM : 3500 rpm
Rated Torque/N.m : 0.42
Rated Speed : 2750rpm
Rated Current Ampere : <7.4 A
Gambar produk
