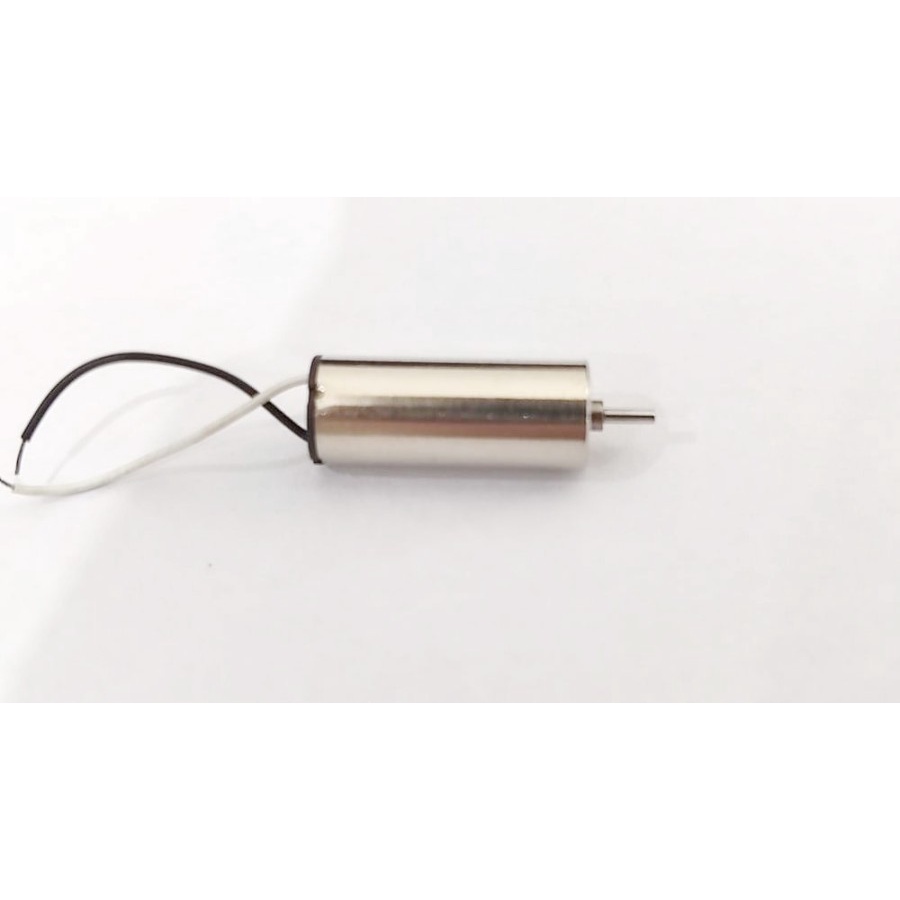

Detail Dinamo Motor model hollow cup Airplane High speed (8110)

Dinamo Motor model hollow cup Airplane 412 614 615 716 720 816 dan 820 (8110)

NB: HARGA PER PCS

Terdiri dari beberapa macam sbb :

1) Dinamo Motor 412
2) Dinamo Motor 612
3) Dinamo Motor 614
4) Dinamo Motor 615
5) Dinamo Motor 716
6) Dinamo Motor 720
7) Dinamo Motor 816
8) Dinamo Motor 820

Spesifikasi sbb :

1) Dinamo Motor 412 model Helicopter 3,7V 66000RPM
Motor diameter: 4 MM
Motor length: 12 MM (not including bearing sleeve)
Output shaft: 0.7 MM
Output shaft length: 4 MM
Voltage: 3.7 V
Current: 0.03 A
Speed: 66000 RPM
(54000 rpm at 3V, current is 0.03A)

2) Dinamo Motor 612 model airplane 1-4,5V 25000RPM
Applicable voltage: 1-4.5V
Speed: 3V 9500RPM (6V 25000rpm)
Shaft diameter: 0.8mm
Shaft length: 3.2MM
Size: 6x12 mm

3) Dinamo Motor 614 coreless DC 3.7V
Rated voltage: 3.7V
No-load speed: about 40,000 revolutions per minute
Dimensions:
panjang dinamo : 14,7 mm
diameter dinamo : 5,7 mm
Diameter shaft : 0,5 mm
Panjang shaft : 2,9 mm

4) Dinamo Motor 615 high speed quadcopter
[Rated voltage]: 3.7v
[Motor parameters]: The speed is about 43000 rpm, and the current is 0.19A
Dimensi sbb :
Motor diameter]: 6mm
[Motor length]: 15mm
[Motor shaft diameter]: 0.8mm
[Outgoing shaft length]: about 4mm

5) Dinamo Motor 716 model airplane HIGH SPEED
Voltage: 3,7V
Size : 7 x 16,5mm
No load speed: around 45000rpm
Diameter Shaft : 0,8mm
Shaft length : About 4-5mm
No load current: 30-50ma

6) Dinamo Motor 720 model airplane Strong Torsi 55000 rpm 3,7V
Rated: 3.7V No-load current: 0.13-0.19A
Speed: 55000 rpm
Size :
Body dinamo : 7x20mm
Lenght shaft : 5mm
Diameter shaft : 1mm

7) Dinamo Motor 816 model airplane Strong Torsi
Size]: 8*15.9mm
[Voltage]: 3.7V, no-load current about 100ma, locked rotor 1000ma
[Speed]: No-load 38000rpm (per minute)
[Shaft diameter]: 0.8mm
【Shaft Length】: 5mm
【Line Length】: 50mm

8) Dinamo Motor 820 model airplane Strong Torsi
Size]: 8.5 *20mm
Voltage : 3.7V
Speed : 50000rpm
