Dinamo Motor Mini Bench Drill plus Table Saw plus Dimmer (8055B)

Detail Dinamo Motor Mini Bench Drill plus Table Saw plus Dimmer (8055B)

Dinamo Motor Mini Bench Drill plus Table Saw plus DImmer (8055B)

terdiri dari sbb

2. Pakai Dinamo Motor 775 + Dimmer 10A
3. Pakai Dinamo Motor 795 + Dimmer 10A
4. Pakai dinamo Motor 799 + Dimmer 20A
5. Pakai Dinamo Motor 895 + Dimmer 20A

Spesifikasi sbb :
** Dinamo Motor 775 D axis
Voltase: DC 12V-24V.
Current Rating: 1,16 A.
Kecepatan: 7500 RPM - 15000RPM.
Ukuran sesuai dengan gambar
warna: Silver.
Bahan: Metal.
Berat dinamo : 347gr

** *Motor DC 795

Type : high speed
Rated power: 80W
Product type: brushless DC motor
Rated voltage: 12 V
Rated current: 0.32 (A)
Rated speed: 6000-12000 (RPM)
12V==> 6000rpm
24V==> 12000 rpm

** *Dinamo Motor 799
Range Voltage : 12V-24V
Speed : 6000-12000 RPM
DC 12V : 6000RPM
DC 24V : 12000 RPM
DAYA : 180 watt
Torsi : 0,78 N.m

** Dinamo Motor 895 D axis
Kecepatan: 6000rpm -12000 rpm
6.000(12v)-12.000(24v) RPM
Voltage : Dc 12V-36V
Jenis high torque : 9,8 KG
Power : 360 watt
Maksimum arus : 16A

** DRILL B12
Electric Mini Drill :type B12 (1,5-10mm)

** Saw

blade saw : 100mm ( jumlah 1 pcs)

** Bracket
Hitam tebal 3mm

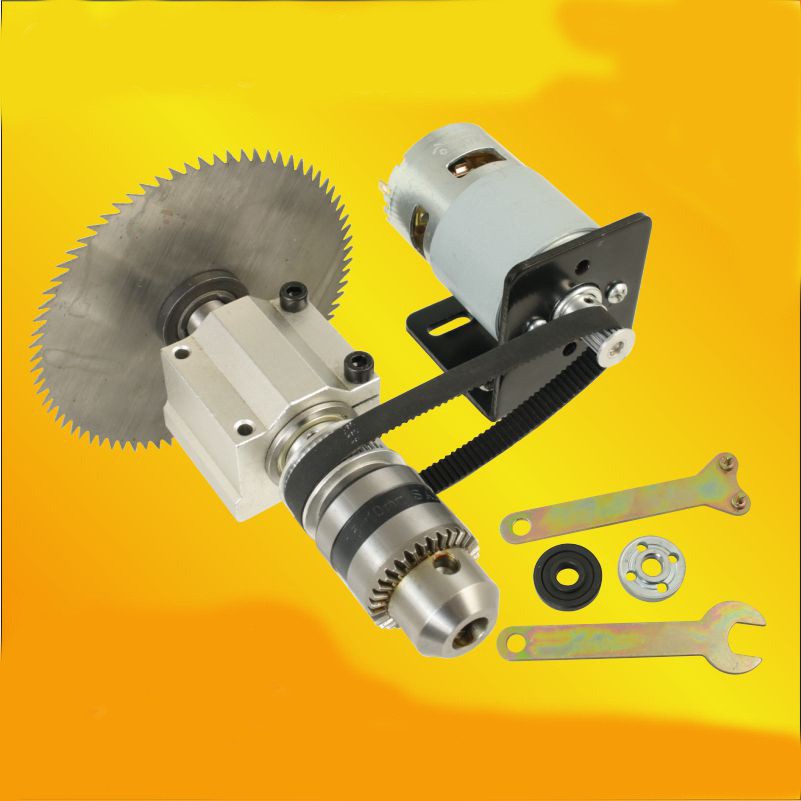

** Table Saw Spindle and MINI DRILL
For : Cutting , Polishing dan Grinda and DRILL
Ukuran karet polly : 240mm

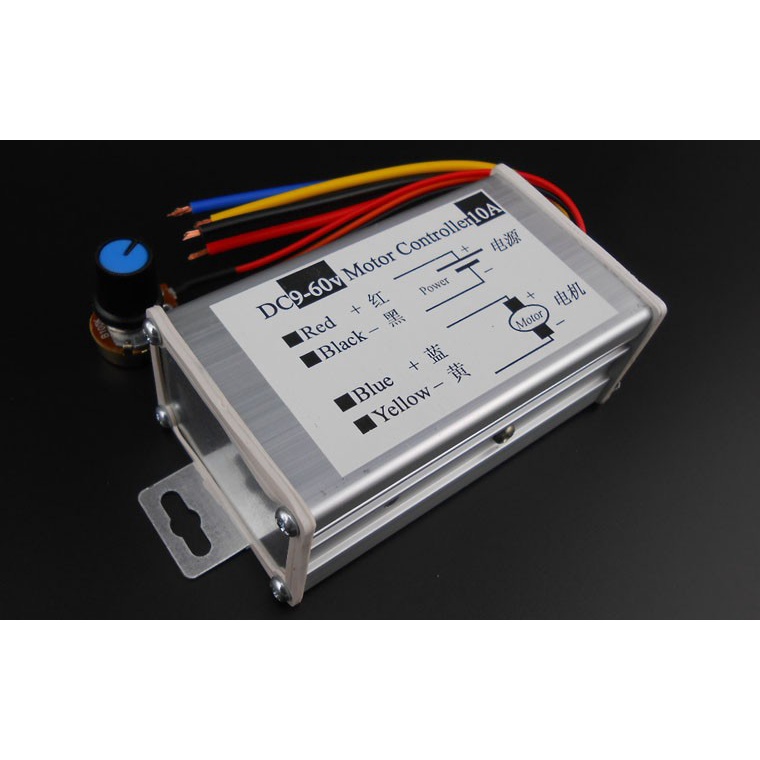

** Dimmer 10A width motor speed control 12V24V36V48V
voltage: DC9-60V
Output voltage: Linear under load
Input current: It is required to be larger than the working current of the motor.
Output current: The size of the load determines the continuous current: within 10A
Body set size: 92mm*58mm*36mm

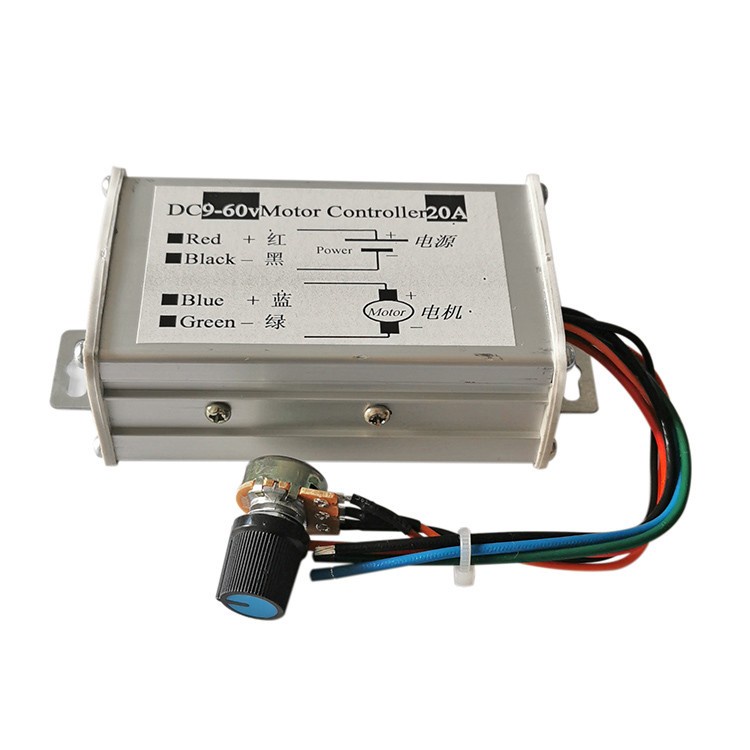

** Dimmer 20A width motor speed control 12V 24V 60V

Product parameters:
Input voltage: DC9-60V
Output voltage: linear under load

Gambar produk
