Detail Dinamo Motor m50 DC 3V high-speed rpm 18000 .50GX.

Dinamo Motor m50 DC 3V high-speed (50GX)

The circular m50 motor can reach 18,000 rpm at 3V, with high speed and large torque, which is suitable for making manual models.

[Motor diameter]: 10mm

[Motor length]: 25mm

[Motor shaft diameter]: 1mm

[Outgoing shaft length]: 3.5mm

[Voltage range]: 1.5-3v

【Motor parameters】:

When the power supply is 1.5V, about 8000 revolutions per minute, no-load current 0.06A, locked-rotor current 0.5A

When the power supply is 3V, about 18000 revolutions per minute, no-load current 0.09A, locked-rotor current 0.67A

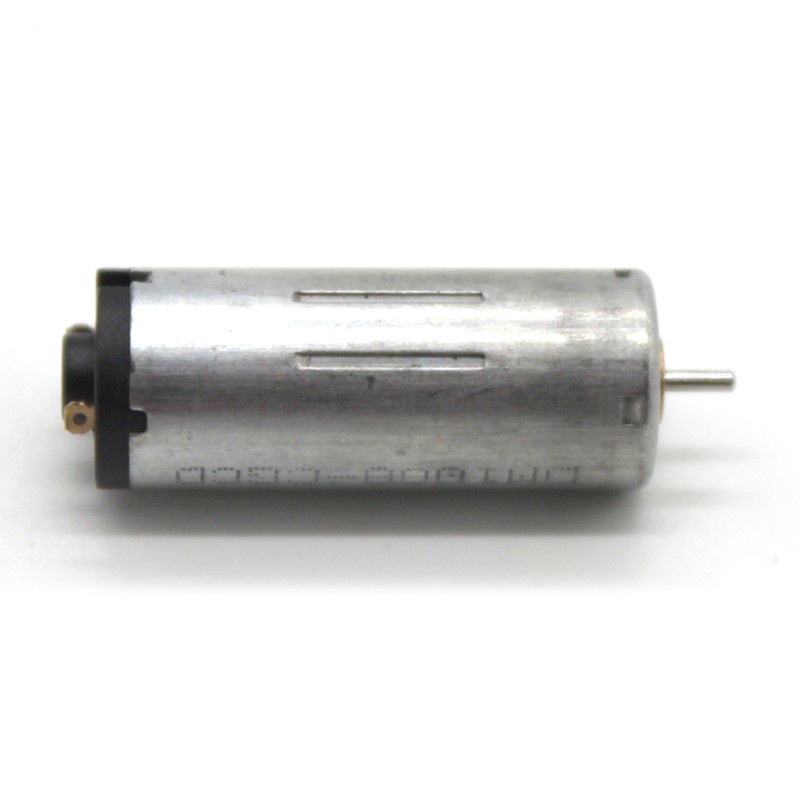

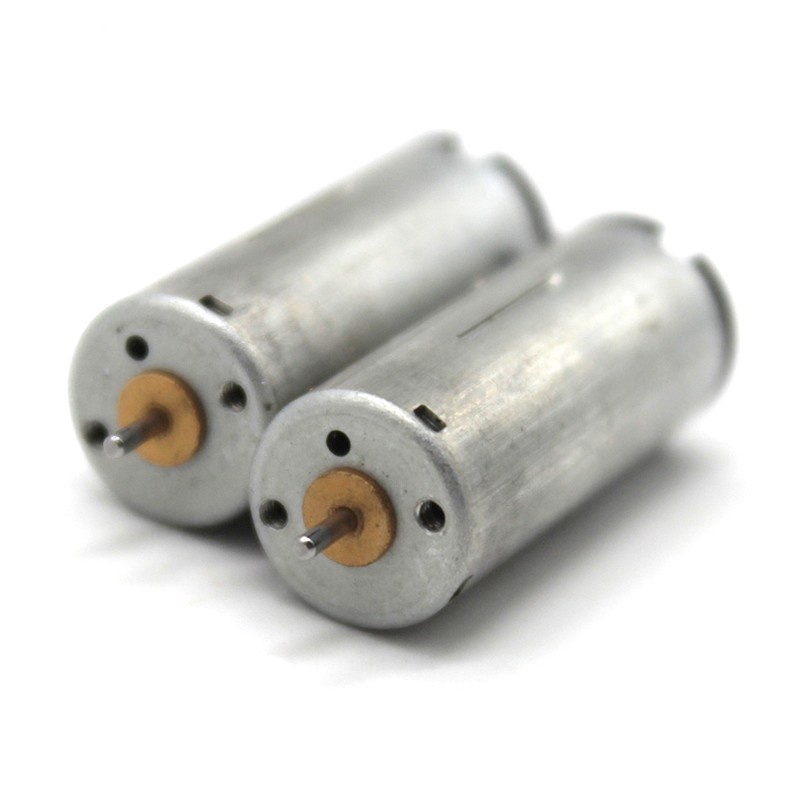

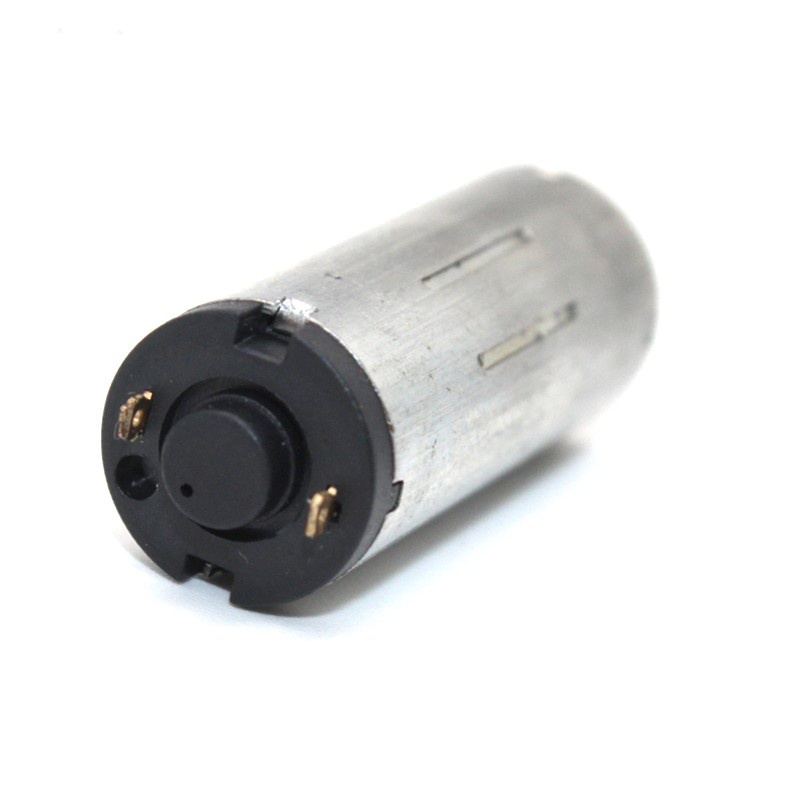

Gambar produk
