Dinamo Motor GearBox 16mm Torsi tinggi (1690)

Detail Dinamo Motor GearBox 16mm Torsi tinggi (1690)

Dinamo Motor Gear Box 16mm Torsi tinggi (1690)

earbox diameter: 16mm (the length of the gearbox is determined by the speed, the higher the speed, the shorter the gearbox)

2. Motor operating voltage: the rated voltage is 12V, and the operating voltage can be 3V~14.8V. (The greater the voltage, the higher the speed, the greater the torque)

3. The distance of the fixed hole diameter of the gearbox is 11mm, and the fixed hole diameter is: M2

4. The length of the tail motor: 28mm

5. Motor shaft length: 8mm long --- D type --- diameter 3mm, offset 2.5mm

6 The reduction box is a straight-tooth reduction all-metal gear (alloy material wear-resistant and high-strength)

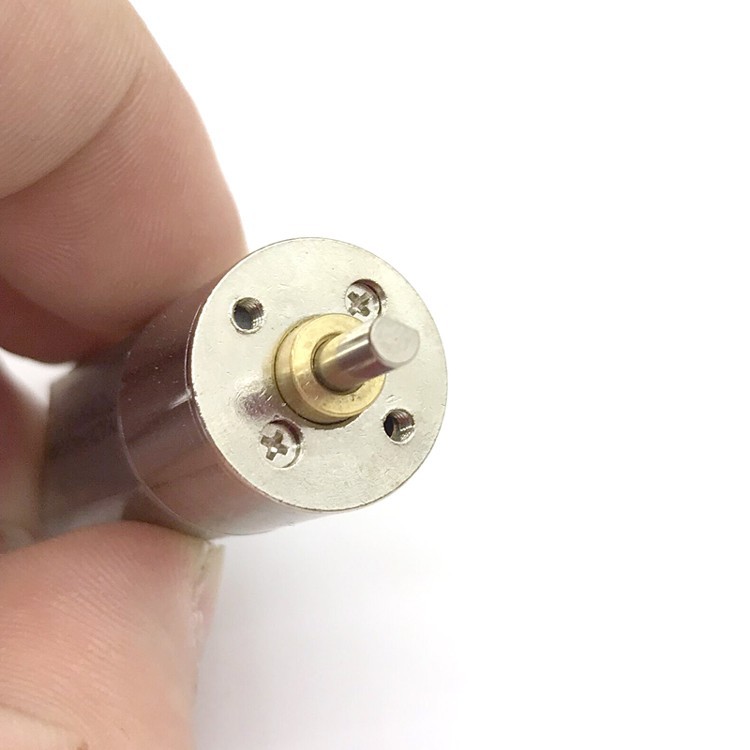

Gambar produk
