Detail Dinamo Motor For Electric Bike MY1016Z2 250W 24V Extended shaft (7063)

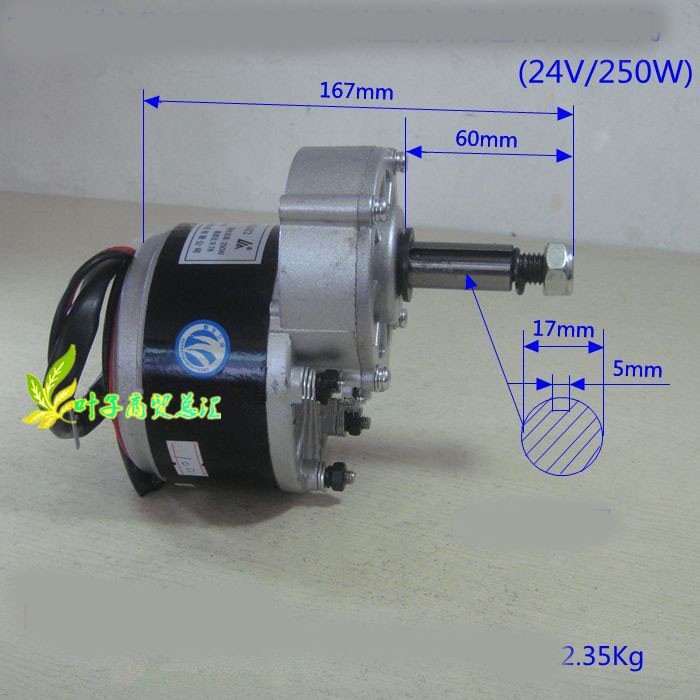

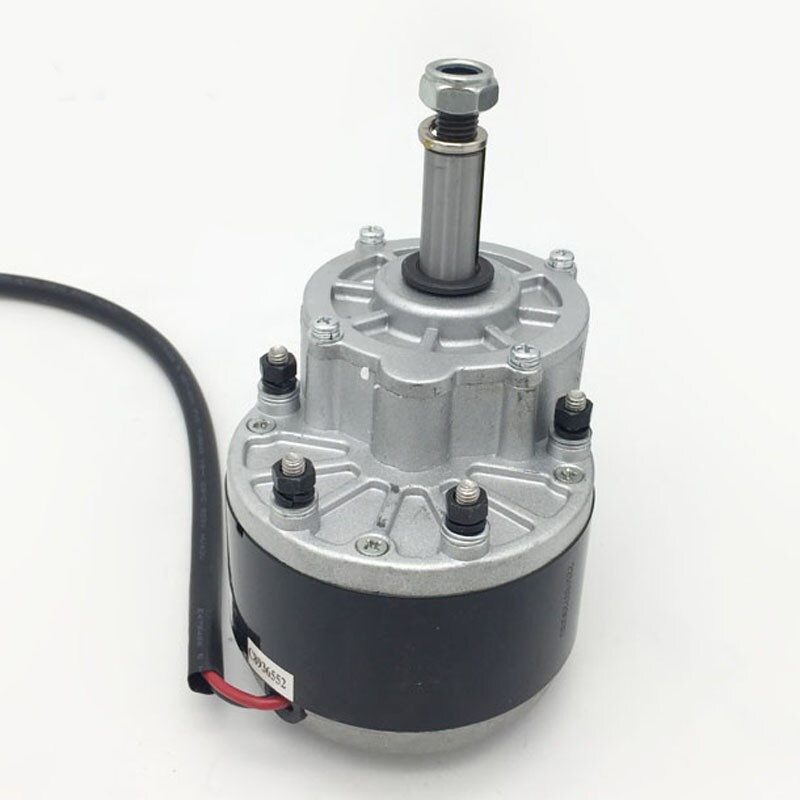

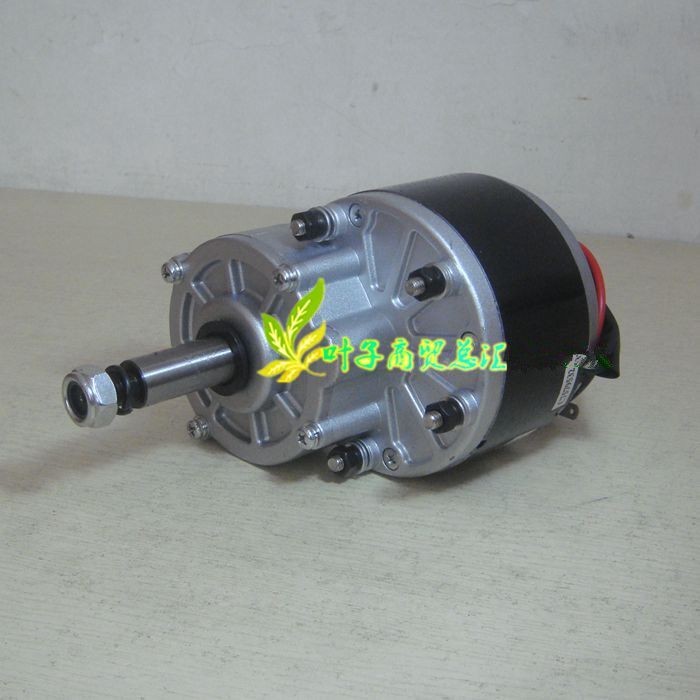

Dinamo Motor For Electric Bike MY1016Z2 250W 24V Extended shaft (7063)

Specifications of Electric bicycle Brush Gear Robot DC Motor

KEY FEATURES

24 volt 250 watt

9 tooth 1/2" x 1/8" bicycle chain sprocket

Left or right rotation by reversing wires

MY1016Z2 motor with gear reduction

100-120 RPM (after Reduction)

We understands the inventive mind and the thrill of creating something all your own. That is why we are proud to present the 24 volt 350 watt MY1016Z2 gear reduction motor complete with a 9 tooth 1/8" bicycle chain sprocket.

This motor is great for those wanting to make their own custom electric vehicle, whether it's a scooter, electric bicycle or something the world isn't even ready for. This electric motor with gear reduction produces more low-end torque than your standard motor.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

1. MY1016Z

2. 24 Volt DC Operation

3. Permanent Magnet DC Motor

4. No Load RPM: 3850

5. No Load Current: <2.2 Amps

6. Rated Wattage: 250W (0.33 Horsepower)

7. Rated Load RPM(after Reduction): 100-120

8. Torque (NM): 22

9. Rated Current: 19.2 Amps

10. Efficiency: 78%

11. Reduction Ratio:

12. Direct Drive (No Free Spooling)

13. Suitable for Forward and Reverse Operations

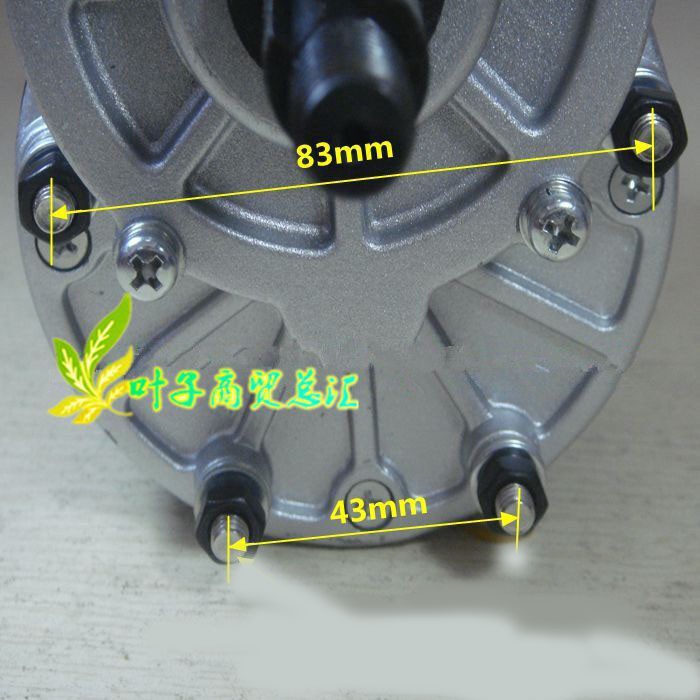

14. Base Mount Model

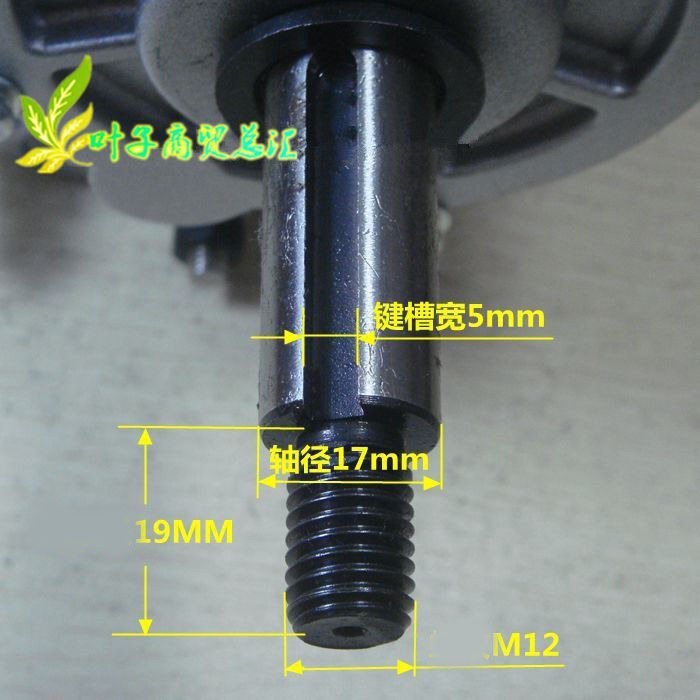

15. 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain
