Detail Dinamo Motor DC 300 3V6V Slow Motor Manual DIY Technology (093)

inamo Motor DC 300 3V6V Slow Motor Manual DIY Technology (093)

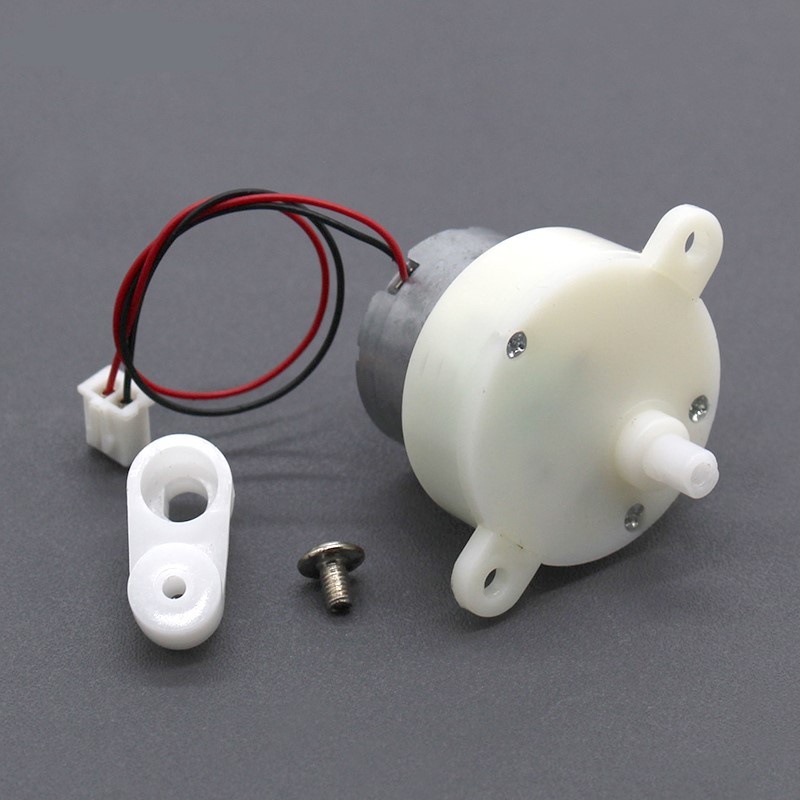

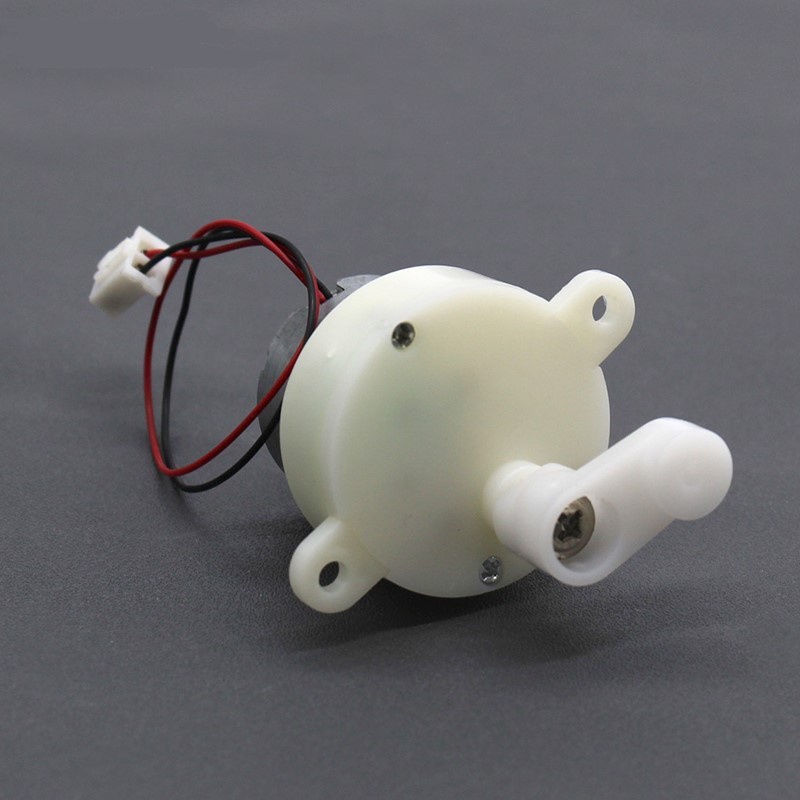

A geared motor that rotates far and very slowly, with curved rod on it, which can be used for making, it is more interesting to make a small model. The curved rod is fixed by screws and can be removed

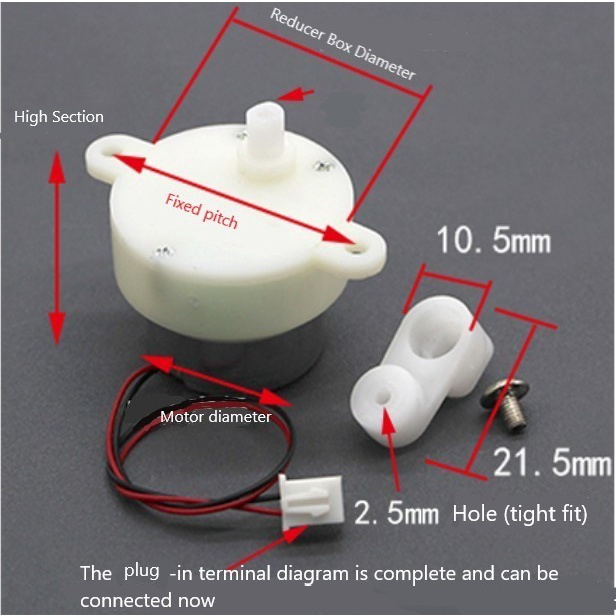

Motor diameter: 24mm
Gearbox diameter: 32mm
Height: 245mm
Shaft diameter: 5mm
Shaft length: 6mm
Fixed pitch: 39mm
Voltage: 3-6V

When the power supply is 3V, about 11 rpm
When the power supply is 6V, about 22 rpm

Wire length: 12cm
Plug terminal size: 4*5,5mm
Weight: about 27,5g

NOTE : This motor shaft is not a large torque motor
