Dinamo Motor Built-In Driver Brushless Motor B2148 6-24V (310MX)
Deskripsi singkat
Elektronik > Elektronik Lainnya > Dinamo Motor Built-In Driver Brushless Motor B2148 6-24V (310MX)
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Dinamo Motor Built-In Driver Brushless Motor B2148 6-24V (310MX)
Built-In Driver Brushless Motor B2148 6-24V (310MX)DC brushless motor in stock similar size to the ordinary brushed 310 motor, with a built-in brushless driver circuit, the motor supports forward and reverse rotation, 10-20khz signal 5V speed regulation, with speed signal feedback output, signal feedback needs the pull-up resistor needs to be adjusted for speed control.
The nominal value of the motor is 24V and the measured operating voltage is 6V-24V, which can work normally. The high voltage has high speed, the low voltage has low speed, and the voltage can also be adjusted within a certain range. PWM signal speed adjustment can support a wider speed range
The following is the measured motor speed at the highest no-load operation under different voltages :
Voltage : 6V, current 0,02A, no-load maximum speed 2100 RPM
Voltage : 12V, current 0,03A, maximum no-load speed 4450 RPM
Voltage 24V, current 0,04A, no-load maximum speed 8900 RPM
Motor weight about 28 grams

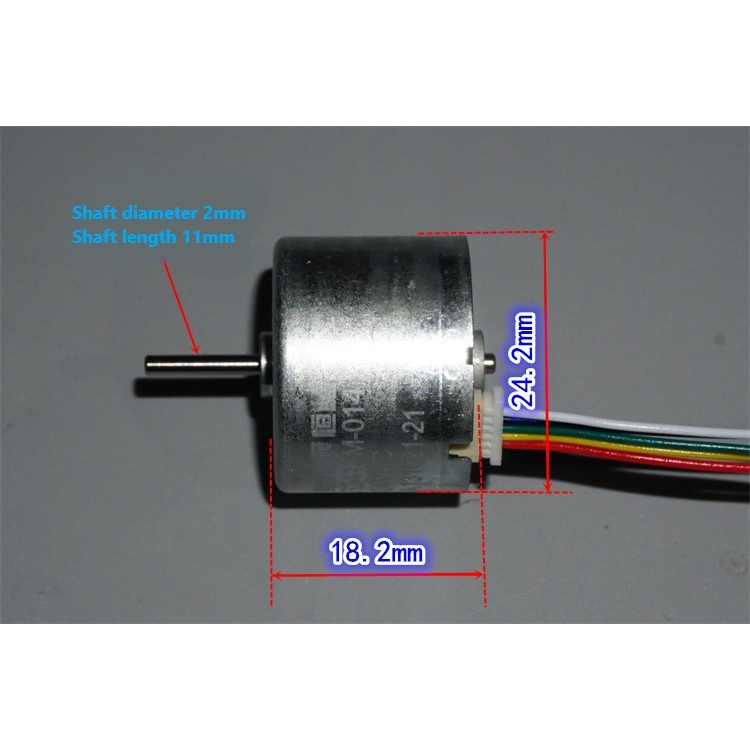

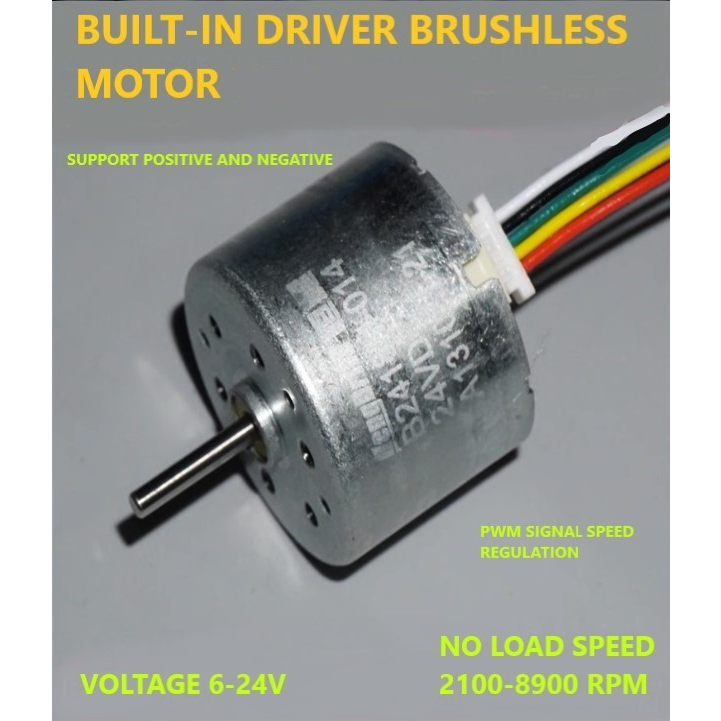

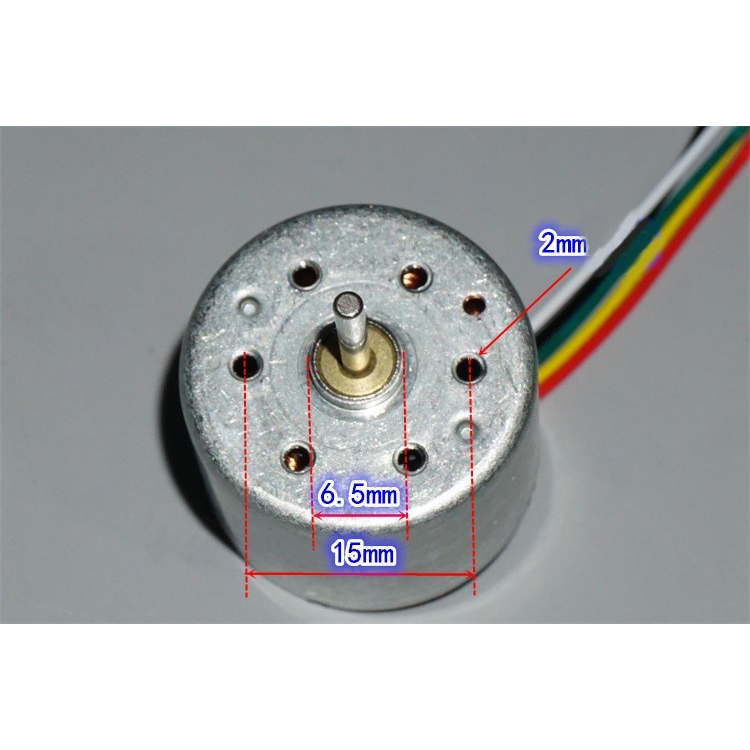

Gambar produk
