Detail Dinamo Motor Built-In Driver Brushless Motor 1626 5-12V (160DX)

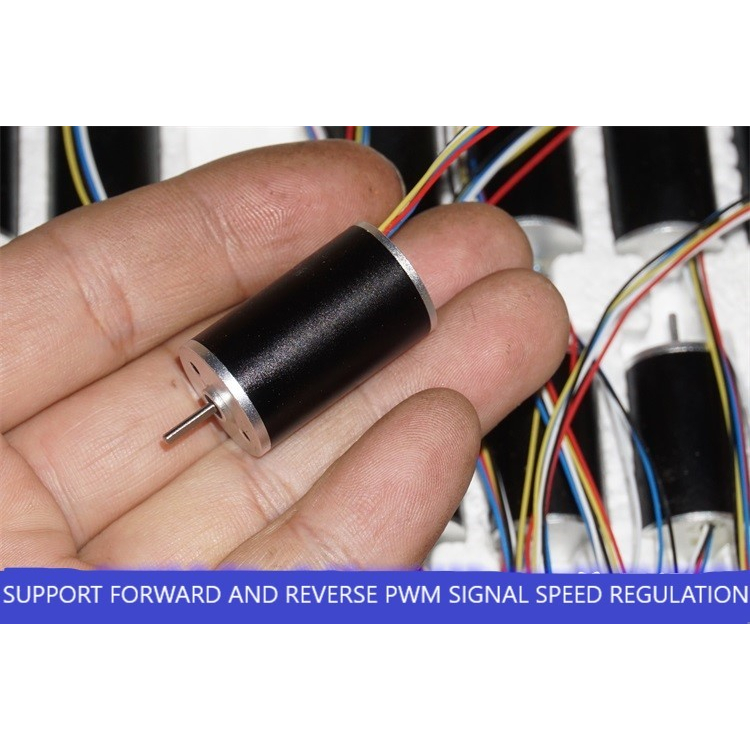

Built-In Driver Brushless Motor 1626 5-12V (160DX)16mm inner rotor brushless motor, built-in brushless drive circuit, motor diameter about 16mm, body length 26.5mm.All aluminum alloy shell CNC processing, motor front and rear ball bearings, built-in brushless drive The circuit supports forward and reverse switching, PWM signal speed regulation, signal feedback output, wide voltage 5-12V power supply, locked-rotor current up to 0.6A under 5V voltage, and 1.3A under 12V voltage. The power of the small motor is very good.
The white signal wire is connected to the negative pole to switch the positive and negative poles of the motor. When switching, the motor will stop for about 2 seconds. Note that the hand touch signal will interfere with the operation. Be sure to stabilize the 0V/5V signal voltage. The blue PWM signal measured about 5-20KHZ 5V Any PWM signal can be used, the yellow signal is output, the red positive pole and the black negative pole are strictly prohibited to be connected to the wrong positive and negative poles, otherwise the drive will be burnt instantly.
The measured voltage of the motor can be used between 5-12V, and the measured speed is as follows:
The voltage is 5V, the no-load current is 50mA , and the no-load speed is 6500 rpm.
The voltage is 8V, the no-load current is 60mA, and the no-load speed is 11000 rpm.
The voltage is 12V, the no-load current is 70mA, and the no-load speed is 17000 rpm.
Motor weighs about 15 grams.
