Detail Dinamo Motor Built-In Driver Brushless Motor B2418 12-24V (310KX)

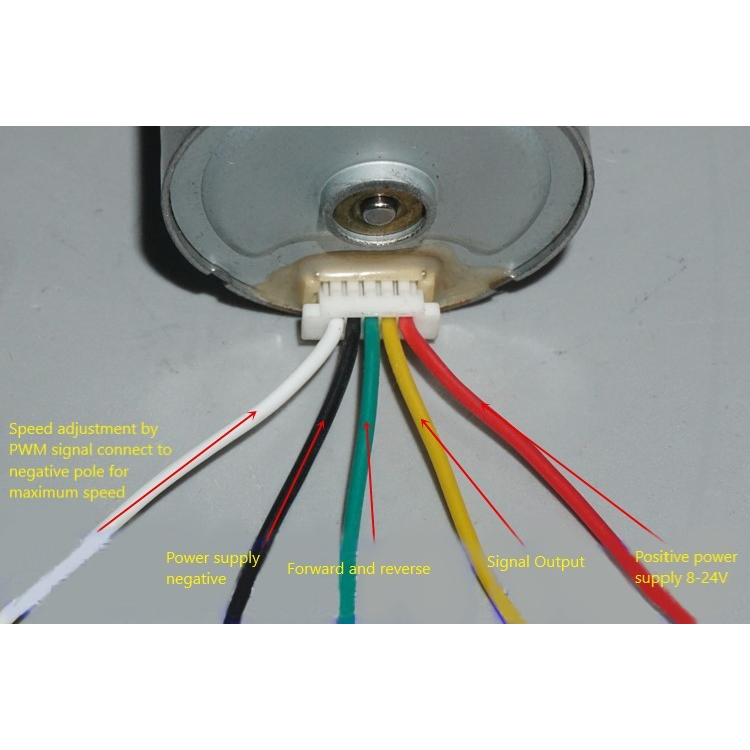

Dinamo Motor Built-In Driver Brushless Motor B2418 12-24V (310KX)similar in size to ordinary brushed 310 motors, built-in brushless drive circuit, the motor supports forward and reverse rotation, PWM signal speed regulation around 10-20khz, with speed signal feedback output, signal feedback needs to be connected Pull resistance, need to adjust the speed forward and reverse control can be matched with a multi-function signal speed control board in our store, the speed control board needs to be selected and purchased separately.
The nominal voltage of the motor is 24V, and the measured operating voltage is 8V-24V. It can work normally.

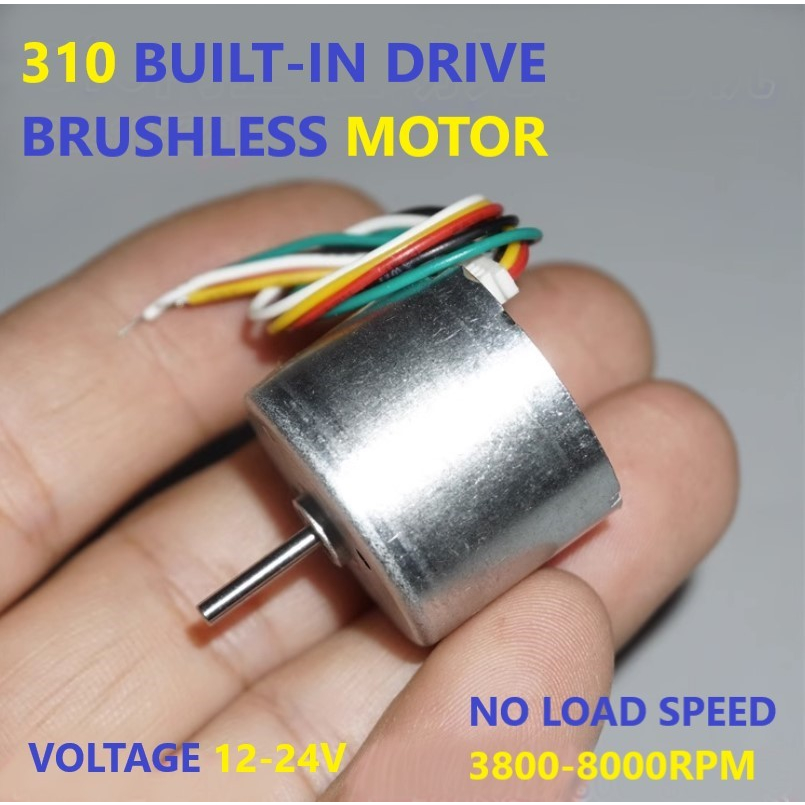

The following are the measured speeds of the motor at the highest no-load operation under different voltages:
Voltage: 8V, current 0.02A, no-load maximum speed 2400 rpm.
Voltage: 12 V, current 0.03A, no-load maximum speed 3800 rpm.
Voltage: 24 V, current 0.04A, no-load maximum speed 8000 rpm.
The motor weigth about 30 grams.
