Detail Dinamo Motor Brushless Vacuum Fan Ultra-High-Speed (7325)

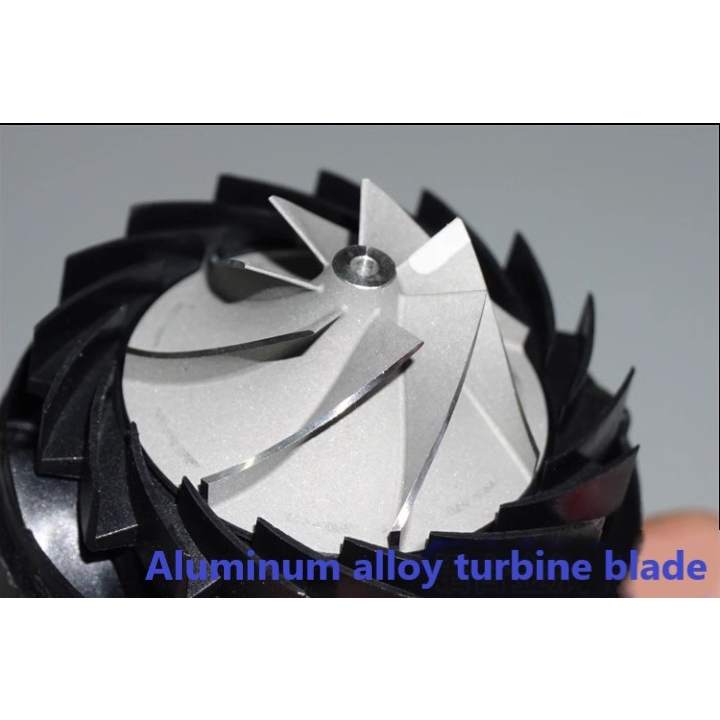

Dinamo Motor Brushless Vacuum Fan Ultra-High-SpeedHigh power ultra high speed three phase brushless motor turbo fan, nominal voltage 25,2V, power 420W, the measured motor speed is about 120,000 rpm, the motor KV value is about 5380, high-efficiency aluminium alloy impeller, and the measured voltage can reach 500 with the 24V voltage of the aircraft model ESC multi-watt, current 22A.

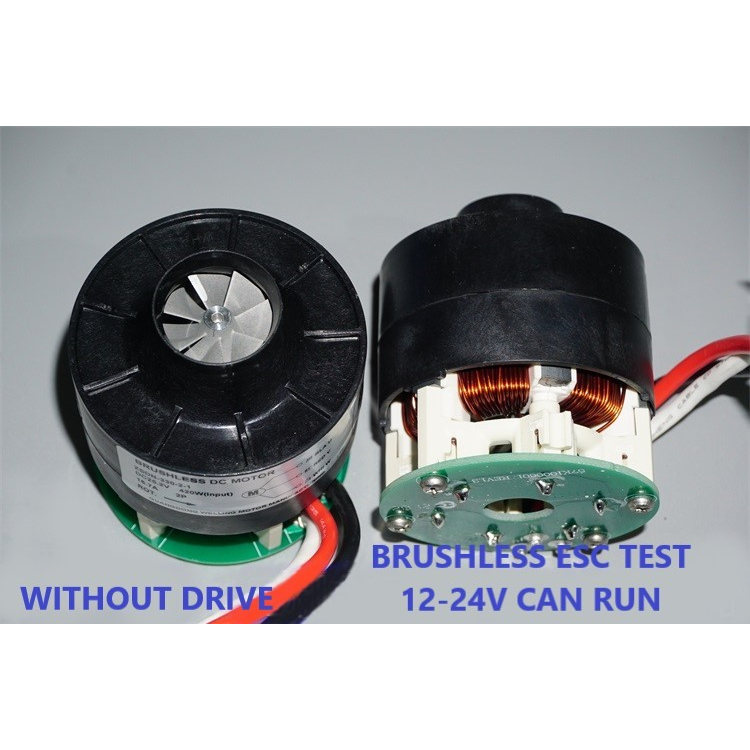

This motor does not have a brushless drive circuit, and now only the brushless ESC can be driven by its own model aircraft. It is suitable for the voltage range of 12-24V. The measured current can run to about 9,6A with the 12V voltage and the 24V 22A. Pay attention to the rotation direction of the fan blades, the current will increase abnormally if the direction is wrong, and the suction will decrease instead.

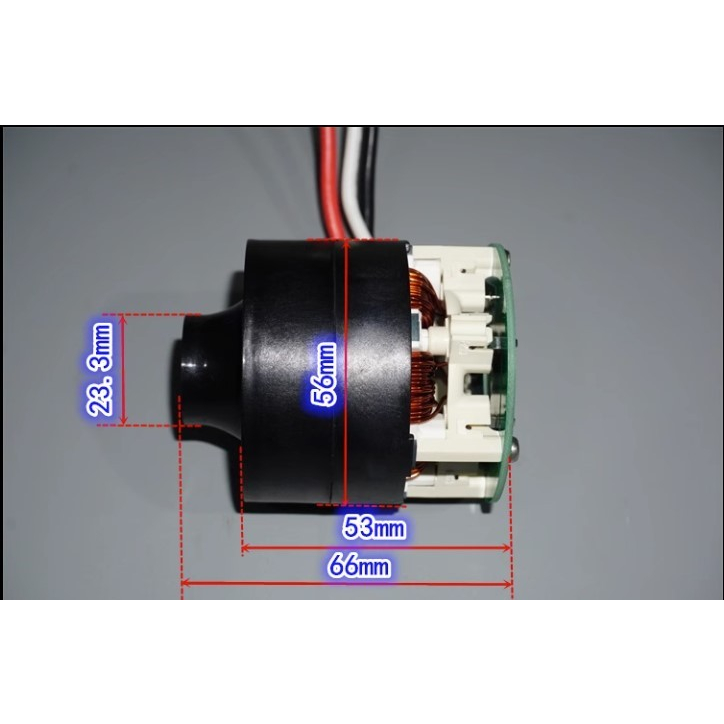

The diameter of the motor body is about 56mm, and the weight is about 208grams.
Gambar produk
