Dinamo Motor Brushless Vacuum Fan 200W (7327)

Detail Dinamo Motor Brushless Vacuum Fan 200W (7327)

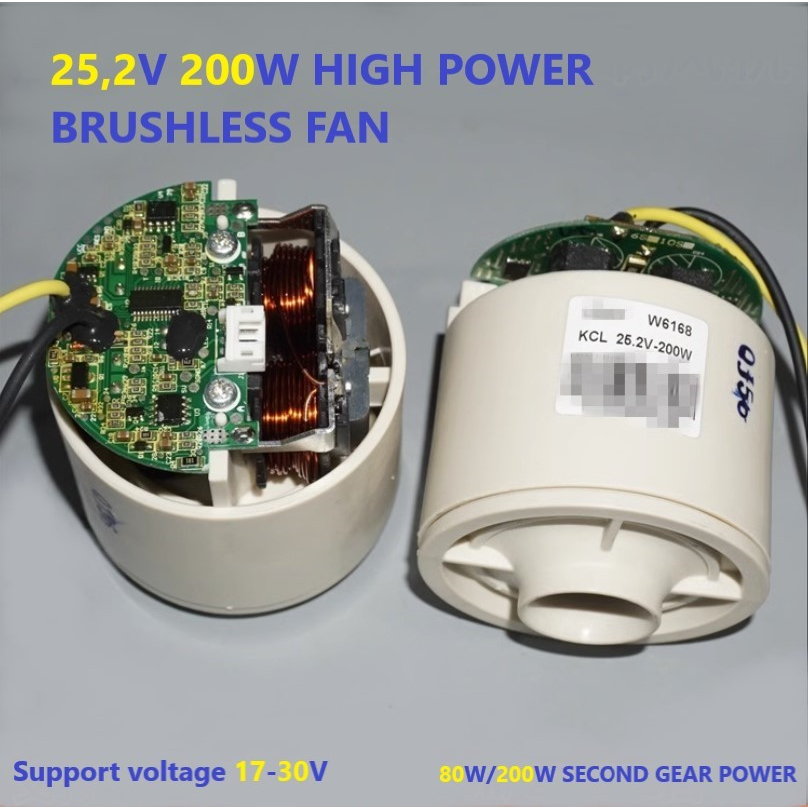

Dinamo Motor Brushless Strong Magnetic 12-18V

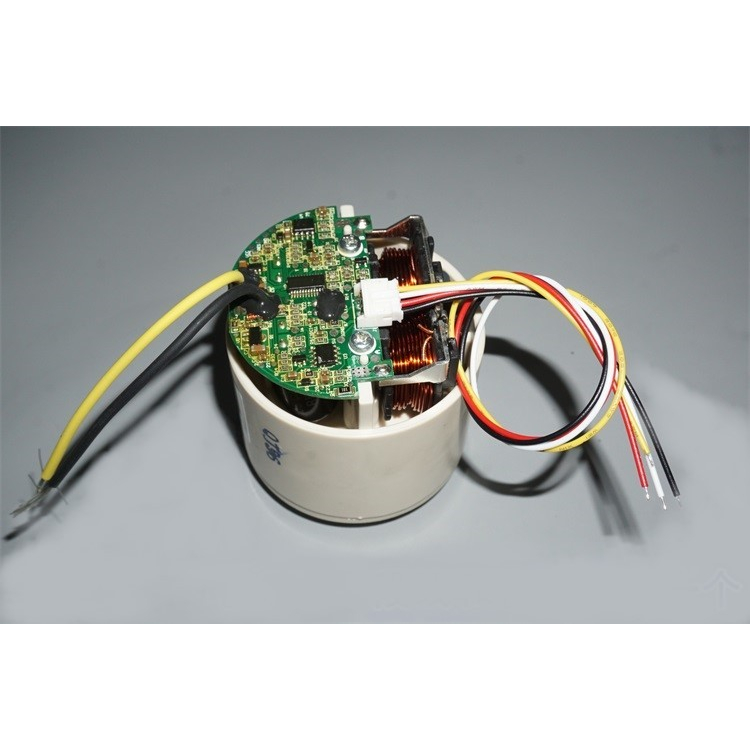

This motor was originally used on high-end rechargeable vacuum cleaners, the motor has a built-in high-power brushless drive, the speed is estimated to be around 8-10W, small size ultra-high-speed brushless motor.
The rated voltage of the motor is 25.2V, and the power is 200W. It should be powered by a 7S power lithium battery. The measured limit voltage is 17-30V. Protection, the motor has a second-speed power switch. The measured 24V voltage is about 80W at low speed 3.5A current, and about 200W at high speed 8.8A current.
It is recommended that the power supply be at least about 15A Or bigger, lithium batteries require high-current power cells, and the motor is suitable for refitting portable vacuum cleaners, or large-flow disinfection atomizing sprayers.

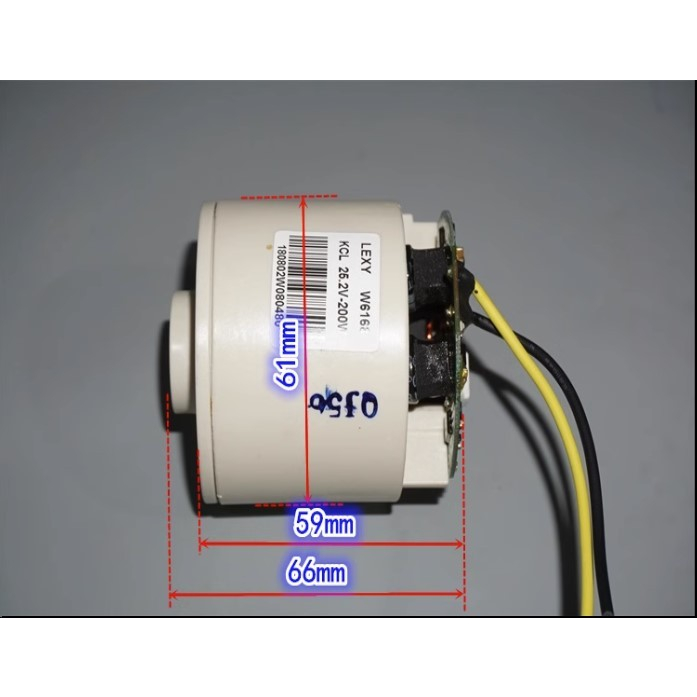

The motor weigth about 180 gram
