Detail Dinamo Motor Brushless Strong Magnetic 12-18V (7326)

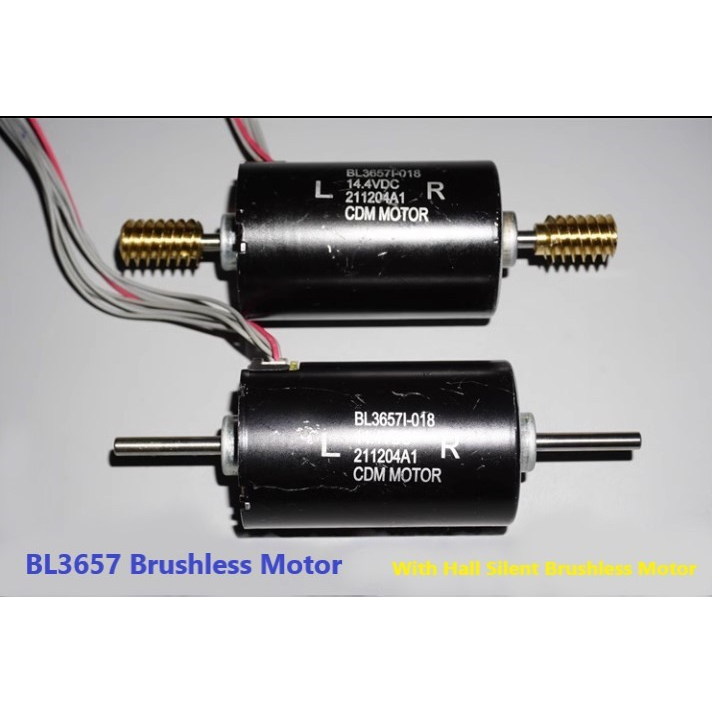

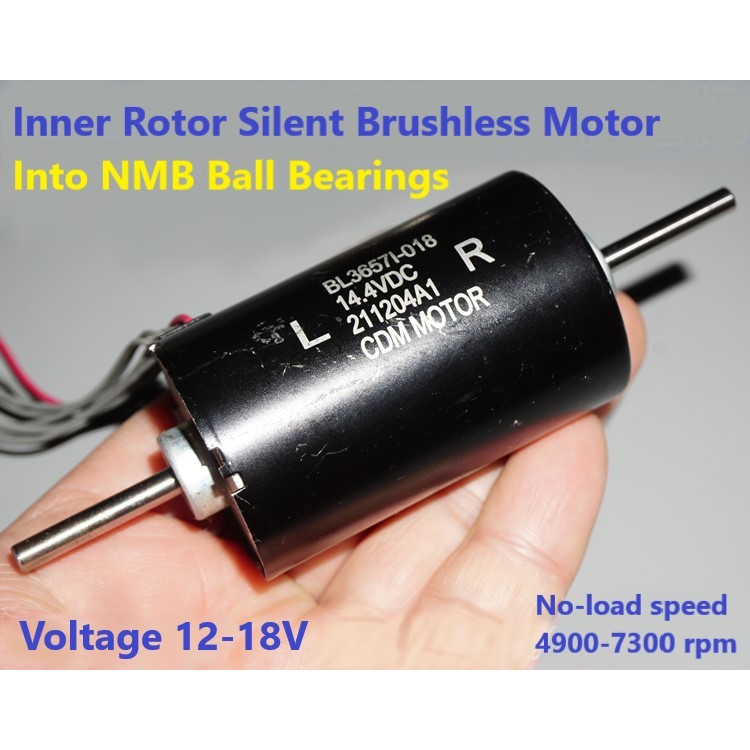

Dinamo Motor Brushless Strong Magnetic 12-18VMotor 3657 inner rotor brushless motor, three phase Hall brushless motor, without drive circuit, innner rotor with rare earth medium strong magnetism, front and rear imported NMB double ball bearings, rated voltage is DC 14,4V; applicable voltage is DC 12-18V. The motor runs quietly and has almost no vibration, the dynamic balance accuracy is good. The drive can be equipped with hall brushless drive, or it can be driven by brushless ESC.
The motor is nominally 14,4V and the measured 12-18V can run. The test no-load speed is as follows:
Voltage : 12V, no load current 0,3A, no-load maximum speed 4900 rpm
Voltage : 14V, no load current 0,31A, no-load maximum speed 5800 rpm
Voltage : 18V, no load current 0,32A, no-load maximum speed 7300 rpm
The motor weight 210 grams
