Detail Dinamo Motor 550 DC 12V Long Axis ( 550LX)

Rated voltage]: DC 12V

【Motor speed】:

At 12v voltage, about 3400 revolutions per minute;

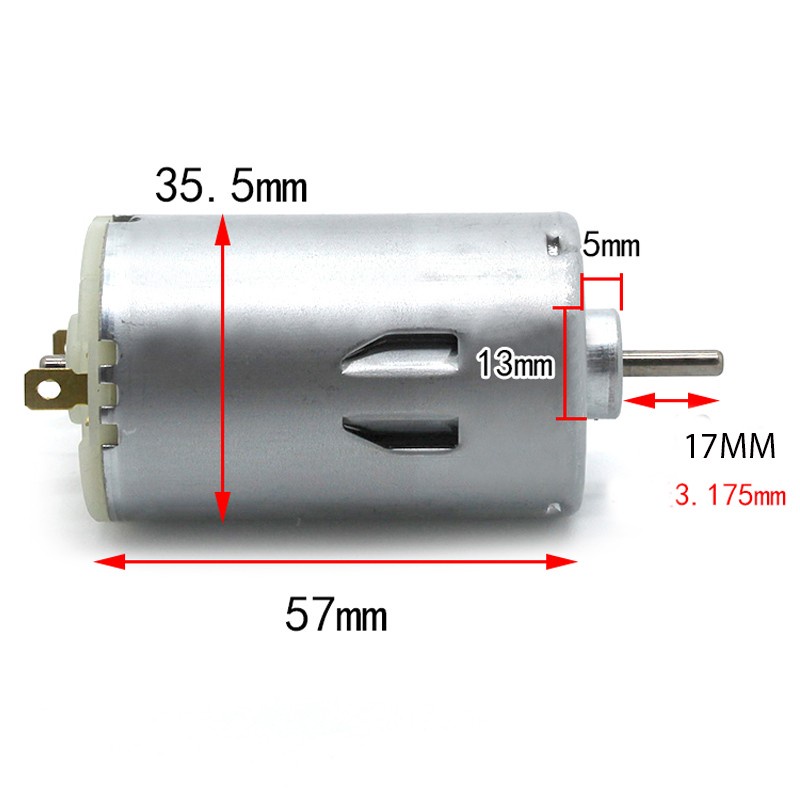

[Motor length]: about 57mm

[Motor diameter]: about 35.5mm

[Motor shaft diameter]: 3.17mm

[Motor shaft length]: about 17mm

[Step height]: about 5mm

[Step diameter]: 13mm

[Installation hole distance]: about 24.5mm

[Installation aperture]: M3

[Motor weight]: about 191.5g
