Detail Dinamo Motor 500 with copper gear 3V 6V 12V (500CX)

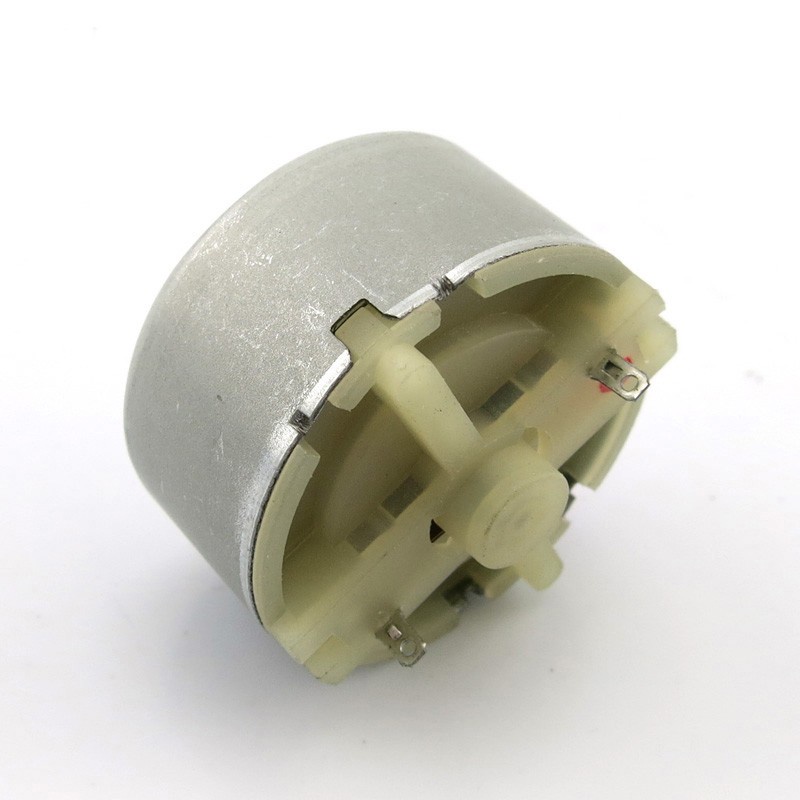

Dinamo Motor 500 with copper gear 3V 6V 12V (500CX)

500 model DC motor has long life of carbon brushes and stable operation.

[Motor diameter]: 32mm

[Motor thickness]: 19mm

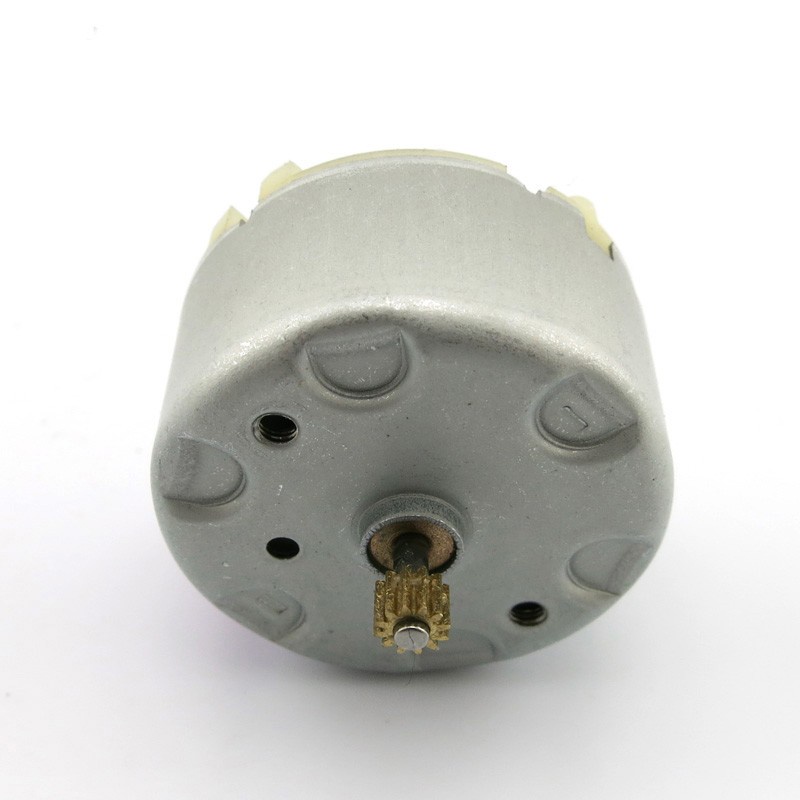

[Output shaft diameter]: shaft diameter 2mm, length 6.5mm, with 1 copper gear (gear diameter is about 4mm, modulus 0.3, 12 teeth)

[Product weight]: about 40 grams

[Voltage range]: 1-12V

[Motor test]: At 6V, no-load current is 20ma, locked-rotor current is 600ma

[Fixed screw]: M2.5 type screw

[About others]: This product is suitable for connecting solar panels (above 3V100ma)
