Detail Dinamo Motor 360 Dual AXIS DC 12V (360GX)

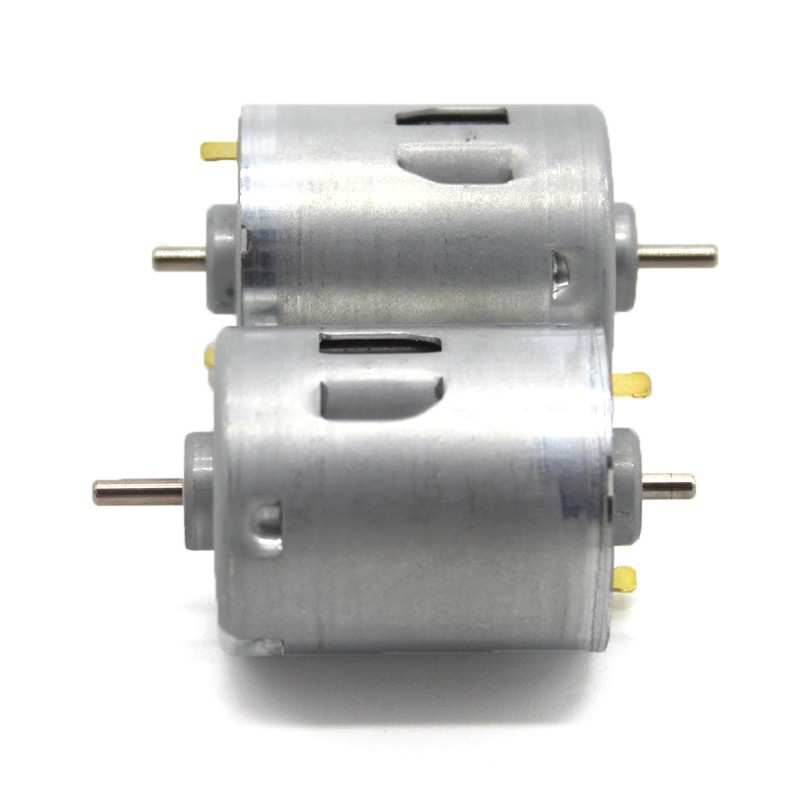

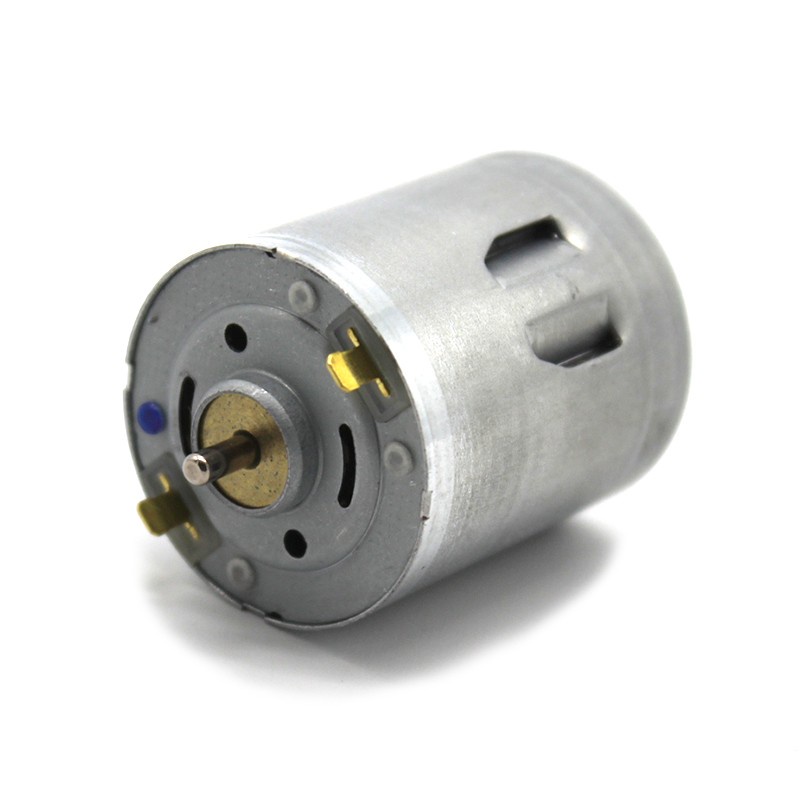

Dinamo Motor 360 Dual AXIS DC 12V (360GX)

360 dual-axis motor, pay attention to the shaft diameter is 2.3mm, the front and rear output shaft. It is a small motor for diy technology small production. Using 6-12V voltage, good workmanship and multiple uses.

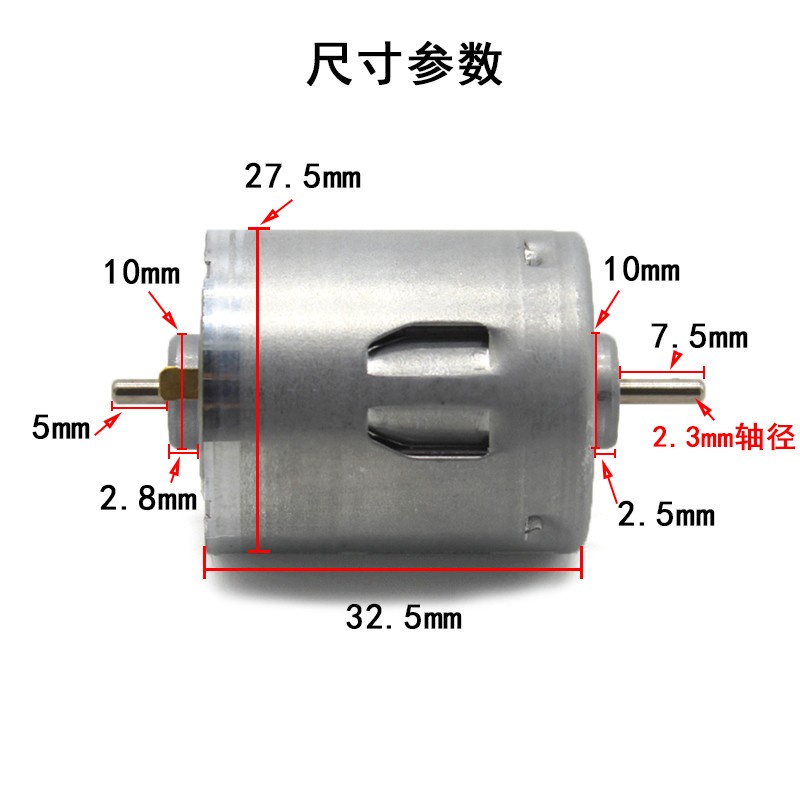

[Motor diameter]: 27.5mm

[Motor length]: 32.5mm

[Motor shaft diameter]: 2.3mm

[Step height]: 2.5mm

[Step diameter]: 10mm

[Motor shaft length]: The front output shaft is about 7.5mm, the rear output shaft is about 5mm

[Fixed hole distance]: about 16mm

[Fixed Aperture]: M2.5 screw

[Rated voltage]: DC6-12V

【Motor speed】:

At 6V, the speed is about 3600/min, the no-load current is about 0.07A, and the locked rotor is about 0.7A

The speed is about 7000/min at 12V, the no-load current is about 0.08A, and the locked rotor is about 1.33A

[Motor steering]: support forward and reverse

[Motor weight]: about 55 grams
