Detail Dinamo Motor 300 3V-6V Medium Axis ( 300DX)

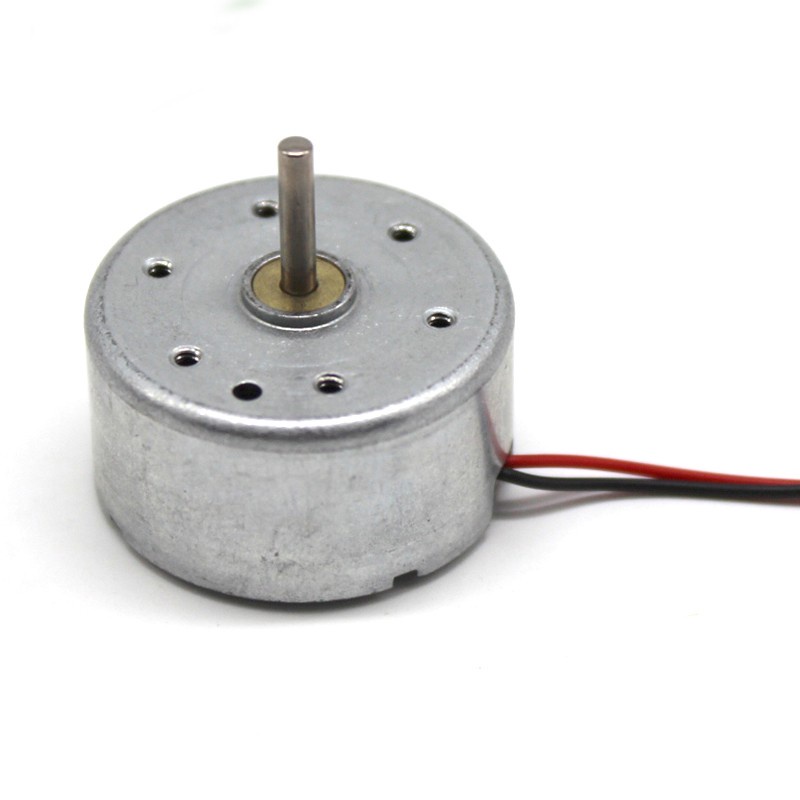

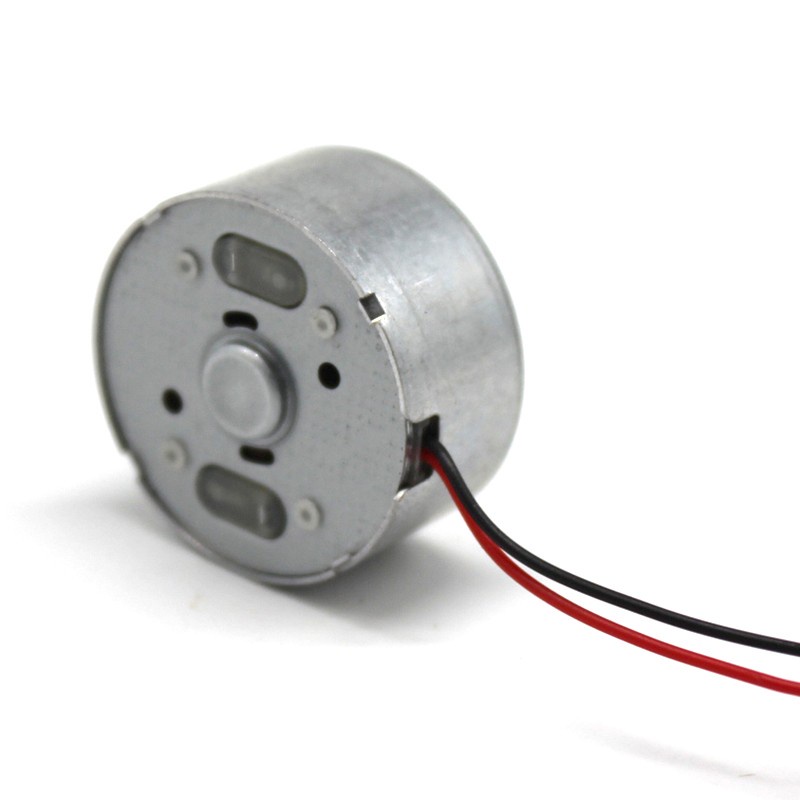

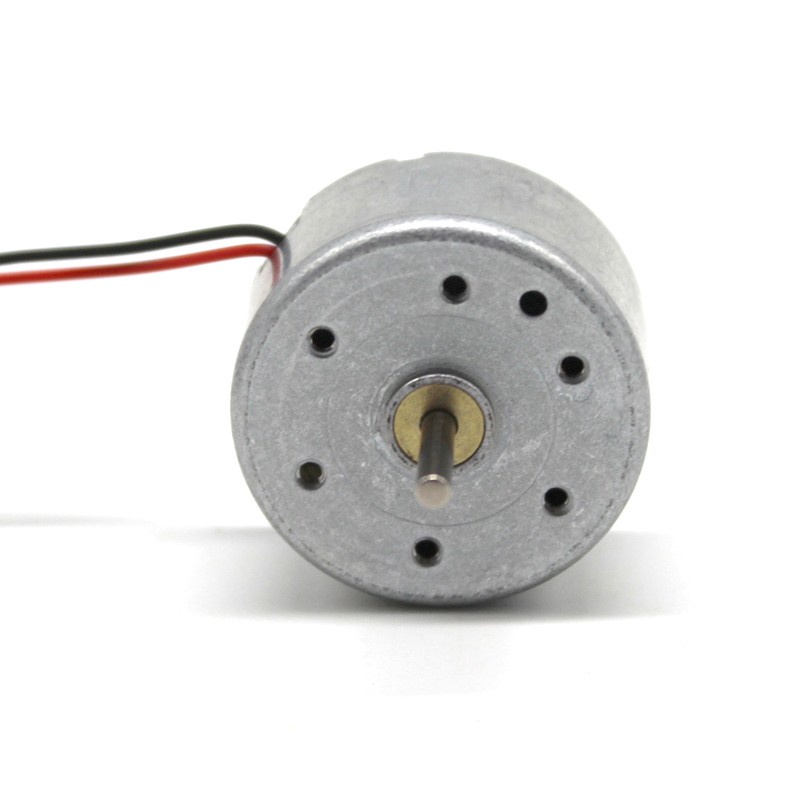

Dinamo Motor 300 3V-6V Medium Axis ( 300DX)

Small motor for solar small production, low noise and stable. The motor has its own wire, which can be welded to the solar panel for use. The 300 motor is very suitable for solar panel power supply. It only needs a little sunlight to drive this motor.

Diameter]: 24mm

【Height】: 12mm

[Shaft diameter]: 2mm

[Axis length]: 10mm

[Fixed Aperture]: 1.6mm

[Fixed hole distance]: 16mm

[Voltage]: 3v-6V

[Rotating speed of shaft length 9.5mm]:

At 3v, the speed is 2500/min, no-load current 0.06A, locked-rotor current 0.46A
At 6V, the speed is 4700/min, no-load current 0.1A, locked-rotor current 0.86A

[Rotating speed of shaft length 10mm]:

At 3v, the speed is 6000/min, no-load current 0.07A, locked-rotor current 0.5A
At 6V, the speed is 11000/min, no-load current 0.11A, locked-rotor current 0.9A

[Weight]: about 21 grams
