Mini DC GEARBOX Motor Brand : dunkermotoren - Germany Type Gearbox : PLANETARY
Electrical spec : Max Tegangan 18Vdc Tegangan kerja 12 - 18Vdc Arus nominal 0.37A Termination :2 wire
Motor test ( tanpa beban ) : Input 12Vdc output 510rpm Input 18Vdc output 700rpm
Mechanical Spec : Ratio planetary gearbox 1:6,25 Diameter gearbox 30mm Panjang gearbox 27mm Diameter shaf output 6mm Panjang shaft 17mm Diameter motor 30mm Panjang body motor 40mm - harga 1pcs.... setok banyak bisa langsung di order gan

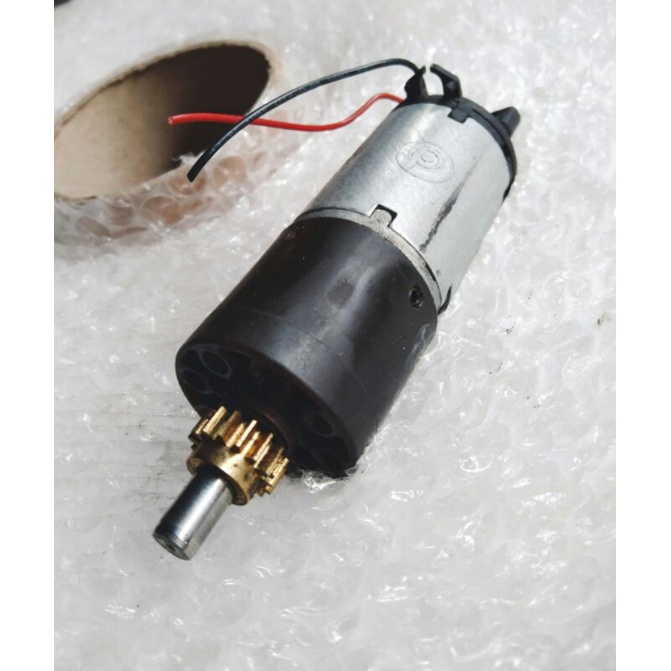

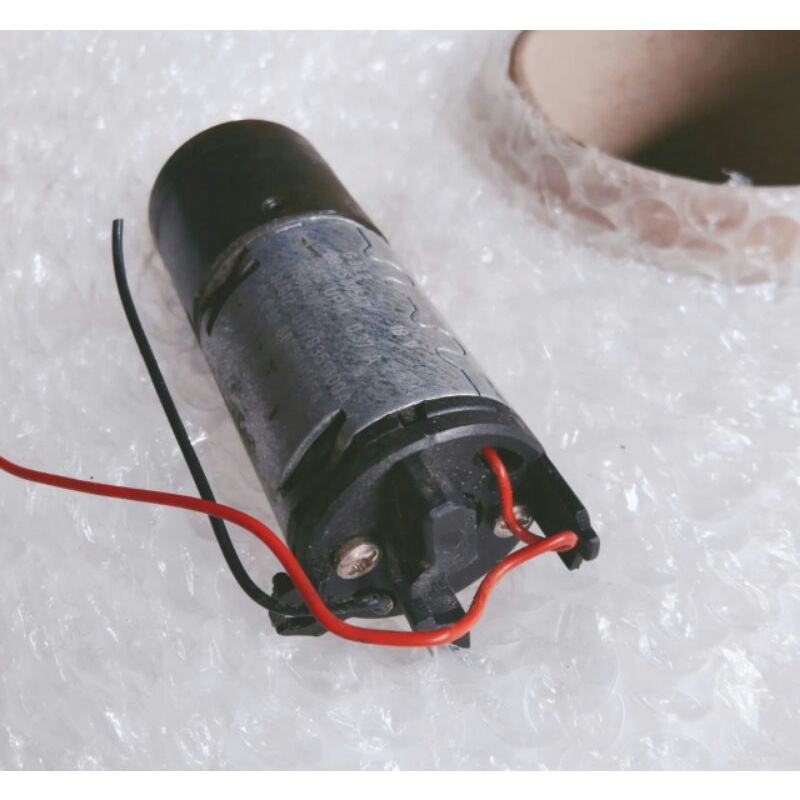

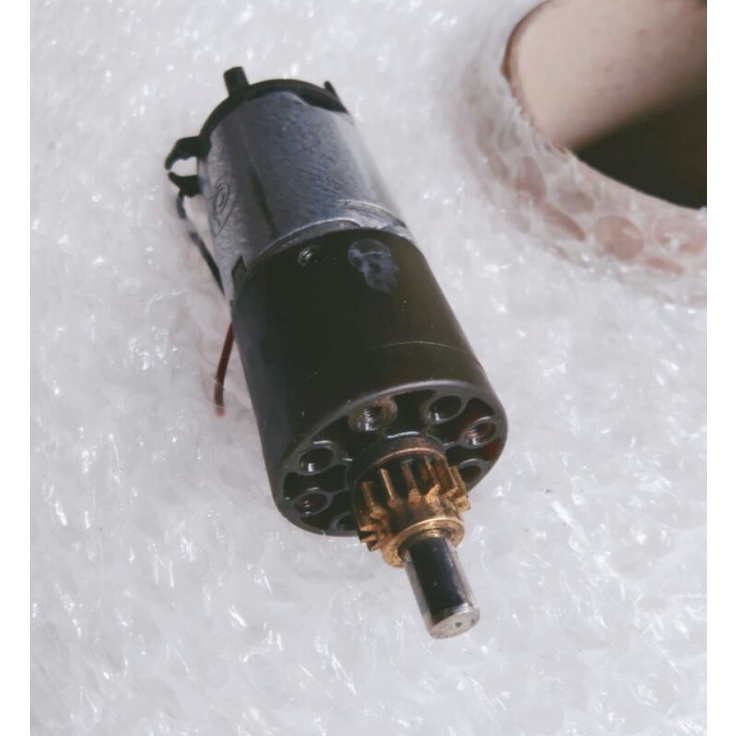

Gambar produk
