Dinamo Gearbox CENTER Shaft with Power Supply type 37GA520 (8206)

Elektronik > Elektronik Lainnya > Dinamo Gearbox CENTER Shaft with Power Supply type 37GA520 (8206)

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:BOOM ElectronicLihat semua produk Elektronik oleh BOOM Electronic

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail Dinamo Gearbox CENTER Shaft with Power Supply type 37GA520 (8206)

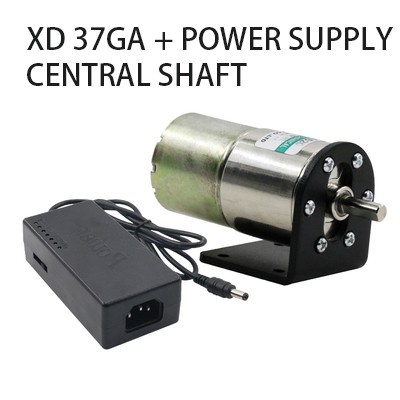

Dinamo Gearbox CENTER Shaft with Power Supply type 37GA520 (8206)

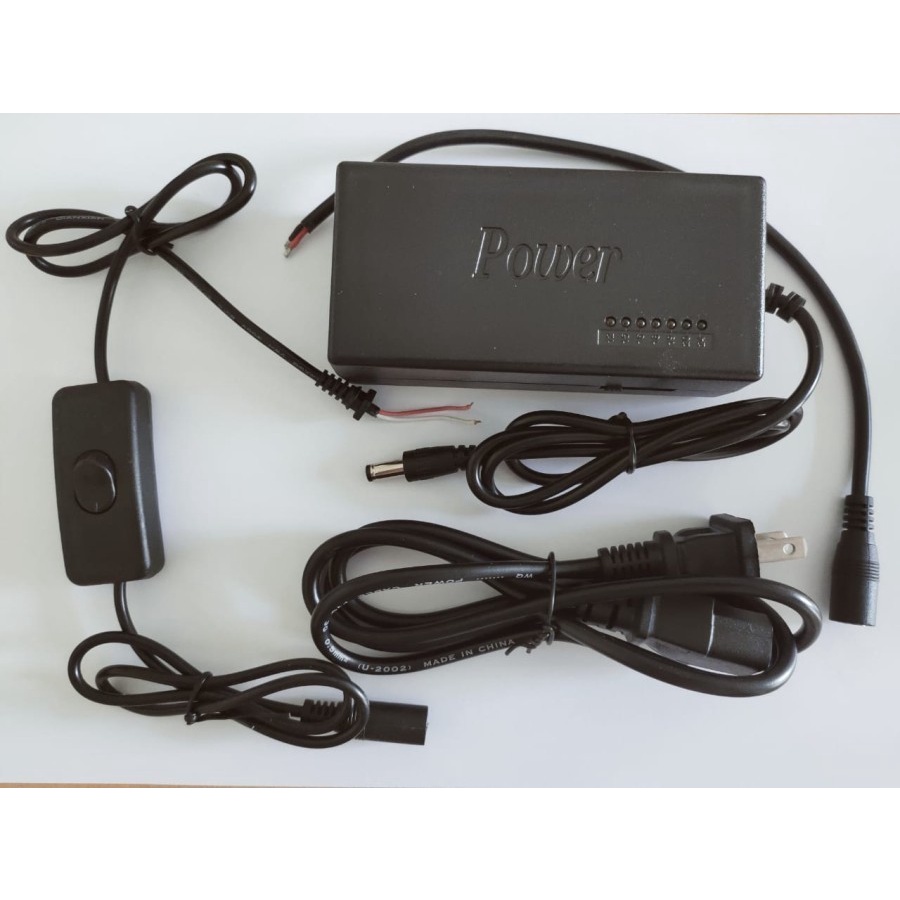

**Power Supply 12-24V
Input : 220V
Output : 12V-15V-16V-18V-20V-24V
Max : 4,5A ===>96 wattt
**Kabel 5.5*2.1 female pure copper power cord 10A===> 1pcs
**KAbel 5.5*2.1 ON-OFF===>1 pcs

** Bracket : 3mm Iron
Warna Hitam

DC gear motor DC12V micro brushed electric motor slow gear reducer speed regulation low speed motor
Central shaft motor speed

Voltage: 12V
Model: XD-37GA520
Running speed: low speed motor
Function Type:: DC Gear Motor
Power Phase: Other
Power Type:: DC Motor
SHAFT : d axis CENTER Shaft

Terdapat beberapa pilihan Speed sbb :

5 Rpm , 10 Rpm , 20 Rpm , 30 Rpm , 50 Rpm ,
100 Rpm , 150 rpm , 200Rpm , 300Rpm , 600 Rpm

*** Load Torsi

5Rpm = 23.4 kgf.cm
10Rpm= 11.7 kgf.cm
20Rpm=5.85 kgf.cm
30Rpm=3.9 kgf.cm
50Rpm=2.34 kgf.cm
100Rpm= 1.17 kgf.cm
150rpm =0.78kgf
200rpm= 0.6kgf.cm
300rpm=0.39kgf.cm
600rpm=0.19kgf.com

Yg didapat sbb :

1) dinamo Motor
2) Bracket
3) Power Supply
