Detail Dinamo Gear Motor D shaft 37 With Line 500 (500BX)

Dinamo Gear Motor D shaft 37 With Line 500 (500BX)

The 37-line 500 geared motor is suitable for four-wheel drive toys and robot models. It has the characteristics of large torque, good workmanship, low noise and stable output

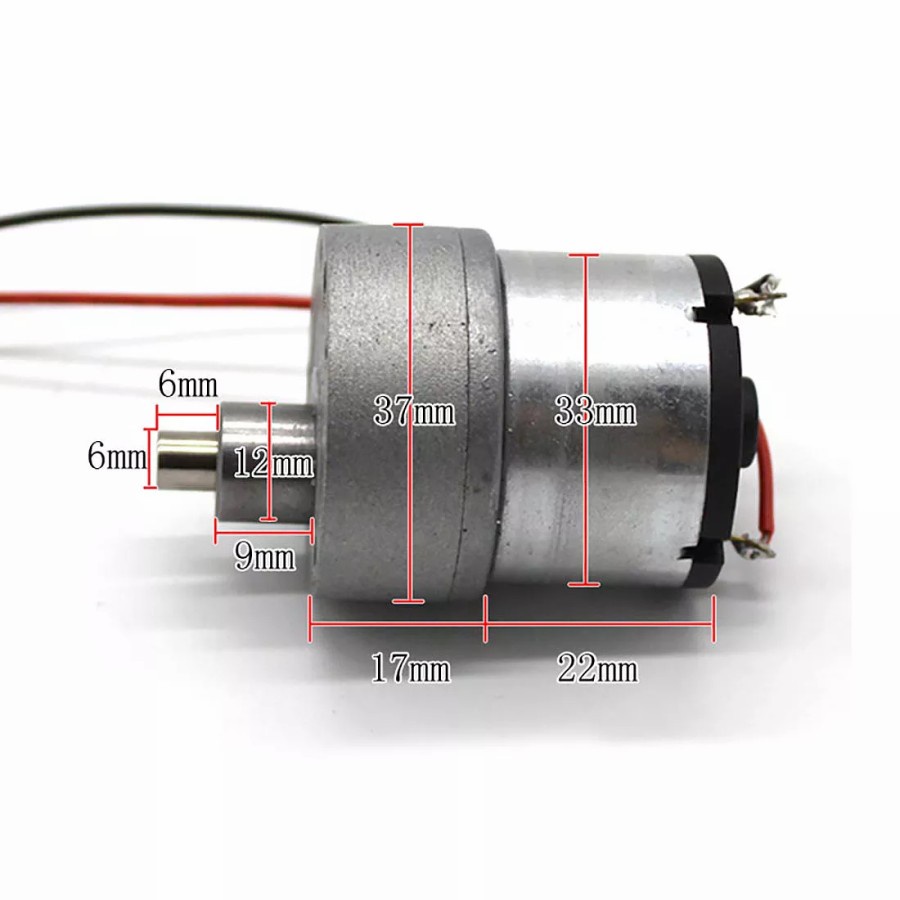

Voltage : 6-12V

Motor diameter]: 33mm

[Motor length]: 22mm

[Fixed Aperture]: 3mm (M3 Screw)

[Gearbox diameter]: 37mm

[Large box length]: 17mm

[step height]: 9mm

[step diameter]: 12mm

[Outlet shaft length]: 6mm

[Motor shaft diameter]: 6mm, D-axis

[Wire length]: about 13mm

[Motor weight]: about 118 grams

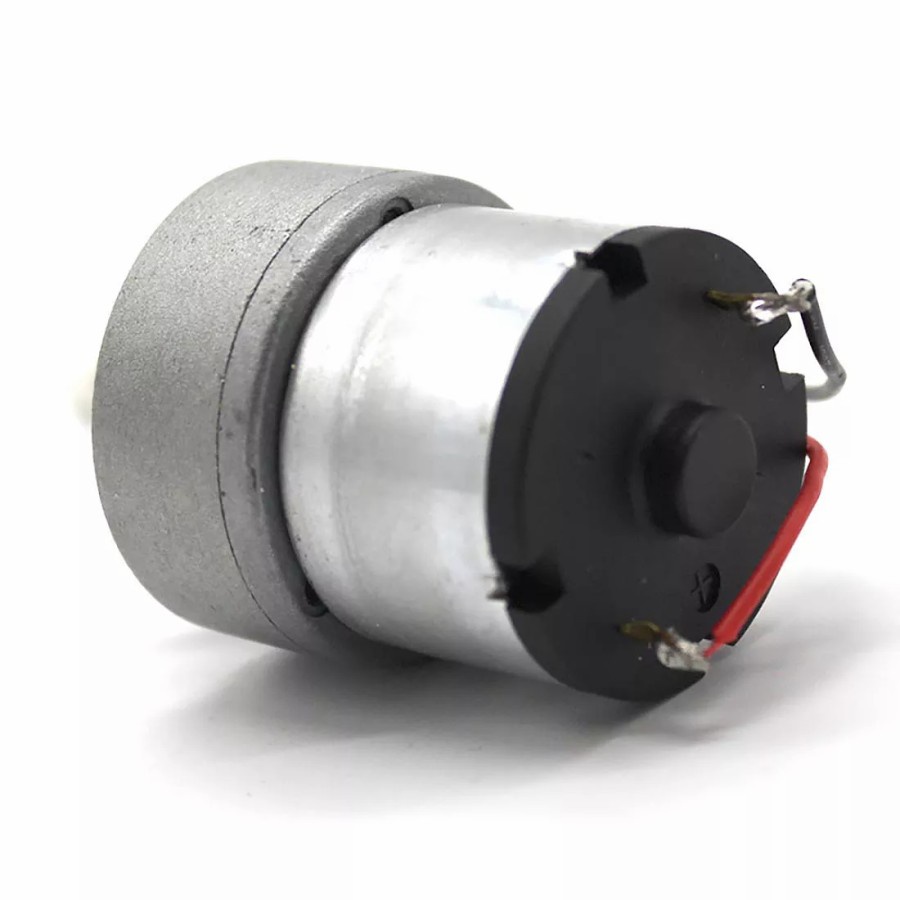

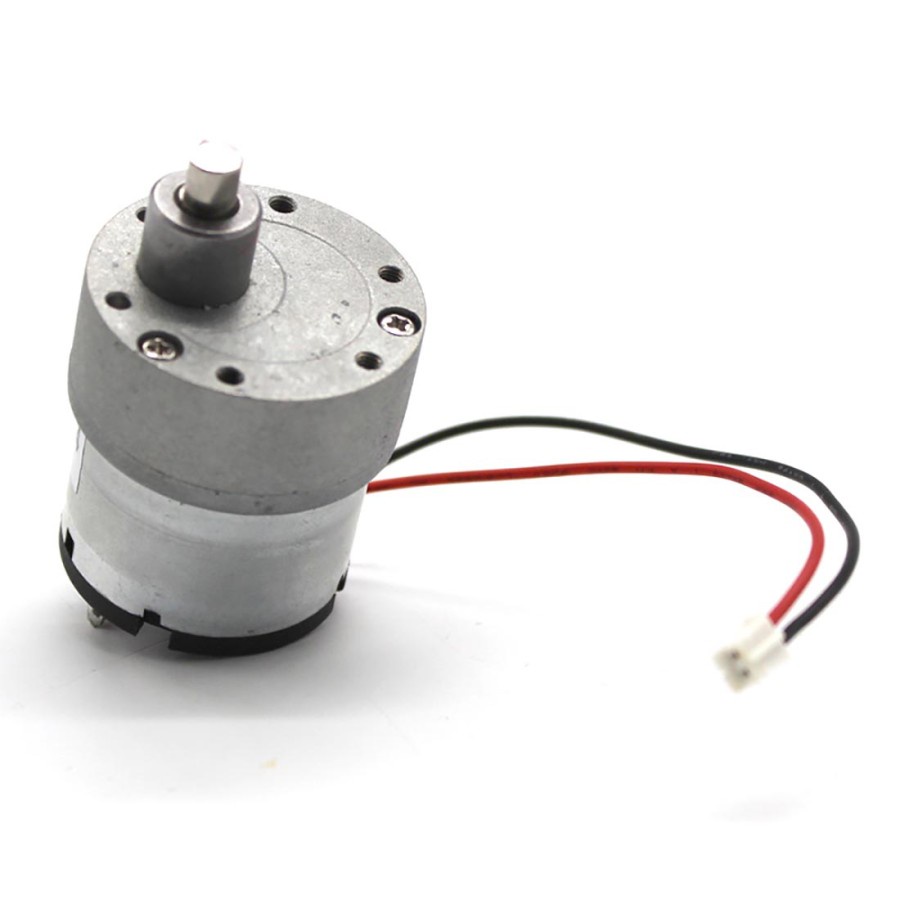

Gambar produk
