Detail Dinamo dc 775

Barang baru dan bergaransi..!!!

Dinamo 775 max 150 watt ready stock bisa langsung order ya.

Spec 775 high speed and torque.
775 DC Motor Front Ball Bearing, Large Torque, High Power, Low Noise
Rated voltage:24 V
Different voltage parameters:
DC 12V, current 0.14A, speed 3500RPM
DC 18V, current 0.15A, speed 4500RPM
DC 24V, current 0.16A, speed 7000RPM
DC 30V, current 0.17A, speed 8100RPM
DC 36V, current 0.20A, speed 9000RPM
DC 36V, current 1.0 A, speed 15000RPM

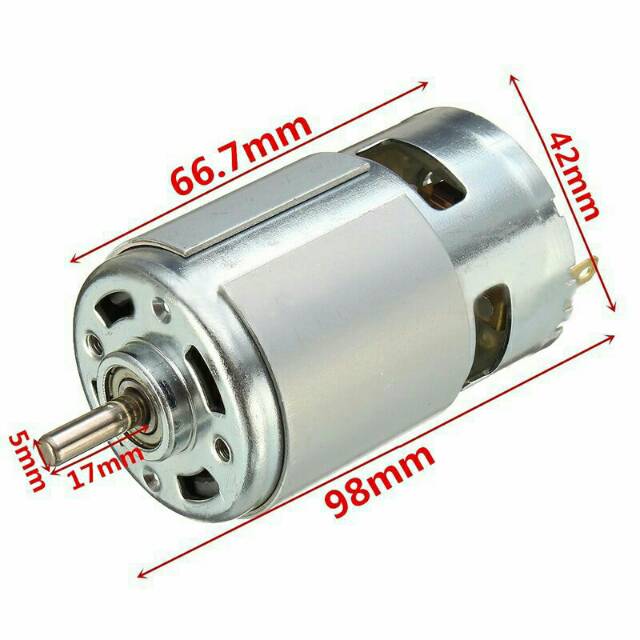

Shaft Diameter:5 mm/0.20 inch (Approx)
Shaft Length:17 mm/0.70 inch (Approx)
Body Length:66.7 mm/2.63 inch (Approx)
Front Steps Diameter:17.4 mm/0.69 inch (Approx)
Former High Level:4.7 mm/0.19 inch (Approx)
Body Diameter:42 mm/1.65 inch (Approx)
Motor Overall Length:98 mm/0.86 inch (Approx)
Diagonal Installation Pitch:28.8 mm/1.13 inch (Approx)
Mounting hole Size:M4
Mounting Hole:2
Cooling Fan:Yes
shaft version. D atau O (opsional)
Color: silver


Produk bergaransi, bila tidak berfungsi dapat di tukar(ongkir pp di tanggung pembeli)

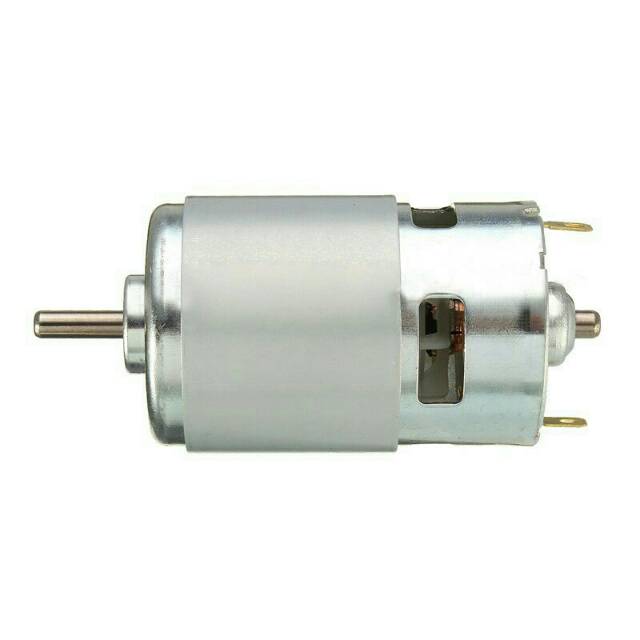

Gambar produk

Dinamo dc 775
Dinamo dc 775
Dinamo dc 775
Dinamo dc 775
Dinamo dc 775
Dinamo dc 775
