DINAMO DC 775 795 MOTOR LISTRIK 12V - 24V 12 V - 24 V HIGH TORSI TORQUE HIGH SPEED

Elektronik > Elektronik Lainnya > DINAMO DC 775 795 MOTOR LISTRIK 12V - 24V 12 V - 24 V HIGH TORSI TORQUE HIGH SPEED
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:praya storeLihat semua produk Elektronik oleh praya store
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail DINAMO DC 775 795 MOTOR LISTRIK 12V - 24V 12 V - 24 V HIGH TORSI TORQUE HIGH SPEED

READY STOCK SIAP KIRIM !!!!

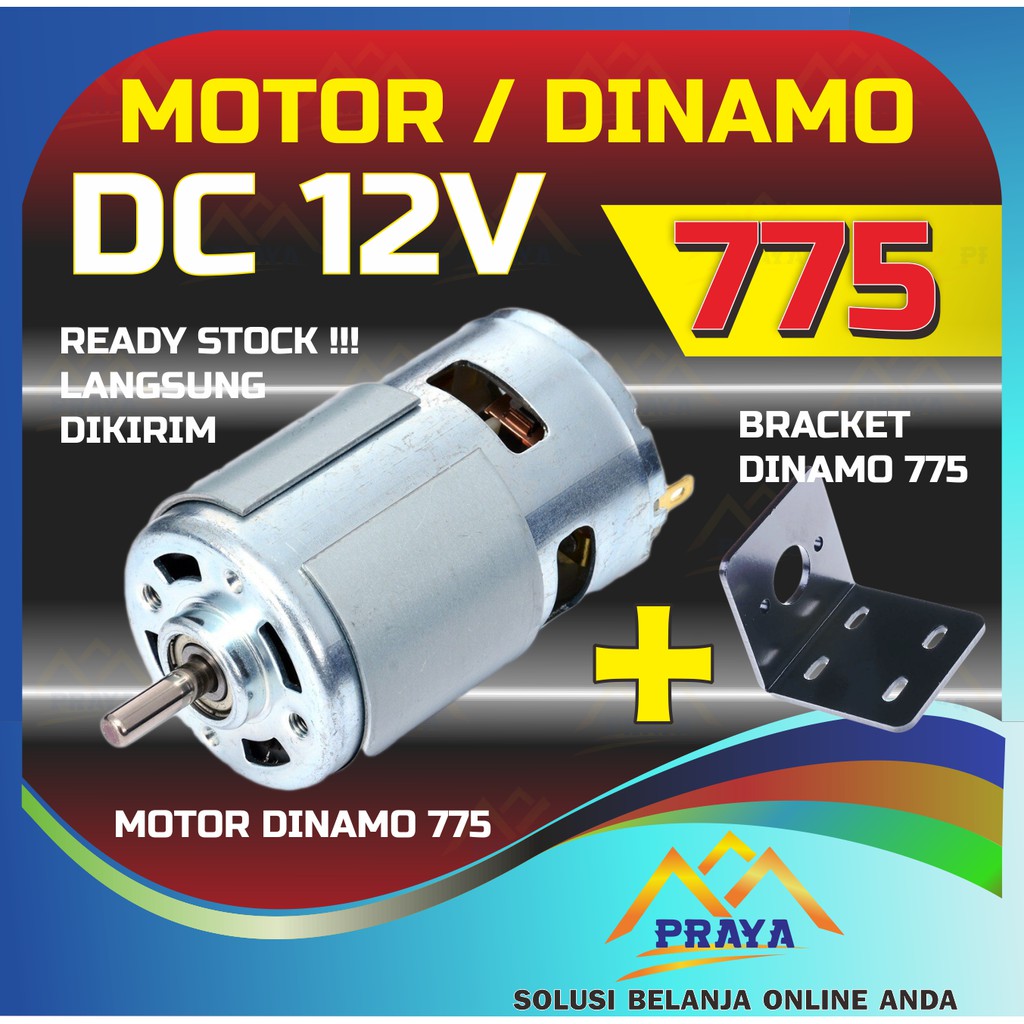

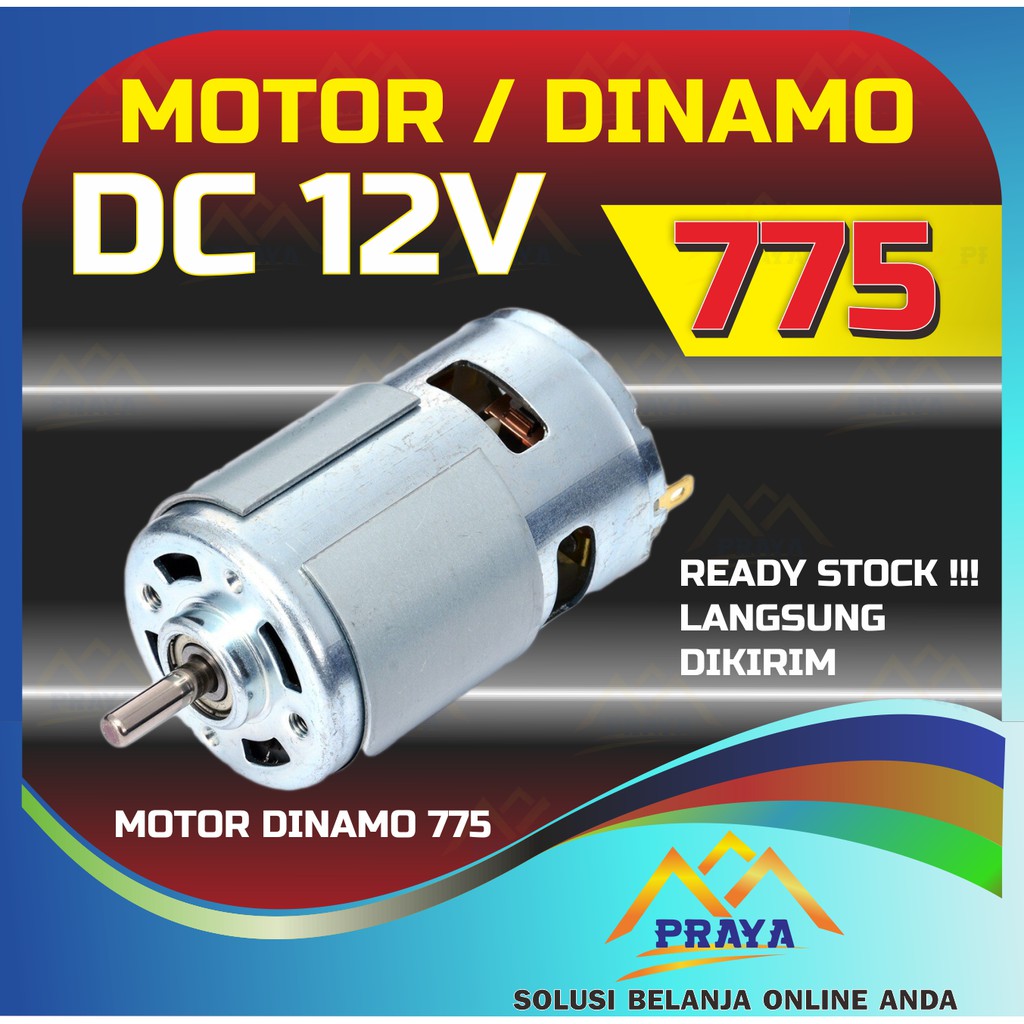

SPEK DINAMO 775

motor ball bearing motor
Speed: 12000 / min
Rated voltage: 12V
Rated power: 100W
Rated current: 1.2a
The diameter of axle: 5 mm
Weight: 343 g

Scope of application: car washing pump, spray machine, electric fan, shredder, etc
Note: switching power supply or battery dc power supply is recommended for starting current above 10A

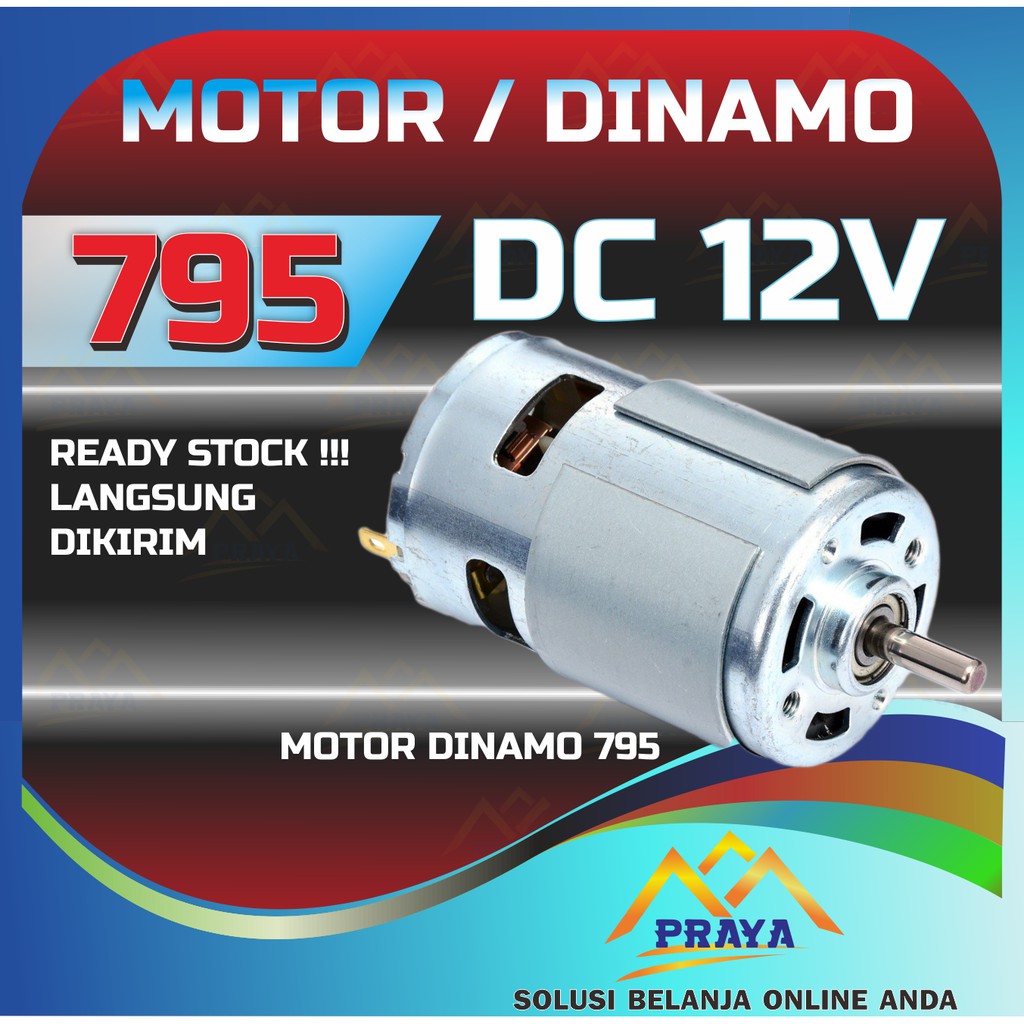

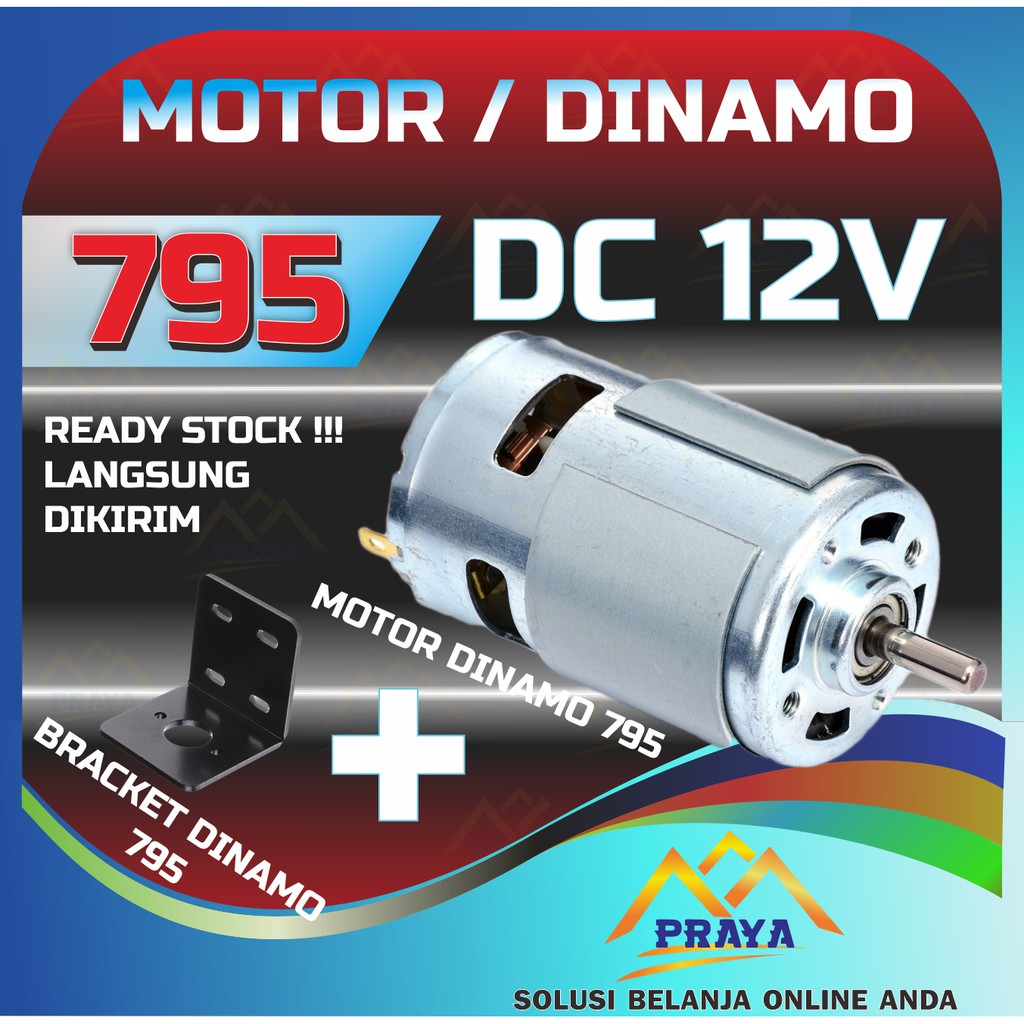

SPEK DINAMO 795

Speed max: 15000rpm / min
Rated voltage: 12V
Rated power: 100W
Rated current: 1.2a
The diameter of axle: 5 mm
Weight: 375 g

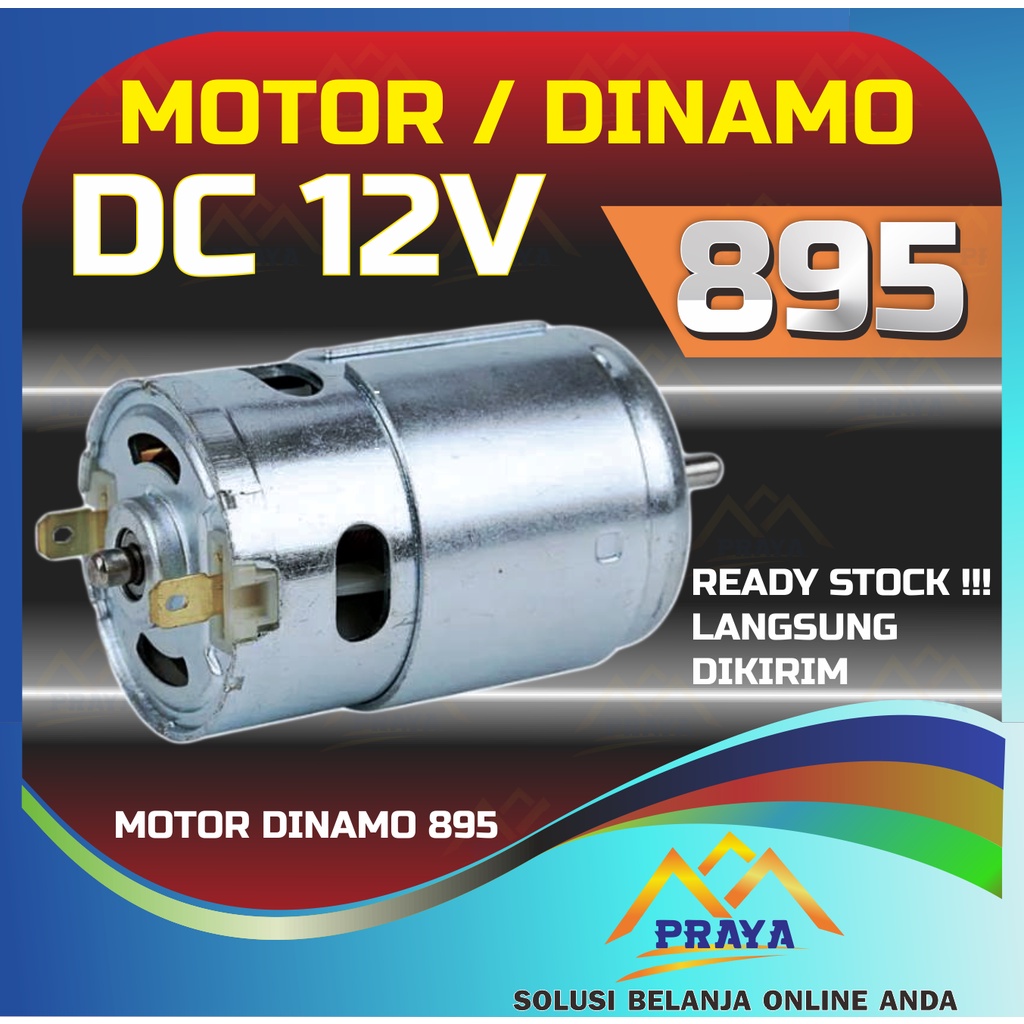

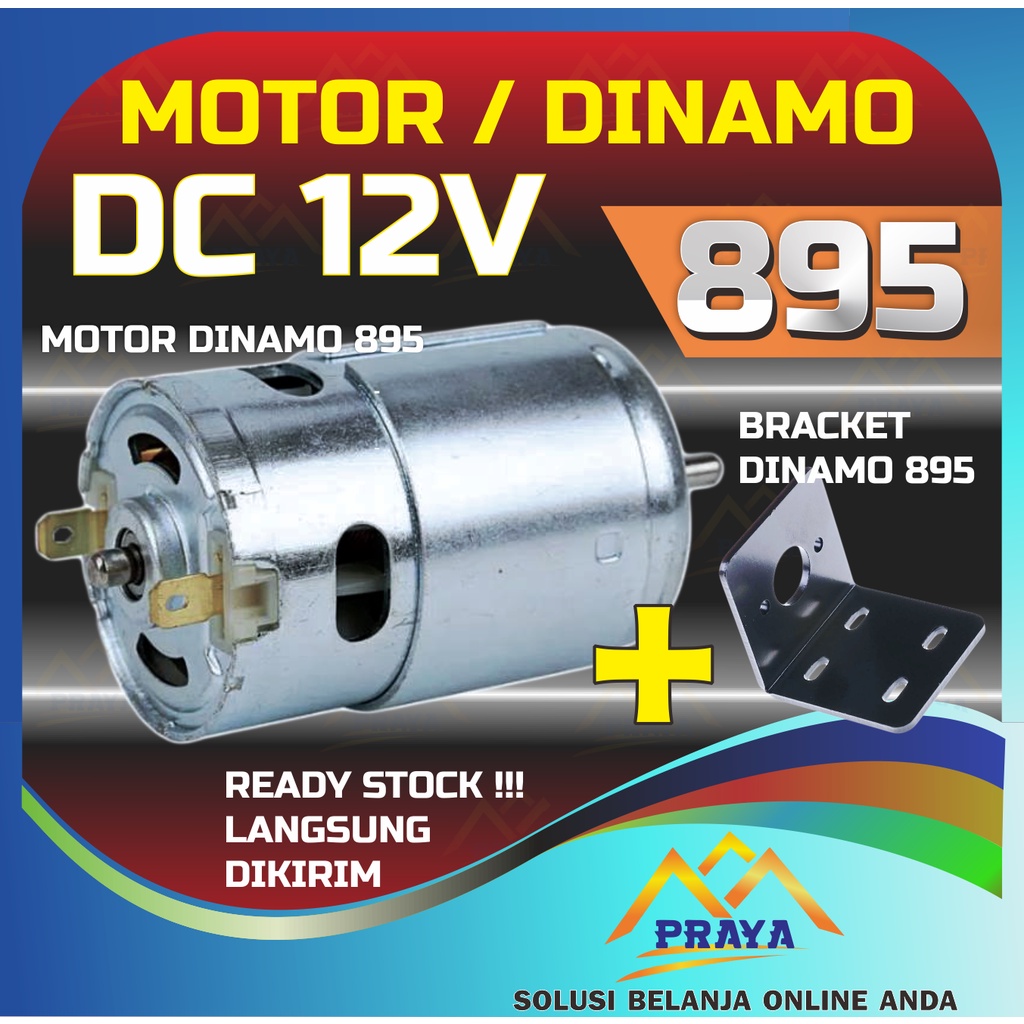

SPEK DINAMO 895

Item Type: Motor
Rated Voltage: DC12V -24V (the same motor can use 12 to 24V voltage)
Motor Step Height: Approx. 4.5mm / 0.18in
Motor Step Diameter: Approx. 18mm / 0.7in
Motor Diameter: 48mm, plus magnetic ring 50MM
Shaft Diameter: Approx. 5mm
Motor Tail Shaft Length: about 6mm
Max rpm = 20.000rpm at 360 watt
Weight: 460 g

Scope of application: car washing pump, spray machine, electric fan, shredder, etc

Note: switching power supply or battery dc power supply is recommended for starting current above 10A
