Dinamo DC 520 & 528 For Toy Accessories

Detail Dinamo DC 520 & 528 For Toy Accessories

Dinamo DC 520 & 528 For Toy Accessories

Two types of motors, good workmanship, good motor performance, multiple uses, suitable for scientific experiments and small technological productions, invented and created accessories, is a miniature motor.

Motor 520

Motor diameter: 32.5mm
Motor height: 22.8mm
Motor shaft diameter: 2mm shaft (cutting edge 0.6mm, cutting edge length 6mm)
Motor shaft length: 7mm
Fixed pitch: about 16.5mm
Fixed Aperture: 2.5mm
Voltage Range: DC6-12V
Motor speed: When 6V, the speed is about 2500/min;; when 12V, the speed is about 5000/min
Motor steering: Support positive and negative rotation
[Motor weight]: about 54 grams

Motor 528

Motor diameter: 32.5mm
Motor height: 29.4mm
Motor shaft diameter: 2mm shaft
Motor shaft length: 8mm
Fixed pitch: about 16.5mm
Fixed Aperture: 2.5mm
Voltage Range: DC12-24V
Motor speed: When 12V, the speed is about 1600/min; when 24V, the speed is about 3300/min;
Motor steering: Support positive and negative rotation
Motor weight: about 72 grams

Silahkan dipilih pada varian produk untuk dinamonya, harga tertera 1 pcs dinamo sesuai dengan varian tipe dinamo yang dipilih

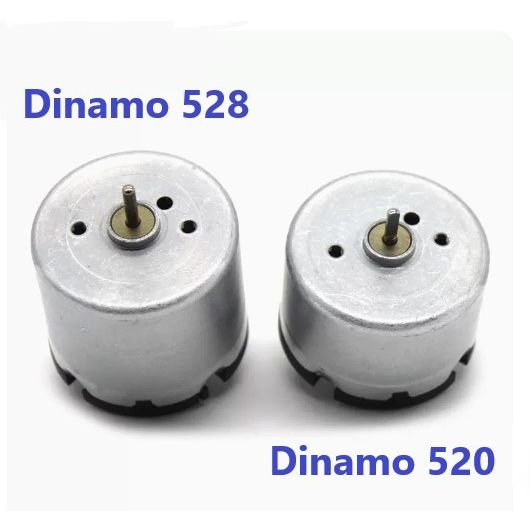

Gambar produk
