Dinamo DC 3-12V Large Torque High Speed Motor 9V 20W

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Dinamo DC 3-12V Large Torque High Speed Motor 9V 20W
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:donicovaLihat semua produk Audio oleh donicova
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Dinamo DC 3-12V Large Torque High Speed Motor 9V 20W

Specifications:
Voltage range: 3.0-12V
Rated voltage: 9V
No load speed: 20160
No load current: 680mA
Maximum current: 3.8A
Rated torque: 600G.for cm
Rated power: 20W
Starting torque: 1000G.for cm

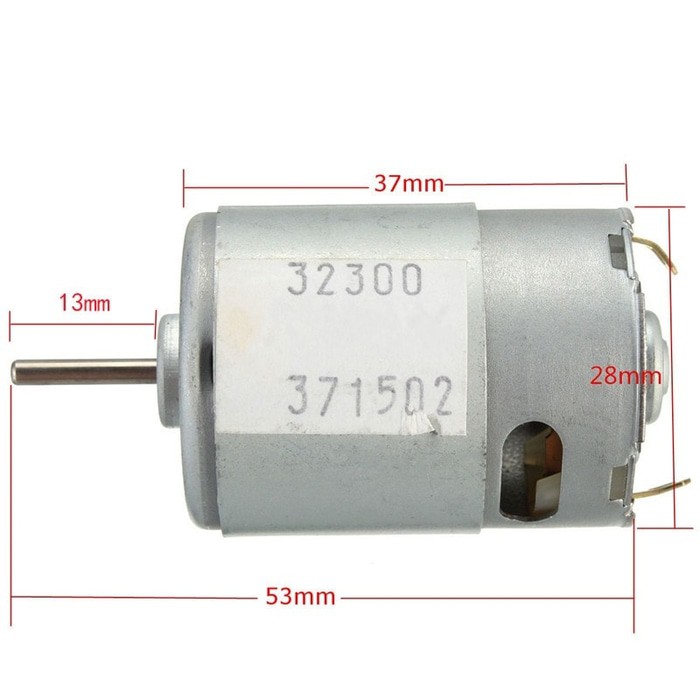

Size about:
Diameter 27.7mm,
Length 38mm,
Shaft diameter 2.3mm,
Axial length 12.7mm

Used in household appliances, kitchen equipment, electric tools, drills and electric screwdrivers.

Following is a no-load speed and current values for different voltages:
3V 6915rpm 0.52A
6V 14395rpm 0.66A
9V 21095rpm 0.68A
12V 29326rpm 0.80A

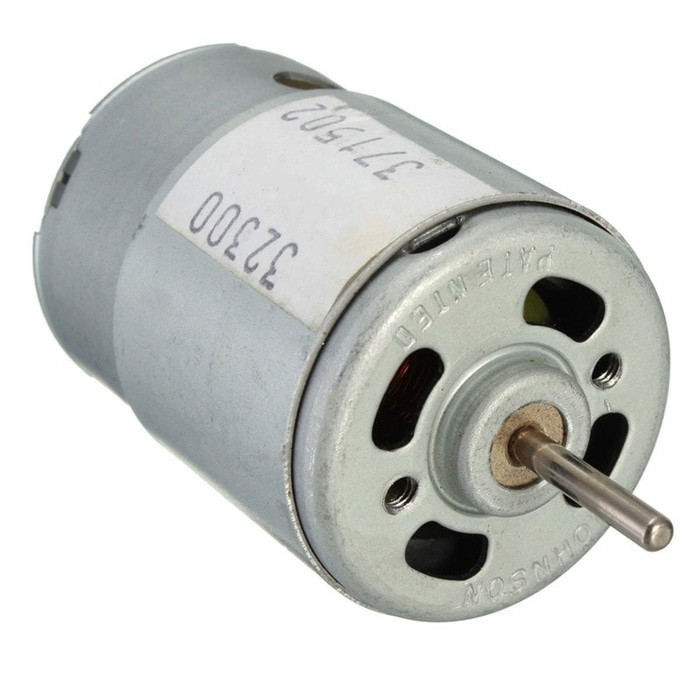

Gambar produk

Dinamo DC 3-12V Large Torque High Speed Motor 9V 20W
Dinamo DC 3-12V Large Torque High Speed Motor 9V 20W
Dinamo DC 3-12V Large Torque High Speed Motor 9V 20W
Dinamo DC 3-12V Large Torque High Speed Motor 9V 20W
Lihat lebih banyak informasi produk
