Din Rail Digital Over Under Voltage Current Protection 63A 230V

Detail Din Rail Digital Over Under Voltage Current Protection 63A 230V

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

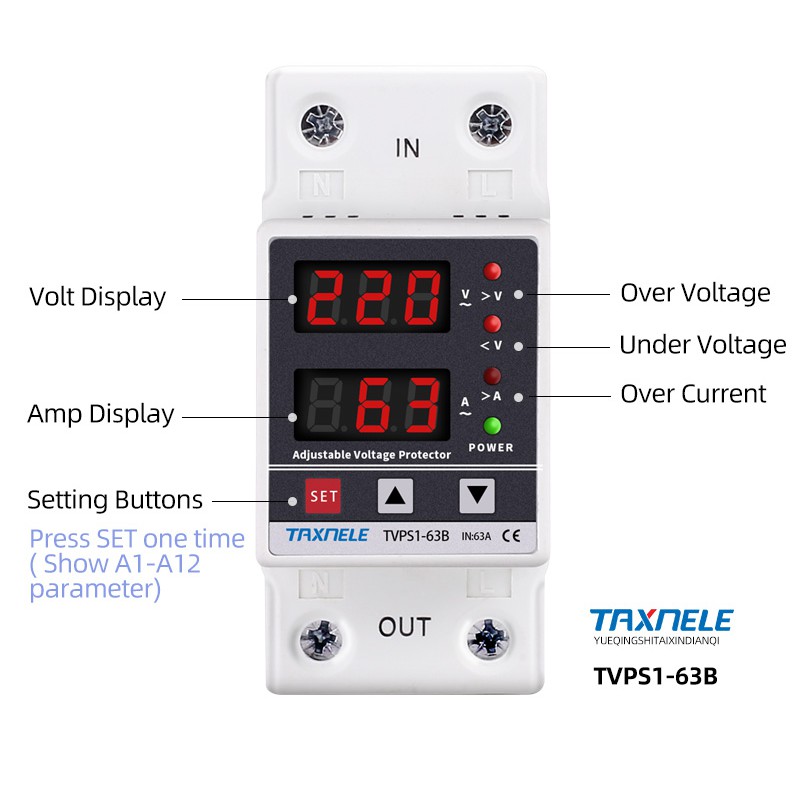

5.Voltage display(voltage measurement)
6.Current display (current measurement)

Product Parameters:
1.Model number:TVPS1-63B
2.Power supply:230VAC 50/60Hz
3.Max.Loading power: 1~63A Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
11.Installation: 35mm DIN rail

Noted: When you first connect the product, you have to wait about 10 second( Power-on delay time:1 s~50 0s(default:10 s)), after the red light turn off, then the product will work.
