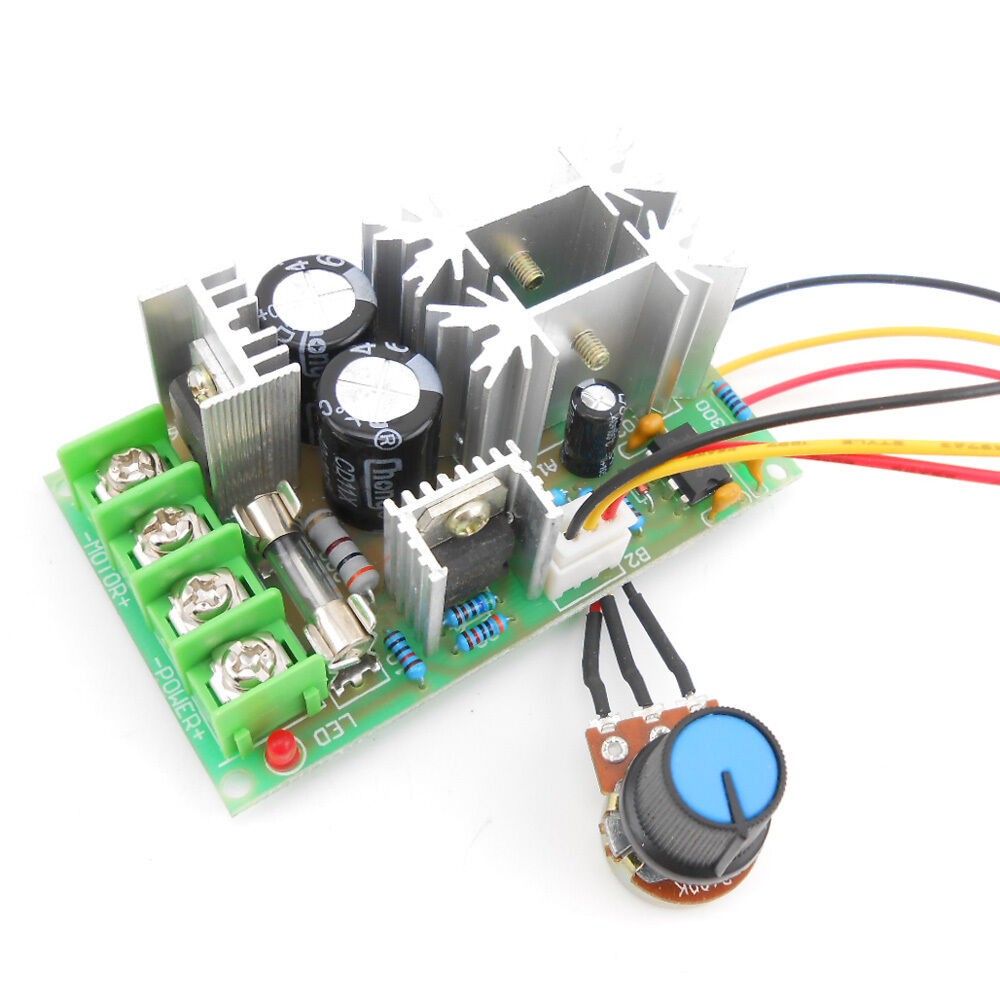

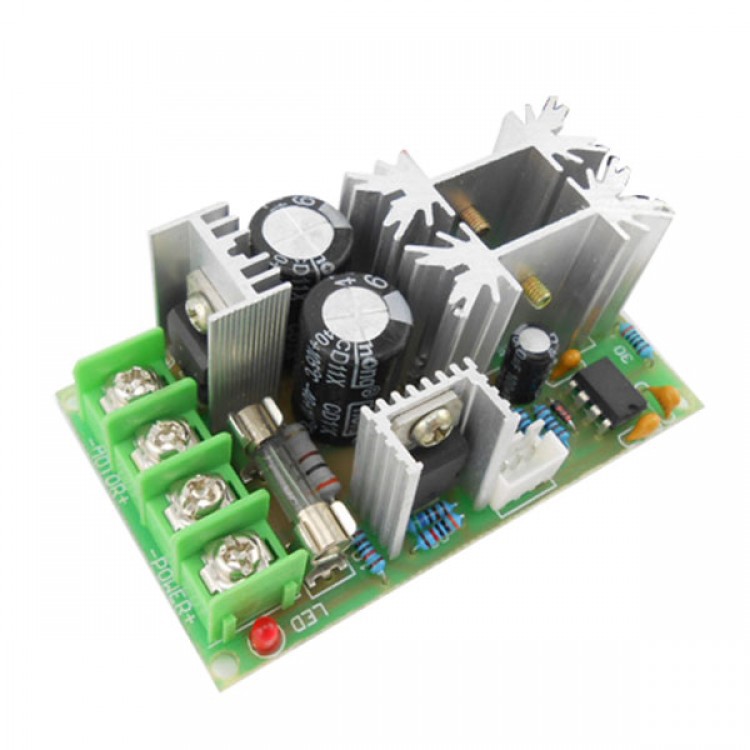

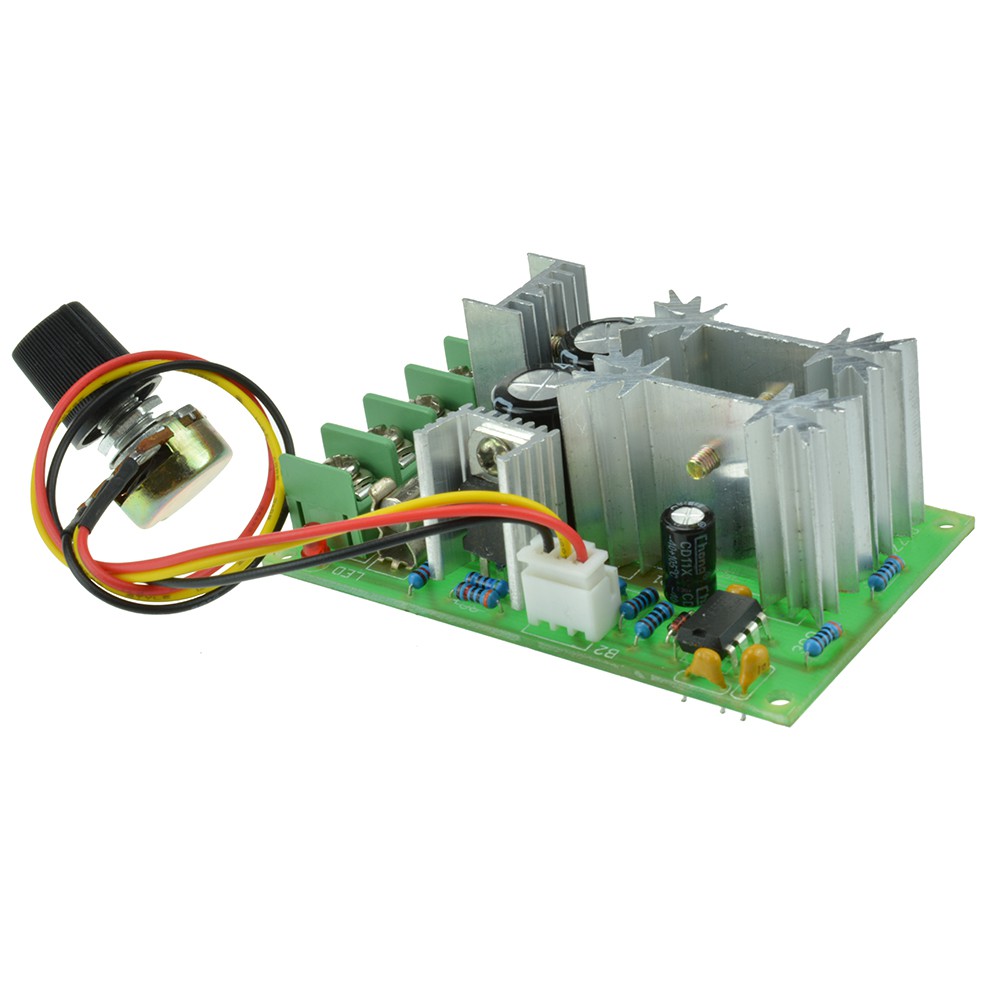

Detail Dimmer PWM 20A / Speed controller DC 9-60V

DC motor speed controller. PWM LED Dimmer for DIY LED Panel Light LED Strip Light
DC 10-60V 20A PWM Motor Speed Controller. Wide voltage DC motor speed controller, PWM duty cycle: 1% -100%.
Specificaions
Input voltage: DC10-60V
Output voltage type: Load Linear
Output Current: 0-20A
Continuous power: 1200W
Speed Type: adjusting flow
Speed mode: potentiometer (linear)
Speed range: 0 - 100%
Control frequency: 25KHZ
Connection Type: Barrier Terminal Block
Knobs Cord length: 20CM
Module size: (L * W * H) 77MM * 45MM * 28MM
Product net gain: 73 g
Board Mounting size: (L * W) 73MM * 40MM
Potentiometer installed opening hole size: 7MM
