Dimmer potensio pengatur kecepatan motor DC/ Pompa Air DC 12V

Detail Dimmer potensio pengatur kecepatan motor DC/ Pompa Air DC 12V

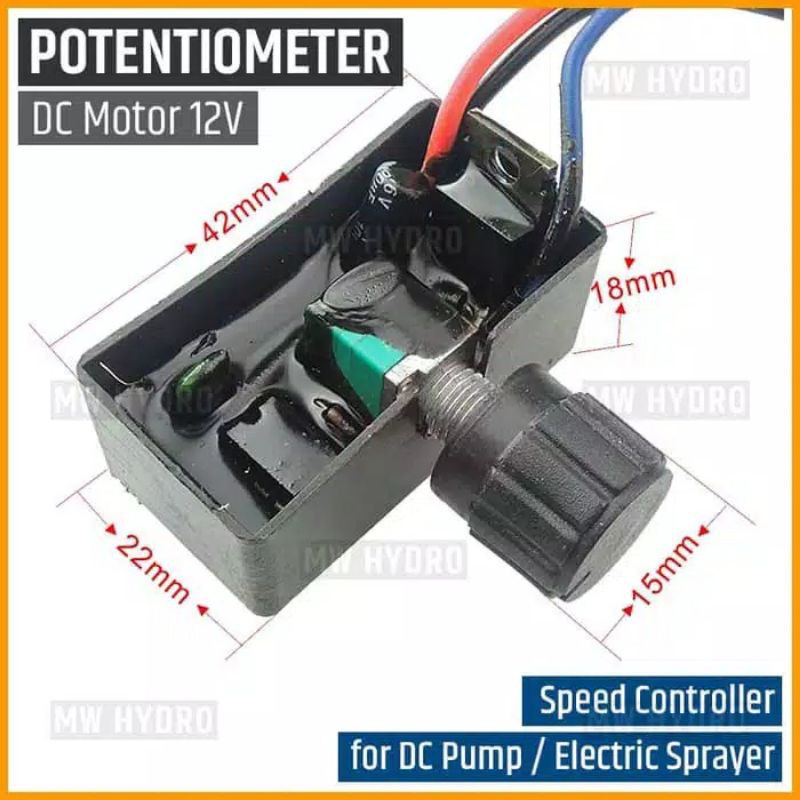

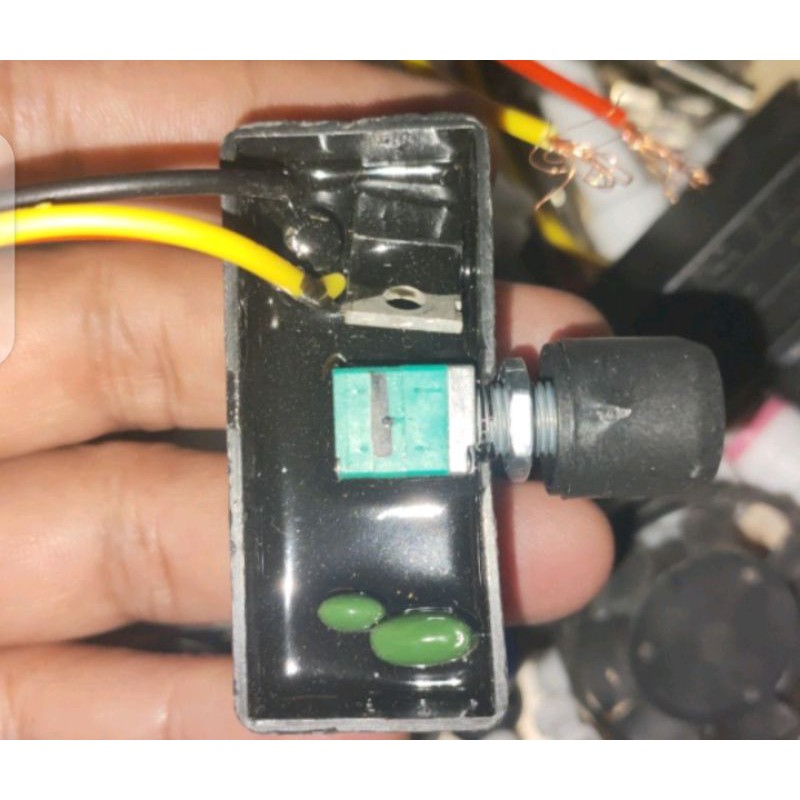

Kwalitas terbaik,mesin dicor(lihat gambar) sehingga komponen lebih awet dan aman

Potensio Pompa Air DC 12V, Speed Controller DC Pump /Dinamo Electric Sprayer bekerja dengan mengatur voltase listrik DC sehingga dapat mengontrol kecepatan putaran motor, dengan demikian tekanan air outlet dapat disesuaikan sesuai kebutuhan.

Untuk sistem misting, potensio ini dapat digunakan untuk mengatur tekanan pompa agar tidak terlalu tinggi jika nozzle yang digunakan berjumlah sedikit/untuk mengatur kecepatan pada Dinamo motor dc

Untuk mengatur kecepatan motor/dinamo dc

Untuk dipake penurun tegangan pada cas batre/accu dari ouput adaptor 12V ke 5V /3,5V

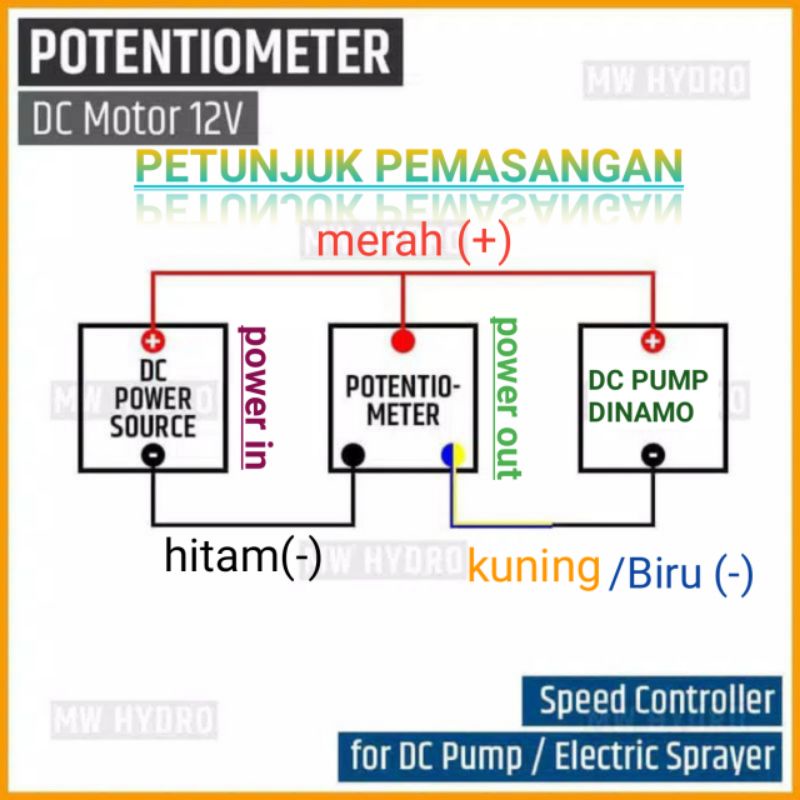

Potensio dihubungan dari sumber daya listrik DC (dapat berupa baterai aki, output dari DC adaptor atau power supply) ke pompa dengan sambungan sebagai berikut:

- Kutup positif (warna merah) aki / power supply DC dihubungkan ke kabel warna merah potensio sekaligus ke kabel warna merah motor dinamo/pompa air
- Kutup negatif (warna hitam) aki / power supply DC dihubungkan ke kabel warna hitam (-)potensio.
- Kabel warna kuning(-) potensio dihubungkan ke kabel warna hitam pompa/motor dinamo

Perhatian:
Kesalahan penyambungan kabel dapat menyebabkan terbakarnya alat dan tidak ada garansi penukaran alat karena kesalahan penyambungan.

The best quality, the machine is casted (see picture) so that the components are more durable and safe
Potentio DC 12V Water Pump, Speed ​​Controller DC Pump / Dinamo Electric Sprayer works by adjusting the DC voltage so that it can control the rotation speed of the motor, thus the outlet water pressure can be adjusted as needed. For misting systems, this potential can be used to adjust the pump pressure so that it is not too high if the nozzle used is small / to adjust the speed of the dc motor dynamo To set the speed of the dc motor/dynamo To use a voltage drop on the battery / battery charger from the 12V to 5V / 3.5V adapter output The potential is connected from a DC power source (can be a battery, output from a DC adapter or power supply) to the pump with the following

connection:
- The positive pole (red color) of the battery / DC power supply is connected to the red wire of the potentio as well as to the red wire of the dynamo motor / water pump
- The negative pole (black) of the battery / DC power supply is connected to the black (-)potential cable.
- The yellow wire (-) of the potentiometer is connected to the black wire of the dynamo pump/motor Attention: Incorrect wiring can cause the appliance to burn out and there is no guarantee of replacement of the appliance due to incorrect connection
