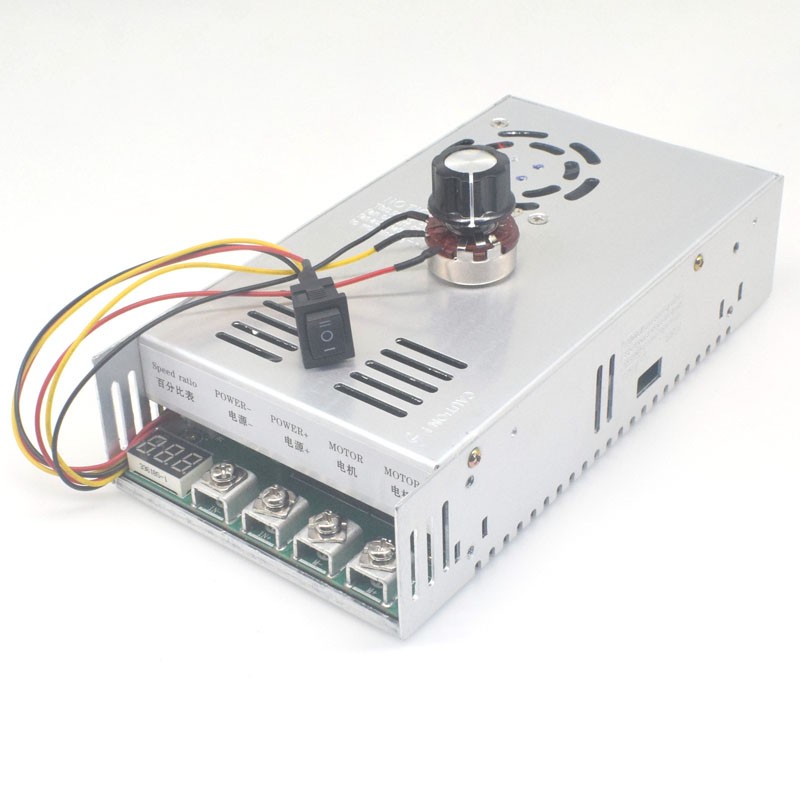

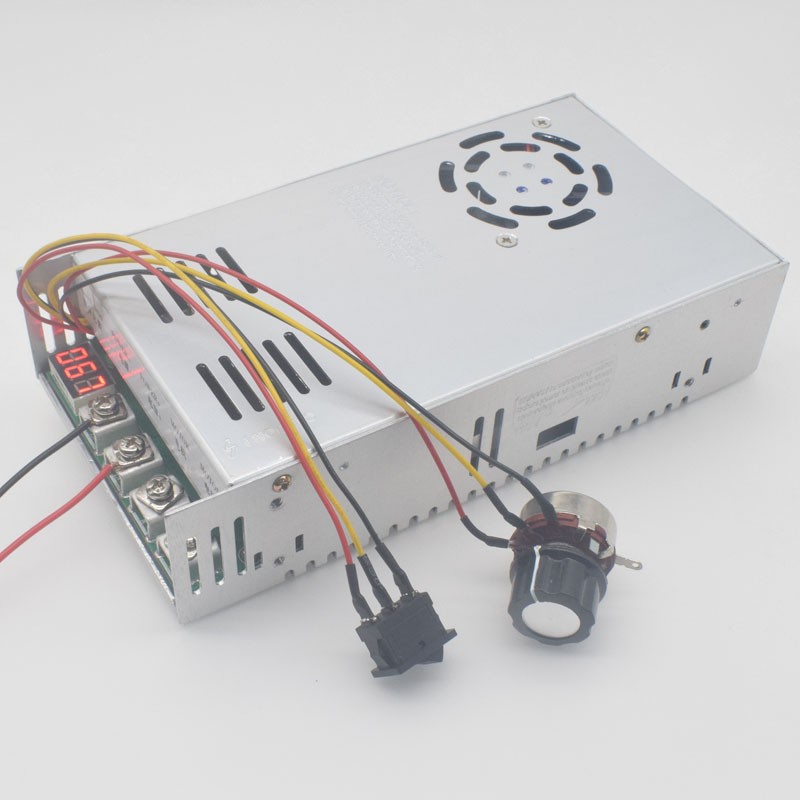

Dimmer DC 200A High Power Industrial DC 12-48V (8045)

Elektronik > Elektronik Lainnya > Dimmer DC 200A High Power Industrial DC 12-48V (8045)
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:BOOM ElectronicLihat semua produk Elektronik oleh BOOM Electronic
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Dimmer DC 200A High Power Industrial DC 12-48V (8045)

200A High Power Industrial Governor DC Motor Reducer Forward Reverse Electronic Switch 12-48V

Input voltage: DC12-48V

Output voltage: Linear under load

Instantaneous current: 200A

Continuous current: recommended within 100A

Forward and reverse rotation: bidirectional

Speed ​​regulation: potentiometer (0-5V)

Speed ​​regulation range: 0—100%

Supported motor: DC brush

Wiring method: terminal Product

net weight: 760 grams

Module size: length*width*height 215mm*113mm*50mm

potentiometer opening hole: 10mm


Note: 0-100 digital display is the percentage of speed, not the actual speed of the motor


Note: The input voltage must be divided into positive and negative,

The input voltage should be equal to the rated voltage of the motor (within 12-48V)

Such as motor rated voltage 12V input 12V motor 36V input 36V
