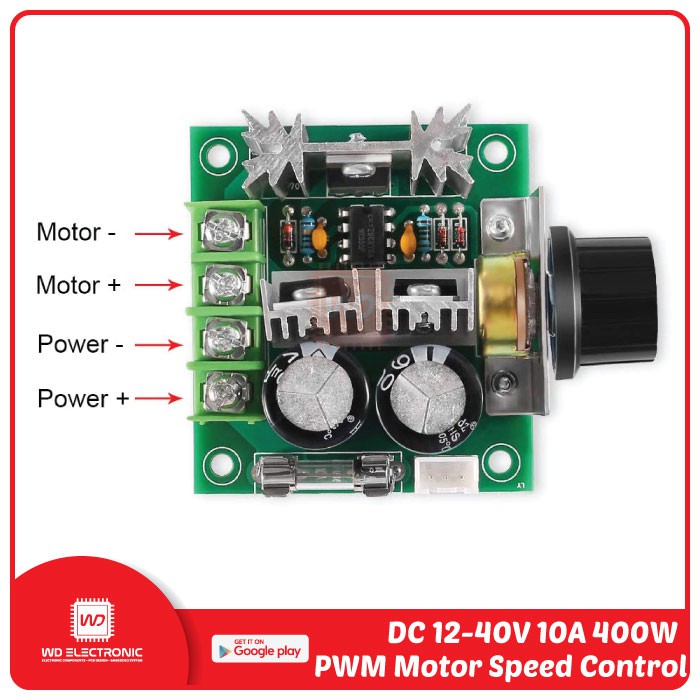

Detail DIMMER DC 12V-40V 10A 400W PWM DC SPEED CONTROL
Hi #RekanEasyWare ... EasyWare Part#: EP000770
FITUR DAN SPESIFIKASI : - Use for equipment speed regulator, light dimmer, etc - High efficiency, high torque and low heat generation. - With reverse polarity protection, high current protection - Operating Voltage: DC 12V-40V - Control Power consumption: 0.01 400W - Current: rated current 8A, maximum current 10A, static current 0.02A (Standby) - PWM Sampling rate: 10% -100% - PWM frequency: 13 kHz - Size: approx. 60 x 55 x 28mm - Mount Hole Diameter: 3.2mm - Onboard 10A quick blow glass tube fuse; Fuse size: 5 x 20mm
KELENGKAPAN : - 1pcs DC 12V-40V 10A 400W Motor Speed Controller
*deskripsi dan sebagian gambar diperoleh dari berbagai sumber di internet
