Dimmer AC 220V 5000W SCR Voltage Regulator Motor Speed Control -EM04

Detail Dimmer AC 220V 5000W SCR Voltage Regulator Motor Speed Control -EM04

Notes: This product is not suitable for all, not for electronic bivycles' battery charger, not for electric appliances with on-off switches such as 110V televisions, stereo equipments, fridges, air conditioner, and computer rice cooker, and not for induction cooker or energy-saving lamps.

Specifications:
Product Name: AC 5,000W Voltage Regulator
Product Size: 84.8 X 70 X 75mm/3.34 X 2.76 X 2.95inch
Net Weight: About 184g
Material: Aluminum Alloy Thermorytic Shell

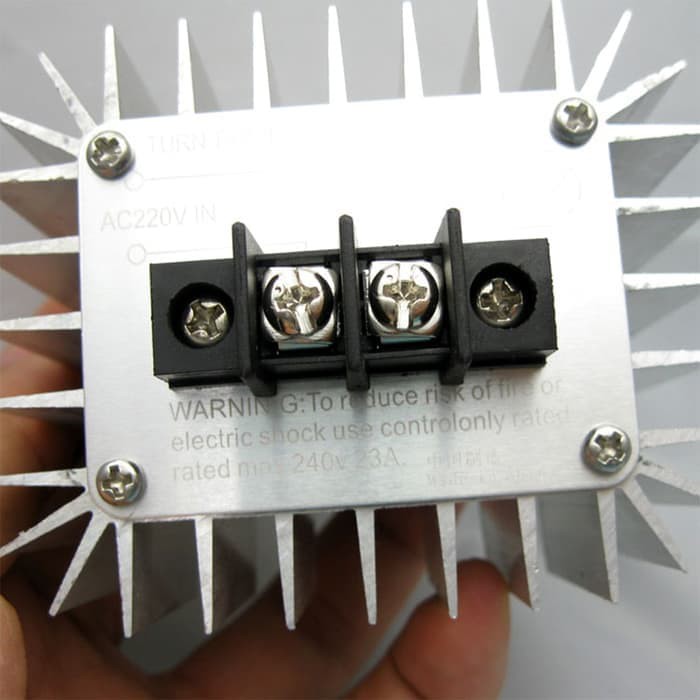

Back Wiring Diagram is engraved, 30A
Amphenol Connector, easy and convenient to install
Max. Power: 5,000W (Ultimate power when in instantaneous load impedance), it is recommended to operate when indoor temperature load impedance is 2200W; please reduce power when in long time use.
Efficiency: over 90%
Working Voltage: AC 220V
Adjustable Voltage: AC 0-220V (You can regulate to 0V when from high to low voltage and the starting adjustable voltage is around 20V when from low to high)

Notes:
Voltage regulation must be operated after it is loaded.
SCR is mainly used for resistant loads (heating wire incandescents etc.) and most single-phase AC machines (not guaranteed). Other types of loads need to be confirmed by customers.

Included:
1 X 5,000W SCR Voltage Regulator
