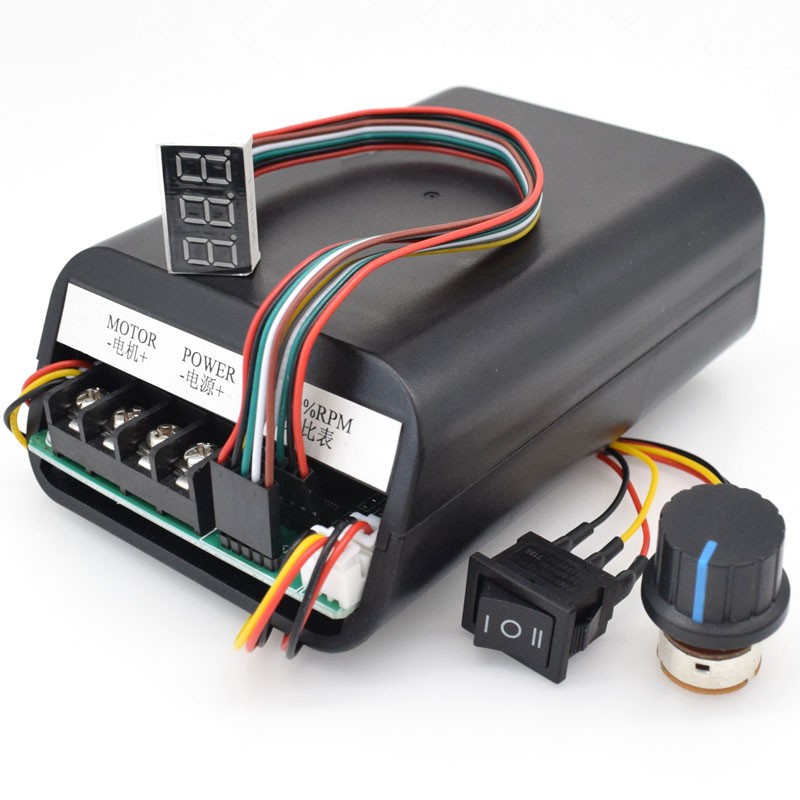

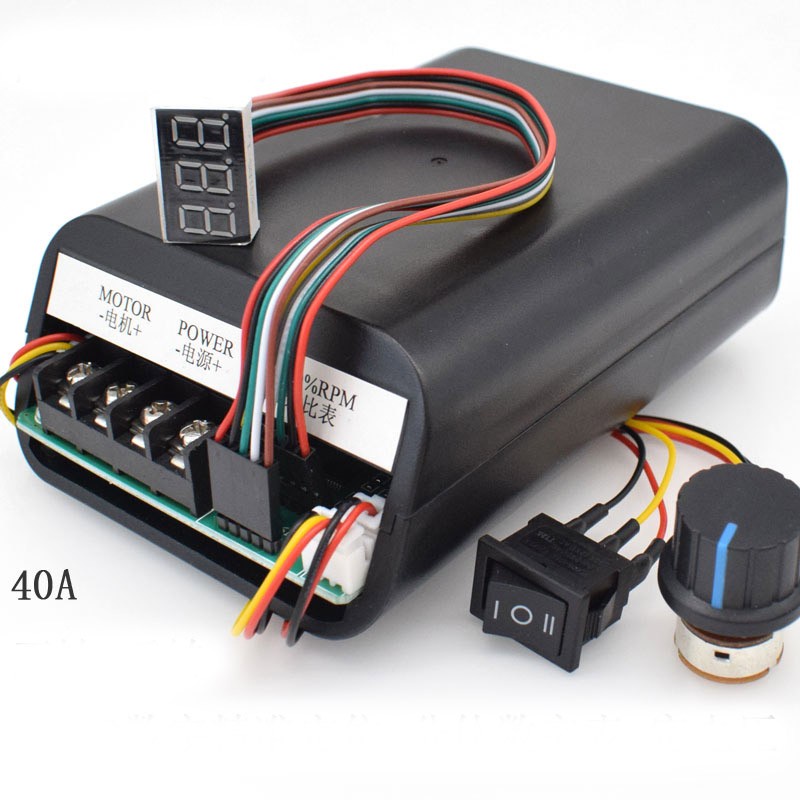

Detail Dimmer 40A with motor speed control stepless variable 10V-55V (1689)

PWM DC motor speed controller electronic stepless variable speed switch positive and negative number fixed dial 10V-55


***Product Name: Time Position EQ89 Brand: Time Position

Input voltage: DC10-55V (equal to the rated voltage of the motor) Output voltage: linear under load

Maximum current: 60A Continuous current: 40A

Speed ​​regulation type: current regulation speed regulation method: potentiometer (linear)

Support motor: DC brushed motor, forward rotation and reverse rotation: support

Speed ​​adjustment range: 0——100% Cooling fan: Yes

Wiring type: terminal Knob specification: 100K (with switch)

Wiring type: Barrier terminal product

Motherboard size: 100mm*80mm*28mm

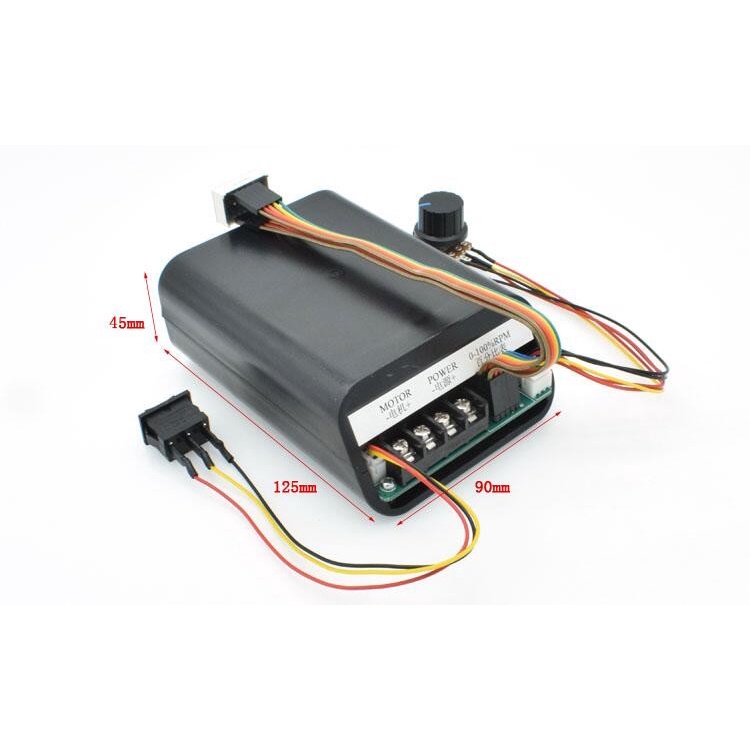

Shell size: 100mm*90mm*45mm

****CATATAN

0-100 digital display percentage meter is equivalent to the actual speed of the potentiometer dial not the motor

Input voltage must be divided positive negative

The input voltage should be equal to the rated voltage of the motor within 10-55V DC
