Dimmer 10A with motor speed control 12V24V36V48V (1687)

Elektronik > Elektronik Lainnya > Dimmer 10A with motor speed control 12V24V36V48V (1687)
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:BOOM ElectronicLihat semua produk Elektronik oleh BOOM Electronic
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Dimmer 10A with motor speed control 12V24V36V48V (1687)

Dimmer 10A width motor speed control 12V24V36V48V

voltage: DC9-60V

Output voltage: Linear under load

Input current: It is required to be larger than the working current of the motor.

Output current: The size of the load determines the continuous current: within 10A

Power conversion: 600W (power etc. and voltage * current)

Quiescent current: 0.01ma

Speed regulation type: current regulation

Speed adjustment method: linear potentiometer 270 degrees

speed adjustment range: 0-100%

working frequency: 25KHZ

Reverse polarity protection: Yes

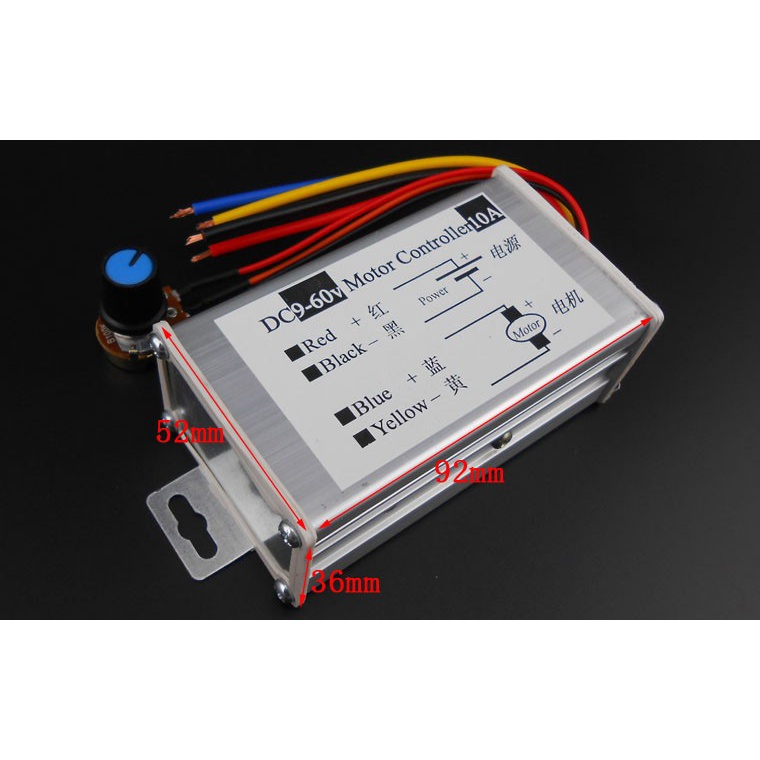

Body set size: 92mm*58mm*36mm

Gambar produk

Dimmer 10A with motor speed control 12V24V36V48V (1687)
Dimmer 10A with motor speed control 12V24V36V48V (1687)
Dimmer 10A with motor speed control 12V24V36V48V (1687)
Dimmer 10A with motor speed control 12V24V36V48V (1687)
Dimmer 10A with motor speed control 12V24V36V48V (1687)
Dimmer 10A with motor speed control 12V24V36V48V (1687)
Lihat lebih banyak informasi produk
